The WORK XTRAP S1HC in 17×6.5J, 6H-139.7, inset +38. Built to order in Japan: a genuine one-piece WORK wheel — cast as a single unit, disc and rim together — on a NORMAL rim. WORK fixes the inset for each specification on a one-piece wheel: there is no rim depth to choose and no order-inset range, so what you pick here is the complete wheel.
Before you order
-
Bolt pattern: 6H-139.7. Check it against your car before you order — a P.C.D. on its own does not confirm fitment. Send us your vehicle and year and we will check it with you.
-
No centre cap is included. On this model WORK sells the cap as an optional item, not as part of the wheel. What does come in the box is the air valve and the white disc sticker. See below.
-
Wheel nuts are not part of the wheel price. See the accessories section below for exactly what WORK does and does not supply.
What this page covers
| Model |
WORK XTRAP S1HC |
| WORK model name |
XTRAP S1HCThe name exactly as WORK prints it. We prefix the manufacturer.
|
| Construction |
1-piece |
| Diameter |
17 inch |
| Rim type |
NORMAL |
| Colour |
Black Diamond Cut Rim (BRC)WORK offers this model in one finish only.
|
| Sizes |
17×6.5JWORK builds this model in one size at this diameter.
|
| P.C.D. |
6H-139.7 |
| Centre bore |
WORK prints none for this model. Its specification table gives the bolt pattern without a centre bore. Ask us if you need the figure confirmed and we will put it to WORK. |
| Rim depth |
48 mm — at 17×6.5JWORK prints this in the size cell. On a one-piece wheel it is fixed by the casting — it is not something you choose.
|
| Inset |
Fixed by WORK per specification — +38. There is no order-inset range on this model.
|
| Hub height clearance |
WORK prints none in the specification table, because the centre cap is not part of the wheel on this model. The optional cap's own figures are in the accessories section below. |
| Special P.C.D. |
Not offered. WORK prints no special P.C.D. column and no up-charge on this model, so only the bolt pattern above can be built. |
| Custom-order plans |
None. WORK's own specification panel records no custom orders for this model. What is on this page is what WORK builds. |
| Load rating |
WORK states that XTRAP S1HC in 6H-139.7 clears JWL (VIA-P800KG) and JWL-T (VIA-T955KG).WORK prints that line for 6H-139.7 only, and it is the bolt pattern on this page.
|
| TPMS |
Not compatible. WORK marks TPMS support on the models that have it, on its own specification panel. WORK does not mark this model, so we do not fit or process TPMS sensors for it. |
| WORK catalogue code |
S1HC |
What you choose on this page
-
Size is fixed at 17×6.5J — WORK builds no other width at this diameter.
-
Colour is fixed at Black Diamond Cut Rim (BRC) — WORK offers no other finish on this model.
-
Configuration is fixed at 6H-139.7 · +38 — the bolt pattern and the inset, which WORK fixes together on a one-piece wheel.
-
Quantity — the price shown is for one wheel.
WORK's specification table — 17 inch
WORK's own table for this diameter, reproduced as printed. Every row on it is a selectable item above.
The price for each of these is the one shown in the picker above, per wheel, in USD.
What comes with the wheel
Included — WORK's own included-items line, as printed:
- Air valve — one per wheel, WORK part V23C.
- Disc sticker — one, white.
Optional — WORK's own Optional Items box:
-
Centre cap (buff), WORK part №120287. WORK notes that the cap cannot be fitted on some vehicles, and that its internal dimensions are a hub diameter of 106 mm and a hub height clearance of 35 mm. Those are the CAP's figures — WORK prints no centre bore for the wheel itself on this model. Ask us and we will quote it with the wheels.
Wheel nuts are not included. WORK lists the WORK LOCK NUT SET as an option on its own parts panel for this model, and its included-items line does not carry it. Ask us and we will quote it with the wheels.
Repair parts — WORK supplies these separately, by part number. Ask us and we will quote them with the wheels:
- №180010 — Air valve (V23C).
- №130009 — Disc sticker (white).
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.

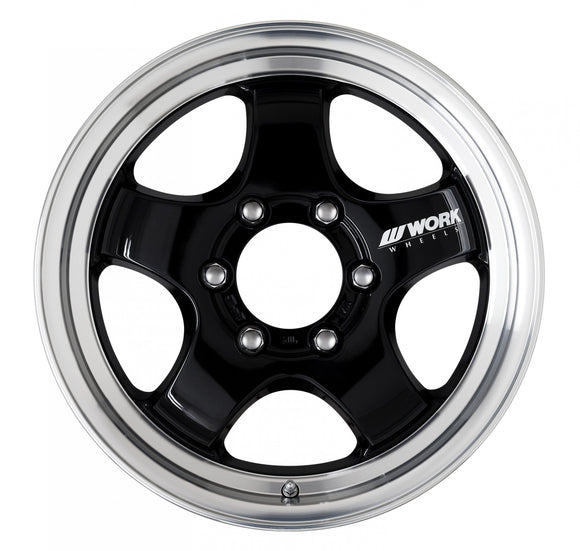

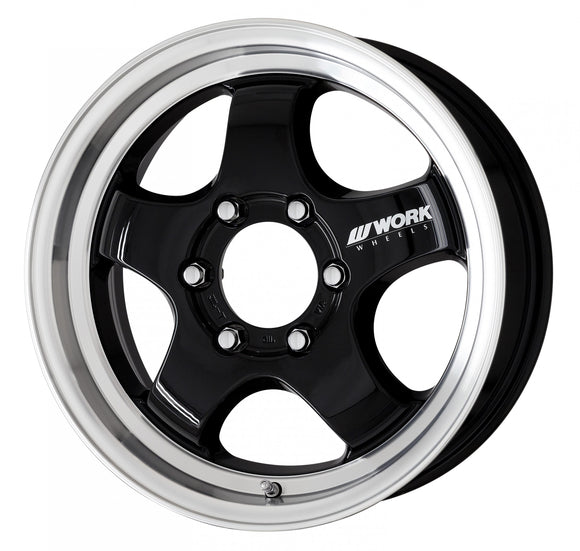

- Photographs are WORK's own. Screen colour is not a colour match — ask us if the exact finish matters.
