The WORK XTRAP DTHC in 15×6.0J, 6H-139.7, inset +43 or +33. Built to order in Japan: a genuine one-piece WORK wheel — cast as a single unit, disc and rim together — on a NORMAL rim. WORK fixes the inset for each specification on a one-piece wheel: there is no rim depth to choose and no order-inset range, so what you pick here is the complete wheel.
Before you order
-
15×6.0J is two different wheels. WORK builds it in 6H-139.7 at +43 and +33, at the same price and on the same rim. The inset is what decides where the wheel sits in the arch — and it also changes the clearance behind the centre cap. Pick the one you want in the Configuration selector above; they are separate items and we order exactly what you choose.
-
Bolt pattern: 6H-139.7. Check it against your car before you order — a P.C.D. on its own does not confirm fitment. Send us your vehicle and year and we will check it with you.
- The centre cap follows the disc: Matte Black (MBL) takes the black cap, Cut Clear (MSP) takes the silver one. WORK states this itself.
-
Wheel nuts are not part of the wheel price. See the accessories section below for exactly what WORK does and does not supply.
What this page covers
| Model |
WORK XTRAP DTHC |
| WORK model name |
XTRAP DTHCThe name exactly as WORK prints it. We prefix the manufacturer.
|
| Construction |
1-piece |
| Diameter |
15 inch |
| Rim type |
NORMAL |
| Colours |

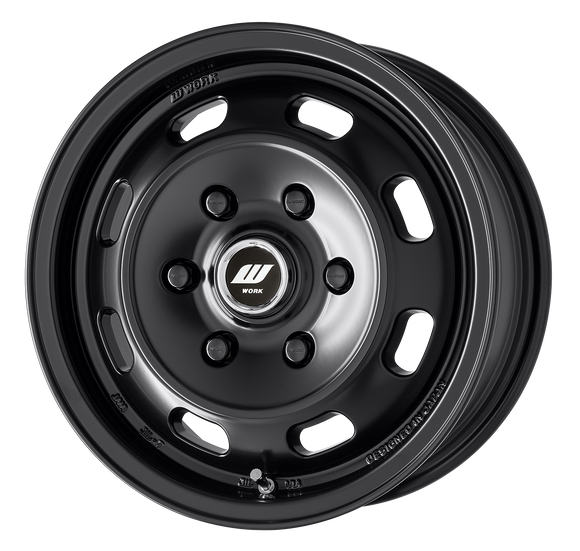

Matte Black (MBL)

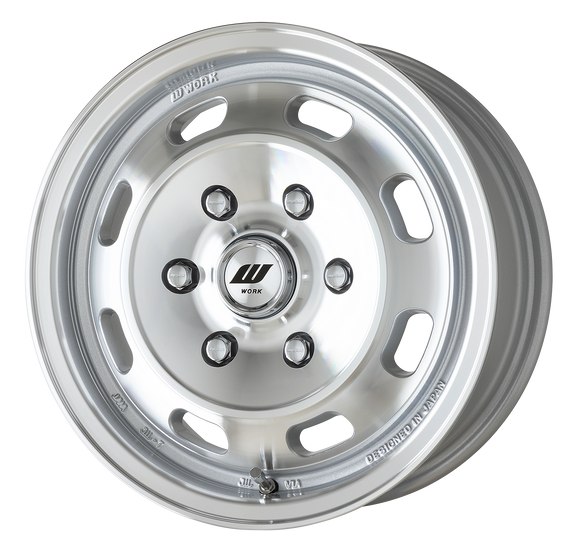

Cut Clear (MSP)WORK prices the finishes differently — select a colour above and the price follows it.
|
| Sizes |
15×6.0JWORK builds this model in one size at this diameter.
|
| P.C.D. |
6H-139.7 |
| Centre bore |
106 mm |
| Rim depth |
35 mm — at 15×6.0JWORK prints this in the size cell. On a one-piece wheel it is fixed by the casting — it is not something you choose.
|
| Inset |
Fixed by WORK per specification — +43, +33. There is no order-inset range on this model.
|
| Hub height clearance |
38 mm — at 15×6.0J, 6H-139.7 · +43
48 mm — at 15×6.0J, 6H-139.7 · +33WORK prints this in brackets beside the inset. It is the clearance behind the centre cap, not a fitment figure — and on this model it moves with the inset, because a one-piece wheel's rim depth is fixed and the inset changes at the mounting face.
|
| Special P.C.D. |
Not offered. WORK prints no special P.C.D. column and no up-charge on this model, so only the bolt pattern above can be built. |
| Custom-order plans |
None. WORK's own specification panel records no custom orders for this model. What is on this page is what WORK builds. |
| Rim construction |
WFT — WORK Flowforming Technology. WORK marks this model with the WFT badge on its own specification panel. |
| Load rating |
WORK states that XTRAP DTHC clears JWL (VIA-P800KG) and JWL-T (VIA-T955KG). |
| Mounting bolts |
WORK marks this model M14 on its own specification panel — the standard bolt pattern takes M14 mounting bolts. |
| TPMS |
WORK marks this model TPMS compatible on its own specification panel and refers to the TPMS section of its catalogue for the processing detail. Tell us at the time of order if you need TPMS and we will confirm the exact conditions and any charge with WORK in writing before anything is built. |
| WORK catalogue code |
DTHC |
What you choose on this page
-
Size is fixed at 15×6.0J — WORK builds no other width at this diameter.
-
Colour — the finishes are priced differently and the price shown follows your choice.
-
Configuration — the bolt pattern and the inset. On a one-piece wheel WORK fixes these together, so this is one choice, not two.
-
Quantity — the price shown is for one wheel.
WORK's specification table — 15 inch
WORK's own table for this diameter, reproduced as printed. Every row on it is a selectable item above.
The price for each of these is the one shown in the picker above, per wheel, in USD.
What comes with the wheel
Included — WORK's own included-items line, as printed:
- Centre cap — one per wheel.
- Air valve — one per wheel, WORK part V33C.
Wheel nuts are not included. WORK lists the WORK LOCK NUT SET as an option on its own parts panel for this model, and its included-items line does not carry it. Ask us and we will quote it with the wheels.
Repair parts — WORK supplies these separately, by part number. Ask us and we will quote them with the wheels:
- №120299 — Centre cap (silver).
- №120300 — Centre cap (black).
- №180048 — Air valve (V33C).
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
- Photographs are WORK's own. Screen colour is not a colour match — ask us if the exact finish matters.
