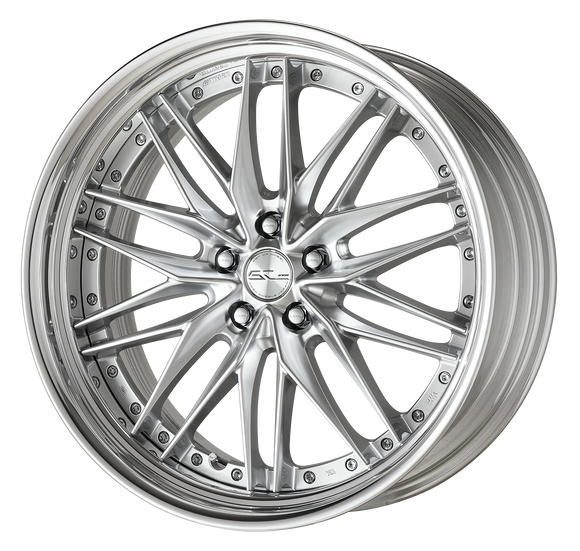

WORK SCHWERT QUELL2 Grimit Bright Silver – 21 inch STEP RIM wheel shown, finish reference for 22 inch

SKU: WORK-SWQL2-2P-22-GBS-8.5-SR-ADISK

WORK SCHWERT QUELL2 22 Inch STEP RIM

$942.50 $1,139.29 Save $196.79

Shipping calculated at checkout

Width: 22×8.5J
Colour: Grimit Bright Silver (GBS)
Disk: A-Disk · Standard

The WORK SCHWERT QUELL2 in 22 inch STEP RIM, built to order in Japan. This is a genuine two-piece WORK wheel: you choose the width, the disc colour and the disk here, then tell us the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

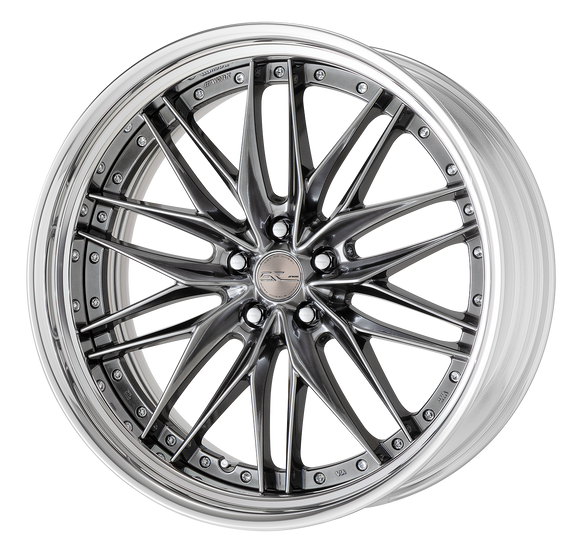

WORK photographs Glim Black at this exact size and rim type. The Grimit Bright Silver photo is WORK’s 21 inch wheel, shown here as a finish reference.

What this page covers

Model WORK SCHWERT QUELL2
Construction 2-piece
Diameter 22 inch
Rim type STEP RIM
Disc colours Grimit Bright Silver (GBS), Glim Black (GTK)
Widths 22×8.5J to 22×12.5J (9 widths)
Disk types A-Disk (STANDARD), O-Disk (DEEP RIM)
P.C.D. A-Disk: 5H-114.3(73.3), 5H-120(60)
O-Disk: 5H-114.3(73.3), 5H-120(60)
Special P.C.D. 5H-108 to 5H-120.65 — WORK custom order, from ¥11,000 per wheel
Hub height clearance A-Disk 52 mm, O-Disk 37 mm
Load rating JWL-P840KG
Air valve V24C
Rim finish Buff anodised (standard)
WORK catalogue code SWM2-SR・HNH

What you choose on this page

  • Width, disc colour and disk — in the variant picker above. The disk sets the face shape, the hub clearance and the inset window.
  • Inset — enter it in the inquiry form below, using the ranges below. Any inset inside your disk's range can be built.
  • Quantity — the price shown is for one wheel.

Order inset ranges — 22 inch STEP RIM

WORK builds these wheels to your inset rather than to fixed steps. Choose your disk above, then name any inset within that disk's range for your width. The rim depth beneath each range is what that inset produces.

Width A-Disk — STANDARD
hub height clearance 52 mm
5H-114.3(73.3), 5H-120(60) 		O-Disk — DEEP RIM
hub height clearance 37 mm
5H-114.3(73.3), 5H-120(60)
22×8.5J +20 to -10rim depth 52–82 mm +35 to +5rim depth 52–82 mm
22×9.0J +26 to -16rim depth 52–94 mm +41 to -1rim depth 52–94 mm
22×9.5J +32 to -22rim depth 52–106 mm +47 to -7rim depth 52–106 mm
22×10.0J +39 to -29rim depth 52–120 mm +54 to -14rim depth 52–120 mm
22×10.5J +45 to -35rim depth 52–132 mm +60 to -20rim depth 52–132 mm
22×11.0J +51 to -41rim depth 52–144 mm +66 to -26rim depth 52–144 mm
22×11.5J +58 to -48rim depth 52–158 mm +73 to -33rim depth 52–158 mm
22×12.0J +64 to -54rim depth 52–170 mm +79 to -39rim depth 52–170 mm
22×12.5J +58 to -60rim depth 64–182 mm +73 to -45rim depth 64–182 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one centre cap and one air valve (V24C).
  • The Glim Black disc takes a matte grey centre cap.
  • A buff-anodised rim is the standard finish.
  • Below 72 mm of rim depth the disc sits proud of the rim mating face — and WORK adds that there is no protrusion past the rim flange.
  • Rated JWL-P840KG (Japanese passenger-car standard).
  • Special P.C.D. 5H-108 to 5H-120.65 is available as a WORK custom order, from ¥11,000 per wheel (about US$65) on top of the listed price.
  • Please ask us about the nuts or bolts you intend to use.
  • WORK offers free TPMS processing on this model, with no size or specification excluded. Tell us if you need TPMS and we will confirm the sensor for your exact specification with WORK.
Fitment. Please choose your size and offset at your own discretion. Wheel regulations differ by country, and how far a wheel sits outside the fender depends on ride height and personal preference. We are glad to advise — ask us before you order — but the final choice of size and offset rests with the customer. Any vehicle examples shown are reference sizes only.

Quotation and fitment inquiry

Tell us the specification you are considering and the vehicle it is for. Kurumaya Tokyo JAPAN Co. verifies fitment with WORK before confirming an order. This form is an inquiry, not an order: nothing is added to your cart.

Selected on this page

WORK SCHWERT QUELL2 22 Inch STEP RIM

22×8.5J / Grimit Bright Silver (GBS) / A-Disk · Standard

SKU: WORK-SWQL2-2P-22-GBS-8.5-SR-ADISK

Your contact details

WORK wheels are built to order. Our recommendations are guidance only and are mostly based on the vehicle in its original (OEM) setup. We may be able to confirm fitment with a big brake kit, but wide-body and coilover setups are difficult for us to confirm. The final choice of specification rests with the customer, and an order cannot be cancelled once production has started. Import duties will be charged separately at the time of import.
