WORK SCHWERT BRUNNEN LX 20 inch – Black

SKU: WORK-SWBLX-1P-20-BLK-8.5-45-1143

WORK SCHWERT BRUNNEN LX 20 Inch – All Colours, Insets and P.C.D.

$481.00 $581.43 Save $100.43

Shipping calculated at checkout

Colour: Black (BLK)
Inset: +45 · 5H-114.3 · hub clearance 37 mm

The WORK SCHWERT BRUNNEN LX in 20 inch — WORK's one-piece SCHWERT, cast in Japan and finished to order. Everything you need to specify is in the picker above: colour, width, and the inset with its P.C.D., so you can order without asking us first.

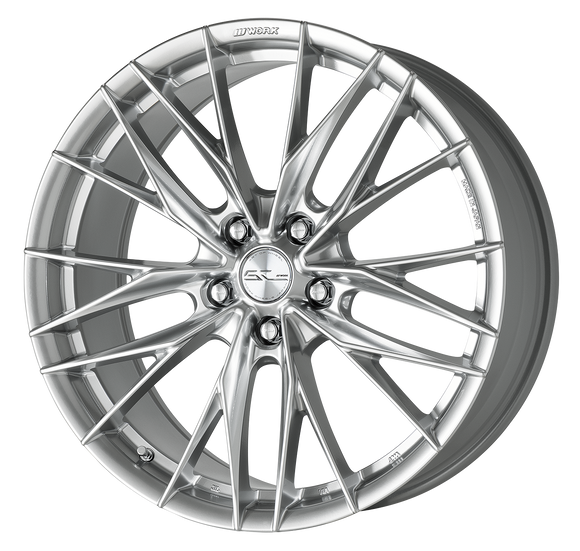

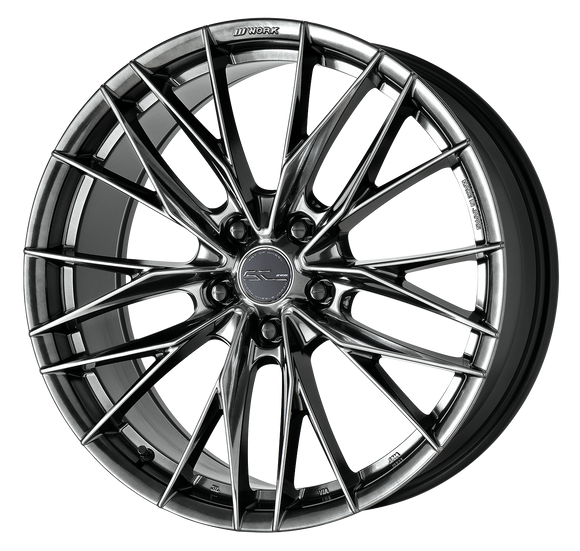

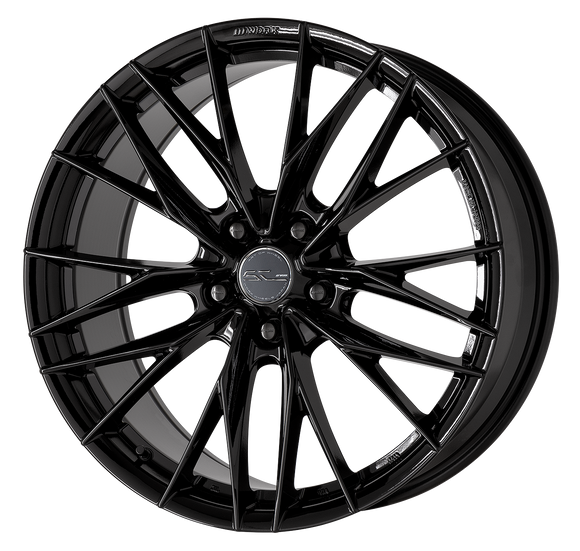

WORK photographs Black, Grimit Bright Silver, Grimit Black at this exact size and rim type.

What this page covers

Model WORK SCHWERT BRUNNEN LX
Construction 1-piece, NORMAL
Diameter 20 inch
Colours Black (BLK), Grimit Bright Silver (GBS), Grimit Black (GTK)
Width 20×8.5J — WORK offers no other width at this diameter, so it is fixed on this page
P.C.D. 5H-114.3(73.3), 5H-120(60)
Special P.C.D. Not offered on the BRUNNEN LX
Load rating JWL-P720KG
Air valve V35C — black V35K2 with the Black and Grimit Black discs
WORK catalogue code SWB-LX

Inset and hub height clearance

WORK builds the BRUNNEN LX to set insets rather than to a range. Each inset belongs to a P.C.D., so both are shown together in the picker. The figure in brackets is the hub height clearance that inset gives you.

Width P.C.D. Inset Hub height clearance
20×8.5J 5H-114.3(73.3) +45 37 mm
20×8.5J 5H-114.3(73.3) +38 44 mm
20×8.5J 5H-120(60) +42 40 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan.
  • Each wheel comes with one centre cap and one air valve (V35C). With the Black and Grimit Black discs the cap and valve are black (V35K2).
  • Because of the disc design, the disc sits 3 mm past the rim flange at 20 inch.
  • Rated JWL-P720KG (Japanese passenger-car standard).
  • The standard P.C.D. has 60° taper seats.
  • Please ask us about the nuts or bolts you intend to use.
  • TPMS processing is free of charge.
