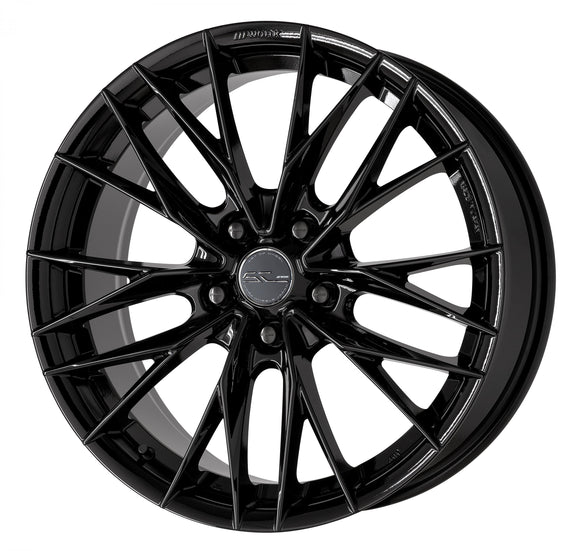

WORK SCHWERT BRUNNEN LX Black – 19 inch wheel shown, finish reference for 18 inch

SKU: WORK-SWBLX-1P-18-BLK-7.5-48-1143

WORK SCHWERT BRUNNEN LX 18 Inch – All Colours, Insets and P.C.D.

$357.50 $432.14 Save $74.64

Shipping calculated at checkout

Width: 18×7.5J
Colour: Black (BLK)
Inset: +48 · 5H-114.3 · hub clearance 41 mm

The WORK SCHWERT BRUNNEN LX in 18 inch — WORK's one-piece SCHWERT, cast in Japan and finished to order. Everything you need to specify is in the picker above: colour, width, and the inset with its P.C.D., so you can order without asking us first.

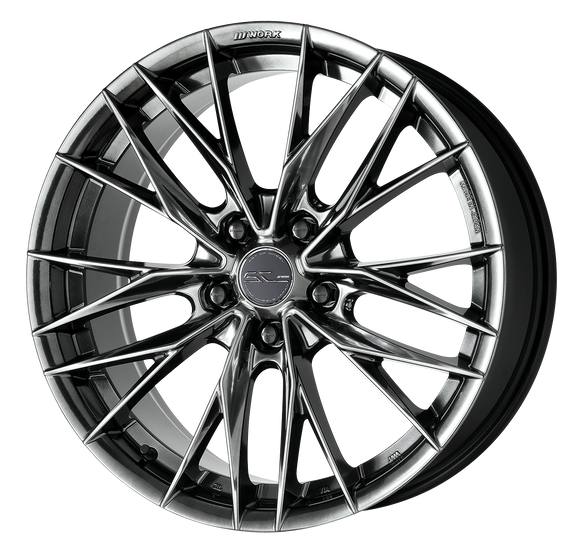

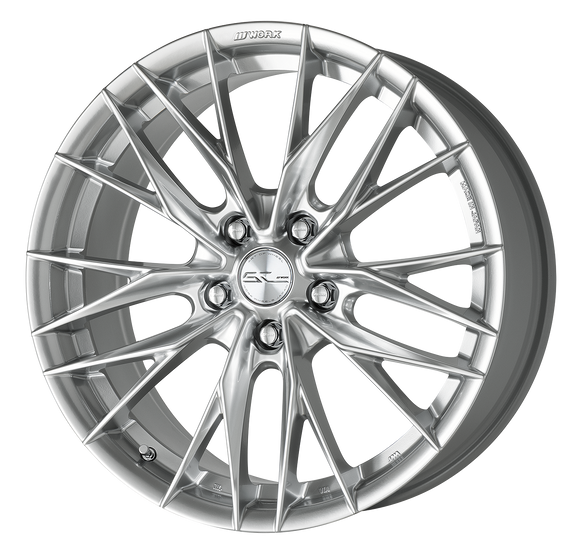

The Black photo is WORK’s 19 inch wheel, shown here as a finish reference. The Grimit Bright Silver photo is WORK’s 19 inch wheel, shown here as a finish reference. The Grimit Black photo is WORK’s 19 inch wheel, shown here as a finish reference.

What this page covers

Model WORK SCHWERT BRUNNEN LX
Construction 1-piece, NORMAL
Diameter 18 inch
Colours Black (BLK), Grimit Bright Silver (GBS), Grimit Black (GTK)
Width 18×7.5J and 18×8.0J
P.C.D. 5H-114.3(73.3), 5H-120(60)
Special P.C.D. Not offered on the BRUNNEN LX
Load rating JWL-P690KG
Air valve V35C — black V35K2 with the Black and Grimit Black discs
WORK catalogue code SWB-LX

Inset and hub height clearance

WORK builds the BRUNNEN LX to set insets rather than to a range. Each inset belongs to a P.C.D., so both are shown together in the picker. The figure in brackets is the hub height clearance that inset gives you.

Width P.C.D. Inset Hub height clearance
18×7.5J 5H-114.3(73.3) +48 41 mm
18×7.5J 5H-114.3(73.3) +38 51 mm
18×8.0J 5H-114.3(73.3) +38 57 mm
18×8.0J 5H-120(60) +40 56 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan.
  • Each wheel comes with one centre cap and one air valve (V35C). With the Black and Grimit Black discs the cap and valve are black (V35K2).
  • Because of the disc design, the disc sits 3 mm past the rim flange at 18 inch.
  • Rated JWL-P690KG (Japanese passenger-car standard).
  • The standard P.C.D. has 60° taper seats.
  • Please ask us about the nuts or bolts you intend to use.
  • TPMS processing is free of charge.
