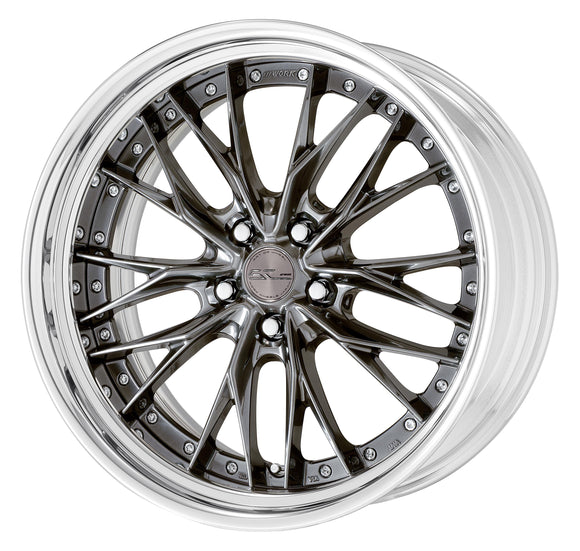

WORK SCHWERT BRUNNEN 20 inch STEP RIM – Brilliant Silver Black

SKU: WORK-SWBRN-2P-20-BSB-8.0-SR

WORK SCHWERT BRUNNEN 20 Inch STEP RIM – All Colours and Widths

$656.50 $793.57 Save $137.07

Shipping calculated at checkout

Width: 20×8.0J
Colour: Brilliant Silver Black (BSB)

The WORK SCHWERT BRUNNEN in 20 inch STEP RIM, built to order in Japan. This is a genuine two-piece WORK wheel: you choose the width and the disc colour here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

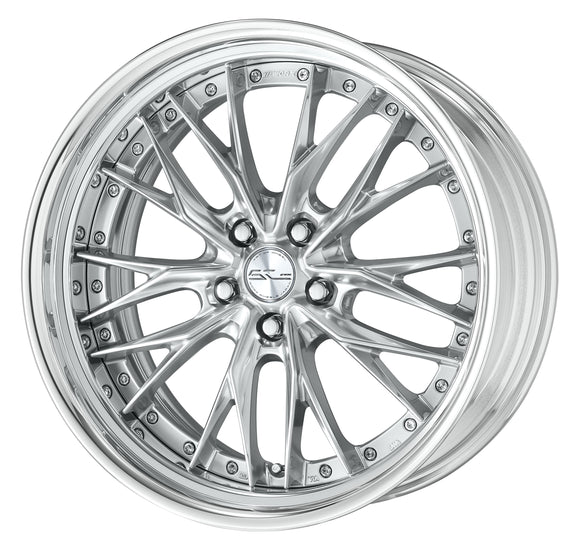

WORK photographs Brilliant Silver Black, Silky Rich Silver at this exact size and rim type.

What this page covers

Model WORK SCHWERT BRUNNEN
Construction 2-piece
Diameter 20 inch
Rim type STEP RIM
Disc colours Brilliant Silver Black (BSB), Silky Rich Silver (SRS)
Widths 20×8.0J to 20×12.5J (10 widths)
Disk types A-Disk (STANDARD), O-Disk (DEEP RIM)
P.C.D. A-Disk: 5H-114.3(73.3), 5H-120(60)
O-Disk: 5H-100(60), 5H-114.3(73.3), 5H-120(60)
Special P.C.D. 5H-100 to 5H-120.65 — WORK custom order, from ¥11,000 per wheel
Hub height clearance A-Disk 51 mm, O-Disk 36 mm
Load rating JWL-P720KG
Air valve V24C
Rim finish Buff anodised (standard)
WORK catalogue code SWB-SR・HNH

What you choose on this page

  • Disc colour and width — in the variant picker above.
  • Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Order inset ranges — 20 inch STEP RIM

WORK builds these wheels to your inset rather than to fixed steps. Pick a disk type, then any inset within that disk's range for your width. The rim depth beneath each range is what that inset produces.

Width A-Disk — STANDARD
hub height clearance 51 mm
5H-114.3(73.3), 5H-120(60) 		O-Disk — DEEP RIM
hub height clearance 36 mm
5H-100(60), 5H-114.3(73.3), 5H-120(60)
20×8.0J +35 to +8rim depth 51–78 mm +50 to +23rim depth 51–78 mm
20×8.5J +42 to +1rim depth 51–92 mm +57 to +16rim depth 51–92 mm
20×9.0J +48 to -5rim depth 51–104 mm +63 to +10rim depth 51–104 mm
20×9.5J +54 to -11rim depth 51–116 mm +69 to +4rim depth 51–116 mm
20×10.0J +61 to -18rim depth 51–130 mm +76 to -3rim depth 51–130 mm
20×10.5J +67 to -24rim depth 51–142 mm +82 to -9rim depth 51–142 mm
20×11.0J +73 to -30rim depth 51–154 mm +85 to -15rim depth 54–154 mm
20×11.5J +80 to -37rim depth 51–168 mm +85 to -22rim depth 61–168 mm
20×12.0J +85 to -43rim depth 52–180 mm +85 to -28rim depth 67–180 mm
20×12.5J +78 to -49rim depth 65–192 mm +85 to -34rim depth 73–192 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one centre cap and one air valve (V24C).
  • The Brilliant Silver Black disc takes a matte grey centre cap.
  • A buff-anodised rim is the standard finish.
  • Below 54 mm of rim depth the disc sits proud of the rim flange — though WORK notes that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • Below 73 mm of rim depth the disc sits proud of the rim mating face.
  • Rated JWL-P720KG (Japanese passenger-car standard).
  • Special P.C.D. 5H-100 to 5H-120.65 is available as a WORK custom order, from ¥11,000 per wheel (about US$65) on top of the listed price.
  • Please ask us about the nuts or bolts you intend to use.
  • TPMS processing is free of charge.
