The WORK Seeker FD in 16 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width and the disc colour here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that specification.
A note on WORK's own words for this rim. The heading over WORK's price table for this size reads 2PIECE/REVERSE, and the RIM row of WORK's specification panel says REVERSE. WORK's index badges the three sizes 18SR/17SR/16SR, and WORK's own gallery captions for these photographs read ■リム：STEP RIM(形状). REVERSE is WORK's word for a step rim — the same usage as on the EMOTION D9R — so this page is titled STEP RIM. We are not choosing between the two words quietly: both are WORK's, and they describe the same rim.
Protrusion: WORK prints no warning at this size. WORK prints a rim-depth protrusion warning on the 18 and 17 inch tables of this model, and prints none at all on the 16 inch table — no threshold and no tolerance sentence. We state none, and we do not borrow the figure from a larger size, because a protrusion threshold is a property of that size's disc and rim, not of the model.
Four-bolt fitment — WORK builds the one disk on this size in 4H-100(60) and nothing else. Every listed build on this page is 4×100: WORK prints no 5H-100 and no 5H-114.3 disc at this diameter on this model, so a five-bolt fitment is not something you can choose in the picker. WORK's special-P.C.D. row for this size does print a five-bolt range — 5H-98–120 at ¥8,800 up per wheel — so a five-bolt P.C.D. can be put to WORK as a custom order, but that is a chargeable custom order WORK accepts case by case, not a listed build, and we confirm it with WORK in writing before we take the order. If your car is five-bolt, ask us first, or look at the 17 and 18 inch sizes of this model, which WORK does list in five-bolt P.C.D.s.

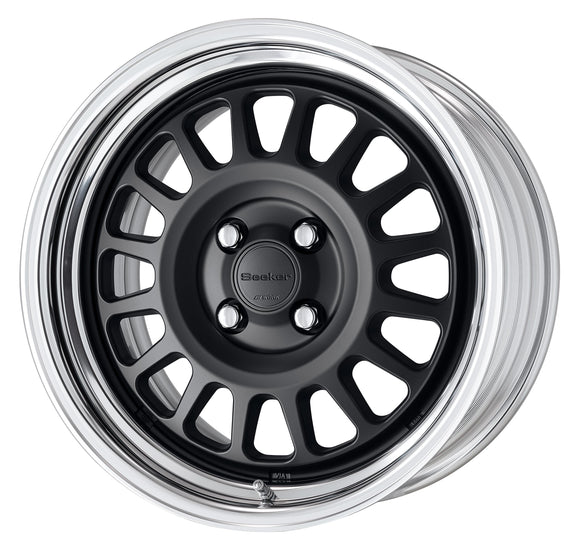

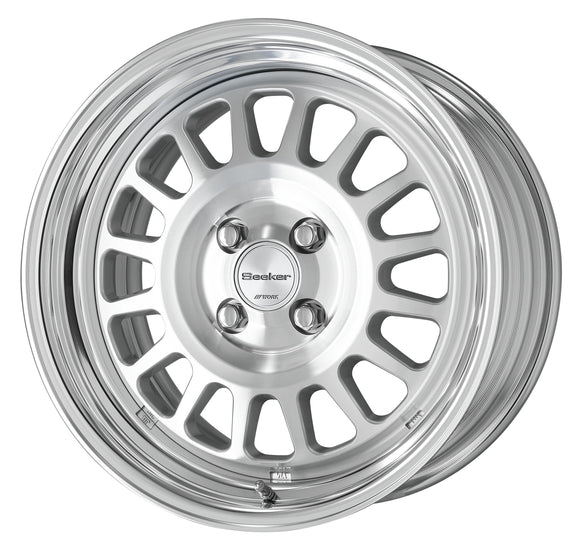

Both photographs on this page are WORK's own, of the 16 inch wheel sold here, in the finish each one names: Matte Black and Cut Clear. WORK's own gallery captions give the build in every shot as STEP RIM with the standard buff-anodised rim; the matte black shots carry the matte black centre cap, which is WORK's select option at the same price rather than the standard cap. Nothing here is borrowed from another size, and no slide in WORK's gallery for this model is marked (カスタム) / (Custom), so every finish shown is one WORK builds as standard.
What this page covers
| Model |
WORK Seeker FD |
| Construction |
2-piece |
| Diameter |
16 inch |
| Rim type |
STEP RIM — WORK prints 2PIECE/REVERSE over this table and badges the size 16SR
|
| Disc colours |
Matte Black (MBL), Cut Clear (MSP)Cut Clear is ¥2,200 more than Matte Black at every width on this page — WORK's own price list.
|
| Widths |
16×6.0J to 16×9.0J (7 widths, every width in both colours) |
| Disk types |
O-Disk (DEEP RIM) |
| P.C.D. (centre bore) |
O-Disk: 4H-100(60) |
| Special P.C.D. |
4H-98–114.3 and 5H-98–120 — WORK custom order, ¥8,800 up per wheel (about US$62.86 at our standard conversion; the converted amount is confirmed on quotation) |
| Hub height clearance |
O-Disk (DEEP RIM): 34 mm |
| Load rating |
WORK prints no JWL rating for this size. The 18 and 17 inch tables of this model each carry their own load-rating sentence; this size's note block carries none, and we neither state a rating here nor borrow the figure printed for another size |
| Air valve |
V41C, one per wheel, included |
| Rim finish |
Buff anodised (standard) |
| Centre cap |
Included — one per wheel |
| WORK catalogue code |
SFD・HRN |
What you choose on this page
-
Width and disc colour — in the picker above. WORK builds no concave variants of the Seeker FD, so there is no concave choice to make. Note the colour pricing: Cut Clear (MSP) costs ¥2,200 more than Matte Black (MBL) at every width, which is WORK's own price list for the two finishes, not an error.
-
Disk type and inset — these are NOT variant options: tell us in the order notes, using the table below. Any inset inside a printed range can be built.
-
Special P.C.D. — a custom order, in the order notes, at ¥8,800 up per wheel. See the Notes.
-
Quantity — the price shown is for one wheel.
Order inset ranges, 16 inch STEP RIM
Included with every wheel — and what is optional
Included — built from WORK's own accessories line for this size, ●付属品：センターキャップ/1個・エアバルブ/1個(V41C):
- One centre cap per wheel.
- One air valve per wheel, WORK part V41C.
- A buff-anodised rim is the standard finish (WORK: ※バフアルマイトリムが標準となります。).
Optional / Sold Separately — WORK's Optional Items box for this spread. Yen figures are WORK's list prices; we convert them on quotation.
- Matte black centre cap — same price as the standard cap (no surcharge; ask for it in the order notes). This is the cap WORK photographs on every matte black wheel in its own gallery.
- ESS centre cap — ¥4,950 per cap
- Black centre cap with the W emblem — ¥3,850 per cap
- Red centre cap with the W emblem — ¥3,850 per cap
- Silver centre cap with the W emblem — ¥3,850 per cap
- Black air valve — ¥550 per valve on top of the listed price
Ask us and we will add any of these to the order. WORK also lists these caps and valves as repair parts by part number; ask us if you need a replacement rather than an upgrade.
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
- Each wheel comes with one centre cap and one air valve (V41C). A buff-anodised rim is the standard finish.
-
WORK prints no JWL load rating for the 16 inch Seeker FD. The 18 and 17 inch tables of this model each carry their own load-rating sentence; the 16 inch note block carries none. We therefore state no rating here, and we do not repeat the figure WORK prints for a larger size, because a load rating belongs to the size and rim type it is printed under. Ask us if you need a rating confirmed for registration.
-
WORK prints no rim-depth protrusion warning at 16 inch on this model — no threshold and no manufacturing-tolerance sentence. The 18 and 17 inch tables each carry one; this table does not, and we do not borrow it.
-
Special P.C.D. 4H-98–114.3 and 5H-98–120 is a WORK custom order at ¥8,800 up per wheel on top of the listed price — that is WORK's own yen figure for this size; we confirm the converted amount on quotation. The range is the one WORK prints on the 16 inch table and nowhere else on this spread. WORK asks that you check the nuts or bolts you intend to use with a special P.C.D. before ordering (※特殊P.C.D.時、ご使用になるナット、ボルトに関してはお問合せください。) — tell us the car and we will put it to WORK with the order.
-
TPMS — not offered at this size. WORK's sentence on this spread is TPMS対応無料加工(16inch除く) — free TPMS processing, 16 inch excluded. That exclusion is WORK's own printed word for exactly this diameter, so we do not offer TPMS processing on this page, whatever the model-level badge says. If you need TPMS, ask us about the 17 and 18 inch sizes of this model.
- WORK offers this model through its Custom Order Plan: rim arrangement, semi-order colour, special P.C.D., Colorism, Colorism Clear, Copper Clear, Imperial Gold, powder coat and rim laser tattoo. We quote no price for any of them here — ask us and we will get WORK's figure for the plan you want.
- WORK notes that at 16 inch the rim laser tattoo custom cannot be done at every position (16inchは照射位置によってはレーザータトゥー（リム）には対応しておりません。). Ask us before committing to a rim tattoo at this size.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
