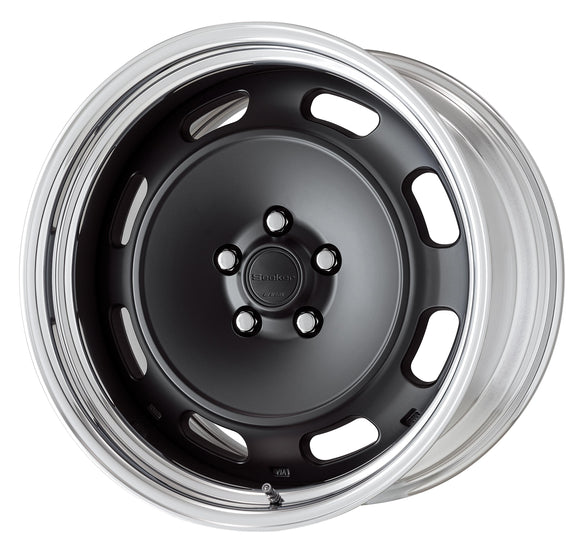

WORK Seeker DT 18 inch STEP RIM, Matte Black (MBL), buff-anodised rim — WORK factory photo

SKU: WORK-SKDT-2P-18-MBL-7.5-SR

WORK Seeker DT 18 Inch STEP RIM – All Colours and Widths

$507.00 $612.86 Save $105.86

Shipping calculated at checkout

Width: 18×7.5J
Colour: Matte Black (MBL)

The WORK Seeker DT in 18 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width and the disc colour here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that specification.

A note on WORK's own words for this rim. The heading over WORK's price table for this size reads 2PIECE/REVERSE, and the RIM row of WORK's specification panel says REVERSE. WORK's index badges the three sizes 18SR/17SR/16SR, and WORK's own gallery captions for these photographs read ■リム：STEP RIM(形状). REVERSE is WORK's word for a step rim — the same usage as on the EMOTION D9R — so this page is titled STEP RIM. We are not choosing between the two words quietly: both are WORK's, and they describe the same rim.

Protrusion warning — Seeker DT 18 inch. WORK prints this warning at a rim depth of 47 mm. Unlike every other Seeker table that prints this warning, WORK writes it here without 未満 ("less than") — the sentence names the 47 mm depth itself rather than everything below it. We reproduce WORK's wording exactly as printed and do not widen it into a threshold; ask us and we will put the question to WORK before your wheels are built. The rim depth of every inset is printed under it in the table below, and 47 mm is the shallowest depth WORK prints at this diameter. WORK adds, in the same note, that even at the rim depths above this the disc may still protrude very slightly past the rim flange, within manufacturing tolerance.
WORK's own sentence: ※リム深さ47mmはリムフランジよりディスクが突出しますのでご注意ください。 ただし、上記のリム深さであっても誤差の為、リムフランジよりわずかにディスクが突出する場合があります。

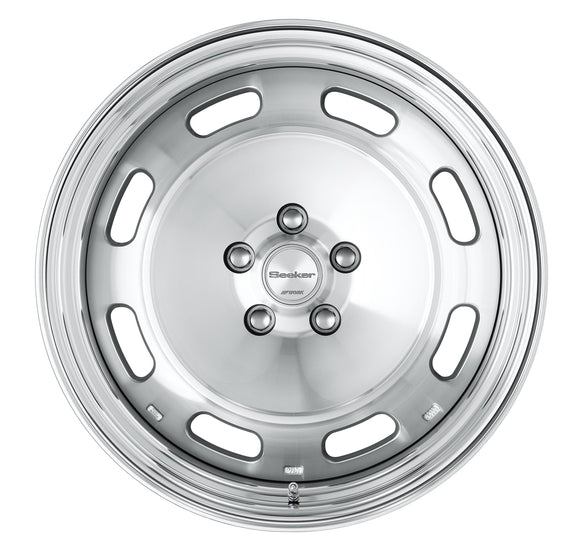

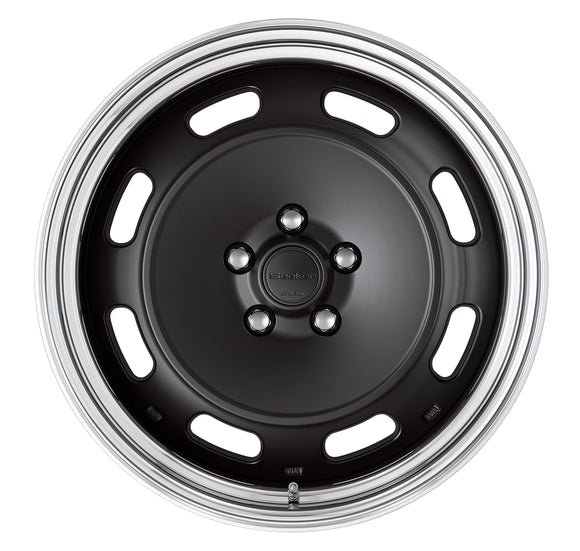

All 4 photographs on this page are WORK's own, of the 18 inch wheel sold here, in the finish each one names: Matte Black and Cut Clear. WORK's own gallery captions give the build in every shot as STEP RIM with the standard buff-anodised rim; the matte black shots carry the matte black centre cap, which is WORK's select option at the same price rather than the standard cap. Nothing here is borrowed from another size, and no slide in WORK's gallery for this model is marked (カスタム) / (Custom), so every finish shown is one WORK builds as standard.

What this page covers

Model WORK Seeker DT
Construction 2-piece
Diameter 18 inch
Rim type STEP RIM — WORK prints 2PIECE/REVERSE over this table and badges the size 18SR
Disc colours Matte Black (MBL), Cut Clear (MSP)Cut Clear is ¥2,200 more than Matte Black at every width on this page — WORK's own price list.
Widths 18×7.5J to 18×11.5J (9 widths, every width in both colours)
Disk types A-Disk (STANDARD), R-Disk (BIG CALIPER)
P.C.D. (centre bore) A-Disk: 4H-100(60), 5H-100(60), 5H-114.3(73.3)
R-Disk: 5H-114.3(73.3)
Special P.C.D. 4H-98–114.3 and 5H-98–120.65 — WORK custom order, ¥8,800 up per wheel (about US$62.86 at our standard conversion; the converted amount is confirmed on quotation)
Hub height clearance A-Disk (STANDARD): 41 mm
R-Disk (BIG CALIPER): 53 mm
Load rating JWL-P720KG (Japanese passenger-car standard) — WORK's own line for this exact size and rim type
Air valve V41C, one per wheel, included
Rim finish Buff anodised (standard)
Centre cap Included — one per wheel
WORK catalogue code SDT・HRN

What you choose on this page

  • Width and disc colour — in the picker above. WORK builds no concave variants of the Seeker DT, so there is no concave choice to make. Note the colour pricing: Cut Clear (MSP) costs ¥2,200 more than Matte Black (MBL) at every width, which is WORK's own price list for the two finishes, not an error.
  • Disk type and inset — these are NOT variant options: tell us in the order notes, using the table below. Any inset inside a printed range can be built.
  • Special P.C.D. — a custom order, in the order notes, at ¥8,800 up per wheel. See the Notes.
  • Quantity — the price shown is for one wheel.

Order inset ranges, 18 inch STEP RIM

Protrusion warning for this table — Seeker DT 18 inch. WORK prints this warning at a rim depth of 47 mm. Unlike every other Seeker table that prints this warning, WORK writes it here without 未満 ("less than") — the sentence names the 47 mm depth itself rather than everything below it. We reproduce WORK's wording exactly as printed and do not widen it into a threshold; ask us and we will put the question to WORK before your wheels are built. The rim depth of every inset is printed under it in the table below, and 47 mm is the shallowest depth WORK prints at this diameter. WORK adds, in the same note, that even at the rim depths above this the disc may still protrude very slightly past the rim flange, within manufacturing tolerance.
WORK's own sentence: ※リム深さ47mmはリムフランジよりディスクが突出しますのでご注意ください。 ただし、上記のリム深さであっても誤差の為、リムフランジよりわずかにディスクが突出する場合があります。
Width A-Disk — STANDARD
hub height clearance 41 mm · 4H-100(60), 5H-100(60), 5H-114.3(73.3) 		R-Disk — BIG CALIPER
hub height clearance 53 mm · 5H-114.3(73.3)
18×7.5J +48 to +15 †rim depth 47–80 mm +36 to +3 †rim depth 47–80 mm
18×8.0J +54 to +9 †rim depth 47–92 mm +42 to -3 †rim depth 47–92 mm
18×8.5J +61 to +2 †rim depth 47–106 mm +49 to -10 †rim depth 47–106 mm
18×9.0J +67 to -4 †rim depth 47–118 mm +55 to -16 †rim depth 47–118 mm
18×9.5J +73 to -10 †rim depth 47–130 mm +61 to -22 †rim depth 47–130 mm
18×10.0J +80 to -17 †rim depth 47–144 mm +68 to -29 †rim depth 47–144 mm
18×10.5J +83 to -23rim depth 50–156 mm +74 to -35 †rim depth 47–156 mm
18×11.0J +83 to -29rim depth 56–168 mm +80 to -41 †rim depth 47–168 mm
18×11.5J +83 to -36rim depth 63–182 mm +83 to -48rim depth 51–182 mm

† This cell reaches the 47 mm rim depth WORK names in the protrusion warning above. On a cell printed as a range that is its shallow end; on a cell WORK prints as a single inset and depth, the whole cell is at that depth and there is no deeper option to choose instead.

Included with every wheel — and what is optional

Included — built from WORK's own accessories line for this size, ●付属品：センターキャップ/1個・エアバルブ/1個(V41C):

  • One centre cap per wheel.
  • One air valve per wheel, WORK part V41C.
  • A buff-anodised rim is the standard finish (WORK: ※バフアルマイトリムが標準となります。).

Optional / Sold Separately — WORK's Optional Items box for this spread. Yen figures are WORK's list prices; we convert them on quotation.

  • Matte black centre cap — same price as the standard cap (no surcharge; ask for it in the order notes). This is the cap WORK photographs on every matte black wheel in its own gallery.
  • ESS centre cap — ¥4,950 per cap
  • Black centre cap with the W emblem — ¥3,850 per cap
  • Red centre cap with the W emblem — ¥3,850 per cap
  • Silver centre cap with the W emblem — ¥3,850 per cap
  • Black air valve — ¥550 per valve on top of the listed price

Ask us and we will add any of these to the order. WORK also lists these caps and valves as repair parts by part number; ask us if you need a replacement rather than an upgrade.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
  • Each wheel comes with one centre cap and one air valve (V41C). A buff-anodised rim is the standard finish.
  • Rated JWL-P720KG (Japanese passenger-car standard). WORK prints this for the 18 inch REVERSE build of the Seeker DT specifically: ※Seeker DT 18inch REVERSEはJWL-P720KG(乗用車規格)をクリアしています。
  • WORK's protrusion warning here reads ※リム深さ47mmはリムフランジよりディスクが突出しますのでご注意ください。 ただし、上記のリム深さであっても誤差の為、リムフランジよりわずかにディスクが突出する場合があります。 — it names a rim depth of 47 mm and, unlike the other Seeker sizes, carries no 未満 ("less than"). We reproduce it as printed rather than reading a threshold into it. Even above that depth WORK notes the disc may protrude very slightly, within manufacturing tolerance.
  • Special P.C.D. 4H-98–114.3 and 5H-98–120.65 is a WORK custom order at ¥8,800 up per wheel on top of the listed price — that is WORK's own yen figure for this size; we confirm the converted amount on quotation. The range is the one WORK prints on the 18 inch table and nowhere else on this spread. WORK asks that you check the nuts or bolts you intend to use with a special P.C.D. before ordering (※特殊P.C.D.時、ご使用になるナット、ボルトに関してはお問合せください。) — tell us the car and we will put it to WORK with the order.
  • TPMS — supported at this size, and WORK's processing for it is free. WORK prints TPMS対応無料加工(16inch除く) on this spread: free TPMS processing, with 16 inch excluded. This page is not 16 inch, so the free processing applies. Tell us your sensor when you order (WORK points to its own TPMS detail page, TPMS対応の詳細▶P.185).
  • WORK offers this model through its Custom Order Plan: rim arrangement, semi-order colour, special P.C.D., Colorism, Colorism Clear, Copper Clear, Imperial Gold, powder coat and rim laser tattoo. We quote no price for any of them here — ask us and we will get WORK's figure for the plan you want.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
