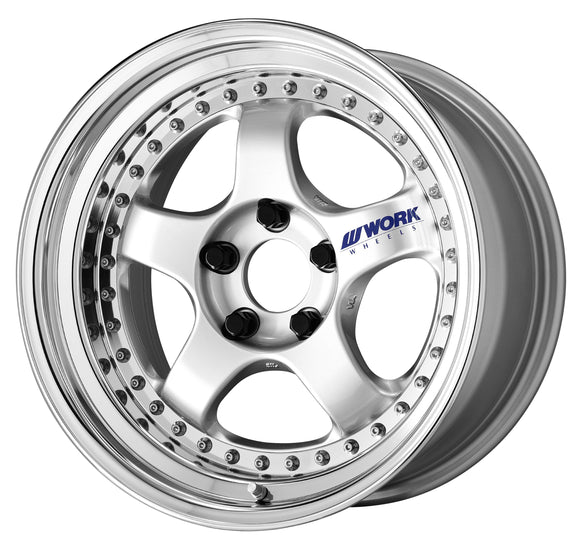

WORK MEISTER S1 3PIECE — Silver (SIL). WORK's 17 inch NORMAL wheel, shown as a finish reference for 16 inch NORMAL.

SKU: WORK-MSTS1-3P-16-SIL-5.0J

WORK MEISTER S1 3PIECE 16 Inch – All Colours and Widths

$468.00 $565.71 Save $97.71

Shipping calculated at checkout

Width: 16×5.0J
Colour: Silver (SIL)

The WORK MEISTER S1 3PIECE in 16 inch, built to order in Japan. A genuine three-piece WORK wheel: choose the width and the disc colour here, then tell us the disk block and the rim depth you want from the tables below. Those two together fix the inset — WORK prints one fixed inset in each width-and-rim-depth cell it builds, and that is the figure the wheel is built to.

WORK builds this size on 3 disk blocks — STANDARD (A-Disk), DEEP RIM (O-Disk), HYPER DEEP RIM (W-Disk). They are the same wheel at the same price: the block changes how deep the disc sits in the rim, which changes the inset you get at a given rim depth, and each block carries its own P.C.D. list, its own special P.C.D. entry and its own A dimension. Pick the width and colour above, then read the block you want below.

STANDARD (A-Disk) · DEEP RIM (O-Disk) · HYPER DEEP RIM (W-Disk)

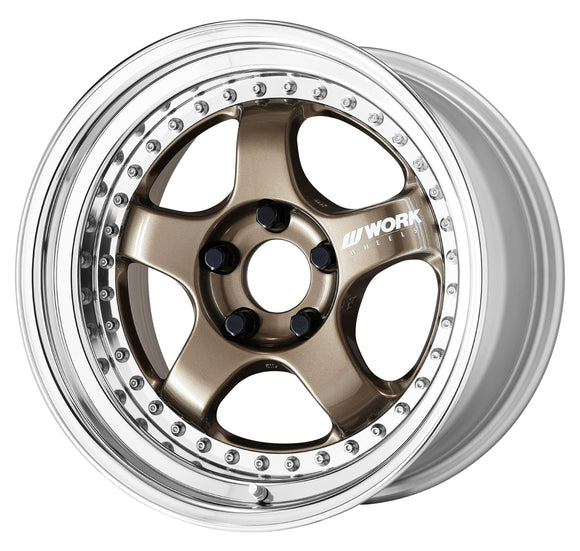

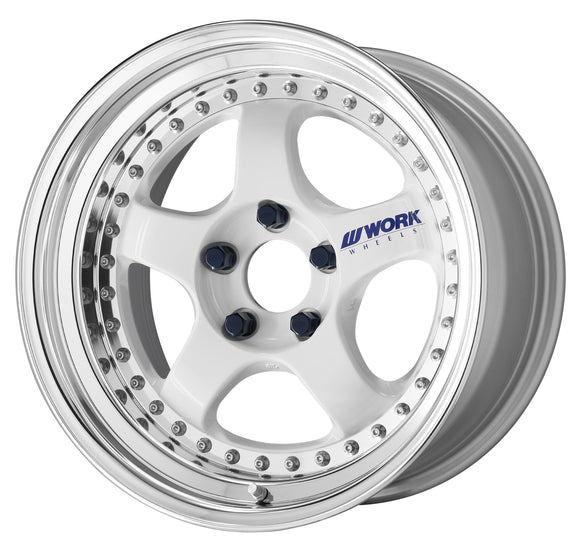

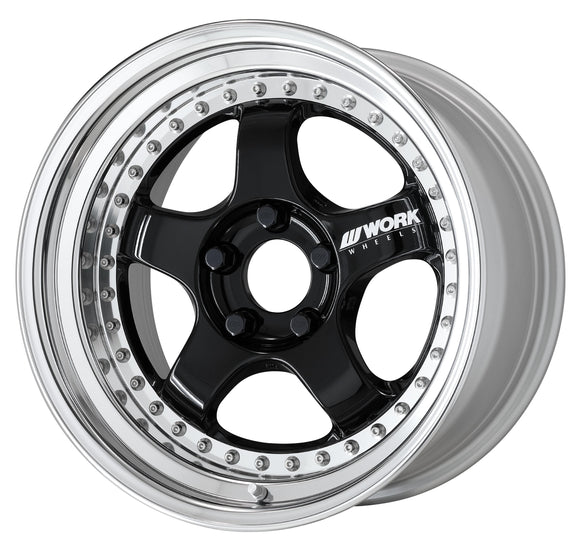

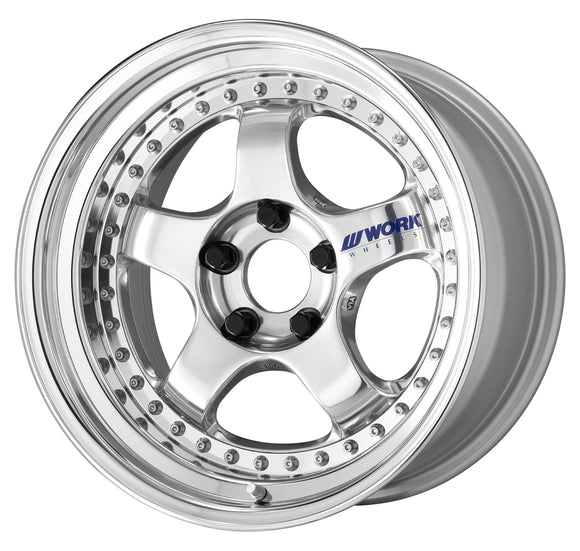

WORK publishes no photograph of this model in 16 inch NORMAL, so every photograph on this page is WORK's own photography of another size, shown as a finish reference and labelled as such in each image: Silver, White, Titanium Gold, Black and Buff Finish — from WORK's 17 inch NORMAL wheel. The finish in every borrowed photograph is the one you are choosing here; what differs is the diameter.

What this page covers

Model WORK MEISTER S1 3PIECE
Construction Three-piece
Diameter 16 inch
Rim type NORMAL
WORK prints this table's heading as 3PIECE/NORMAL.
Disc colours Silver (SIL), White (WHT), Titanium Gold (HPG), Black (BLK), Buff Finish (PP)
Widths 16×5.0J to 16×11.0J (13 widths)
Disk blocks STANDARD — A-Disk, rim depths 32–133 mm
DEEP RIM — O-Disk, rim depths 32–133 mm
HYPER DEEP RIM — W-Disk, rim depths 32–133 mm
P.C.D. STANDARD (A-Disk): 4H-100(60) at 45 mm rim depth and shallower; 4H-100(60), 5H-114.3(73.3) at 57 mm rim depth and deeper
DEEP RIM (O-Disk): 4H-100(60) at 45 mm rim depth and shallower; 4H-100(60), 5H-114.3(73.3) at 57 mm rim depth and deeper
HYPER DEEP RIM (W-Disk): 4H-100(60)
Special P.C.D. STANDARD (A-Disk): not offered at 45 mm rim depth and shallower; 4H-98〜114.3 and 5H-100〜114.3 at 57 mm rim depth and deeper
DEEP RIM (O-Disk): not offered at 45 mm rim depth and shallower; 4H-98〜114.3 and 5H-100〜114.3 at 57 mm rim depth and deeper
HYPER DEEP RIM (W-Disk): not offeredWORK prints 同価格 — no up-charge — beside the 特殊P.C.D. row on the strip that carries the price columns.
Hub height clearance WORK prints none. No hub height clearance figure appears anywhere on this model's spread, so this page states none — the sibling MEISTER models' figures are not borrowed.
A dimension STANDARD (A-Disk): 38 mm
DEEP RIM (O-Disk): 31 mm
HYPER DEEP RIM (W-Disk): 21 mmWORK's own A寸法 / センター深さ figure — the disc centre depth measured from the outer edge of the rim, given per diameter and per disk.
Load rating WORK prints no JWL rating at this diameter, so this page states none. The diameters of this model that do carry one are printed on their own tables and do not carry over.
Air valve V29A, or V13C2 on the cells WORK marks ★ in the tables below
Rim finish Buff anodised — WORK's standard rim finish on this model
Centre cap WORK prints no centre-cap line for this model. Its spread lists neither an included cap nor an optional one, so this page claims neither. Ask us if you need one and we will check with WORK.
Supplied with each wheel one air valve (V29A, or V13C2 on the cells WORK marks ★), one disc sticker and one rim sticker
Wheel weight, WORK's figure WORK prints no WEIGHT column on this spread, so this page quotes none.
WORK catalogue code MST/3P・50〜90B

What you choose on this page

  • Width and disc colour — in the variant picker above. Those two, and only those two, set the price.
  • Disk block and rim depth — tell us in the order notes. The matrix for each block below gives the inset WORK builds at that width and rim depth; that cell is your inset. Every block and every rim depth is the same price at a given width.
  • P.C.D. — tell us your car's bolt pattern. Each block lists the P.C.D.s it is drilled for above its table.
  • Quantity — the price shown is for one wheel.

STANDARD — A-Disk, 16 inch

P.C.D. 4H-100(60) at 45 mm rim depth and shallower; 4H-100(60), 5H-114.3(73.3) at 57 mm rim depth and deeper · Special P.C.D. not offered at 45 mm rim depth and shallower; 4H-98〜114.3 and 5H-100〜114.3 at 57 mm rim depth and deeper at no extra charge (WORK prints 同価格) · A dimension 38 mm · Rim depths 32–133 mm (9 steps)

Width
rim depth across → 		32 mm 45 mm 57 mm 70 mm 83 mm 95 mm 108 mm 121 mm 133 mm
16×5.0J +11 ★ — — — — — — — —
16×5.5J +17 ★ +4 — — — — — — —
16×6.0J +23 ★ +11 -2 — — — — — —
16×6.5J +30 ★ +17 +4 -8 — — — — —
16×7.0J +36 ★ +23 +11 -2 -15 — — — —
16×7.5J +42 ★ +30 +17 +4 -8 -21 — — —
16×8.0J — +36 +23 +11 -2 -15 -27 — —
16×8.5J — — +30 +17 +4 -8 -21 -34 —
16×9.0J — — — +23 +11 -2 -15 -27 -40
16×9.5J — — — — +17 +4 -8 -21 -34
16×10.0J — — — — — +11 -2 -15 -27
16×10.5J — — — — — — +4 -8 -21
16×11.0J — — — — — — — -2 -15
  • A dash means WORK does not build that width at that rim depth.
  • ★ — the cells marked ★ are supplied with the V13C2 air valve in place of the V29A.

DEEP RIM — O-Disk, 16 inch

P.C.D. 4H-100(60) at 45 mm rim depth and shallower; 4H-100(60), 5H-114.3(73.3) at 57 mm rim depth and deeper · Special P.C.D. not offered at 45 mm rim depth and shallower; 4H-98〜114.3 and 5H-100〜114.3 at 57 mm rim depth and deeper at no extra charge (WORK prints 同価格) · A dimension 31 mm · Rim depths 32–133 mm (9 steps)

Width
rim depth across → 		32 mm 45 mm 57 mm 70 mm 83 mm 95 mm 108 mm 121 mm 133 mm
16×5.0J +18 ★ — — — — — — — —
16×5.5J +24 ★ +11 — — — — — — —
16×6.0J +30 ★ +18 +5 — — — — — —
16×6.5J +37 ★ +24 +11 -1 — — — — —
16×7.0J +43 ★ +30 +18 +5 -8 — — — —
16×7.5J +49 ★ +37 +24 +11 -1 -14 — — —
16×8.0J — +43 +30 +18 +5 -8 -20 — —
16×8.5J — — +37 +24 +11 -1 -14 -27 —
16×9.0J — — — +30 +18 +5 -8 -20 -33
16×9.5J — — — — +24 +11 -1 -14 -27
16×10.0J — — — — — +18 +5 -8 -20
16×10.5J — — — — — — +11 -1 -14
16×11.0J — — — — — — — +5 -8
  • A dash means WORK does not build that width at that rim depth.
  • ★ — the cells marked ★ are supplied with the V13C2 air valve in place of the V29A.

HYPER DEEP RIM — W-Disk, 16 inch

P.C.D. 4H-100(60) · Special P.C.D. not offered · A dimension 21 mm · Rim depths 32–133 mm (9 steps)

Width
rim depth across → 		32 mm 45 mm 57 mm 70 mm 83 mm 95 mm 108 mm 121 mm 133 mm
16×5.0J +29 ★ — — — — — — — —
16×5.5J +35 ★ +22 — — — — — — —
16×6.0J +41 ★ +29 +16 — — — — — —
16×6.5J +48 ★ +35 +22 +10 — — — — —
16×7.0J +54 ★ +41 +29 +16 +3 — — — —
16×7.5J +60 ★ +48 +35 +22 +10 -3 — — —
16×8.0J — +54 +41 +29 +16 +3 -9 — —
16×8.5J — — +48 +35 +22 +10 -3 -16 —
16×9.0J — — — +41 +29 +16 +3 -9 -22
16×9.5J — — — — +35 +22 +10 -3 -16
16×10.0J — — — — — +29 +16 +3 -9
16×10.5J — — — — — — +22 +10 -3
16×11.0J — — — — — — — +16 +3
  • A dash means WORK does not build that width at that rim depth.
  • ★ — the cells marked ★ are supplied with the V13C2 air valve in place of the V29A.

Optional and replacement items

WORK's own optional extras and replacement parts for this model, bought separately. WORK prints no centre cap for this model, so none is listed.

Item WORK part no. WORK list price Type
Titanium-coated pierce bolt — ¥16,500 up per bolt Optional
Gold pierce bolt — ¥16,500 up per bolt Optional
Black pierce bolt — Same price Optional
Black air valve — Same price Optional
Air valveV13C2 No.180003 ¥1,650 each Replacement
Black air valveV13K2 No.180127 ¥1,650 each Replacement
Air valveV29A No.180031 ¥1,650 each Replacement
Black air valveV29K No.180095 ¥1,650 each Replacement
Stickerdisc sticker, blue No.130008 ¥550 each Replacement
Stickerdisc sticker, white No.130009 ¥550 each Replacement
StickerS1 rim sticker No.130010 ¥550 each Replacement
  • WORK quotes the pierce-bolt options as an up-charge per bolt (/1本), which is how it prints them. We confirm the total for your wheel size with WORK before invoicing.
  • All yen figures are WORK's own tax-included Japanese list prices. Ask us and we will add the items you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V29A, or V13C2 on the cells WORK marks ★), one disc sticker and one rim sticker. WORK prints no centre-cap line for this model, so this page claims neither an included cap nor an optional one.
  • WORK prints two air valves for this size: V29A as standard, and V13C2 on the cells it marks ★ in the tables above.
  • A buff-anodised rim is WORK's standard rim finish on this model.
  • ★ — the cells marked ★ are supplied with the V13C2 air valve in place of the V29A.
  • WORK prints no JWL load rating at this diameter, so we state none. Other diameters of this model are printed on their own tables and some of them do carry one; that does not carry over to this page. Ask us if you need a rating confirmed for registration.
  • Special P.C.D. is a WORK custom order and is listed per disk block above — the ranges differ between blocks, and on some blocks WORK prints a dash, meaning it is not offered on that block at all. We never read one block's range onto another.
  • WORK asks that you check the nuts or bolts you intend to use with us before ordering a special P.C.D.
  • Semi-order colours. WORK will build this wheel in a colour of its own semi-order range at the same price as White, Silver, Black and Titanium Gold. Ask us and we will check the colour and the lead time with WORK.
  • WORK's Custom Order Plan covers this model: rim arrangement, semi-order colour, special P.C.D., COLORHYTHM and ASTERISM. WORK prints ※18inch除く (18 inch excluded) beside that panel without saying which of the tags it qualifies. We check the plan you want with WORK before quoting. Ask us for a quotation.
  • TPMS is not available at 16 inch. WORK's TPMS panel on this model's spread reads 20inchのみ対応 — 20 inch only.
  • WORK prints no hub height clearance anywhere on this model's spread, so this page states none. The figures printed for the sibling MEISTER models are not borrowed.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
