WORK MEISTER S1 1PIECE SUV 16 inch NORMAL, Ashed Titanium (AHG) — WORK factory photo

SKU: WORK-MSTS1V-1P-16-AHG-5.5J-P20-5H1397

WORK MEISTER S1 1PIECE SUV 16 Inch – All Colours, Widths and Insets

$299.00 $361.43 Save $62.43

Shipping calculated at checkout

Width: 16×5.5J
Colour: Ashed Titanium (AHG)
Inset: +20 · 5H-139.7(108.5) · FACE TYPE 1 · rim depth 41 mm / centre depth 18 mm

The WORK MEISTER S1 1PIECE SUV in 16 inch, built to order in Japan. A one-piece wheel from WORK's MEISTER SUV range, with fixed insets: choose the width, the colour and the inset here. Pick the width first, then the inset. The table below gives every width and inset at this diameter with its bolt pattern, its WORK face type, WORK's rim and centre depths and the vehicles WORK itself lists against it.

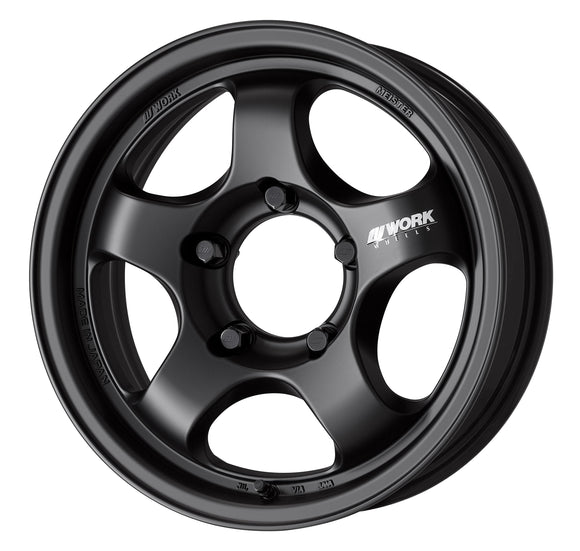

WORK photographs Ashed Titanium and Matte Black at this exact diameter and rim type. Every photograph on this page is WORK's own, of 16 inch NORMAL — none is borrowed from another size.

What this page covers

Model WORK MEISTER S1 1PIECE SUV
Construction One-piece
Diameter 16 inch
Rim type NORMAL
WORK prints this table's heading as 1PIECE/NORMAL.
Disc colours Ashed Titanium (AHG), Matte Black (MBL)
Widths 16×5.5J, 16×6.0J and 16×8.0J (3 widths)
Insets 6 fixed width-and-inset combinations at this diameter, each with its own bolt pattern and face type. See the table below.
H-P.C.D. 5H-139.7(108.5), 5H-150(110.2)
Each inset is drilled for one bolt pattern only; the pattern is part of the inset you pick.
Special P.C.D. Not offered. WORK prints no 特殊P.C.D. row and no up-charge anywhere on this spread.
Face types FACE TYPE 1, FACE TYPE 2, FACE TYPE 3, FACE TYPE 4
WORK's own face-shape codes, taken from the specification table.
Load rating 5H-139.7: JWL (VIA-P620KG)
5H-150 at 16 inch: JWL (VIA-P770KG) and JWL-T (VIA-T890KG)
Air valve V29K2
TPMS WORK prints its TPMS badge on this model's masthead with no size exclusion, so TPMS is supported at this size. Ask us and we will confirm the sensor with WORK before building.
Mounting bolts WORK prints M14 標準対応 on this model's masthead — M14 mounting bolts are supported as standard.
Centre cap No centre cap at this size. WORK's only SUV centre cap is for P.C.D. 6H-139.7, and no inset on this page is 6H-139.7.
Supplied with each wheel one air valve (V29K2) and one disc sticker
Wheel weight, WORK's figure WORK prints no WEIGHT column on this spread, so this page quotes none.
WORK catalogue code MST-S1V

What you choose on this page

  • Width, colour and inset — in the variant picker above. The inset you pick also settles the bolt pattern, the face type and the rim and centre depths.
  • Nothing to specify in the order notes. These are WORK's fixed insets; there is no inset-to-order range on a one-piece wheel, so an inset between two listed figures cannot be built.
  • Quantity — the price shown is for one wheel.

Widths, insets and WORK's vehicle list — 16 inch

The right-hand column is WORK's own 参考車両 application list, transcribed exactly as WORK prints it against each inset. Nothing has been added to it and nothing has been generalised: if a vehicle is not named here, WORK does not name it for this size.

Width Inset Face type H-P.C.D.
centre bore in brackets, where WORK prints one 		Rim depth / centre depth Vehicles WORK lists
WORK's own 参考車両 column
16×5.5J +20 FACE TYPE 1 5H-139.7(108.5) 41 mm / 18 mm JIMNY(JB23 / JB64)
±0 FACE TYPE 1 5H-139.7(108.5) 41 mm / 38 mm JIMNY NOMADE(JC74) / JIMNY SIERRA(JB74) / JIMNY(Tuner size)
16×6.0J -5 FACE TYPE 2 5H-139.7(108.5) 60 mm / 20 mm JIMNY NOMADE(JC74) / JIMNY SIERRA(JB74)
16×8.0J ±0 FACE TYPE 3 5H-150(110.2) 70 mm / 20 mm LAND CRUISER 70(J76)
-15 FACE TYPE 4 5H-150(110.2) 70 mm / 20 mm LAND CRUISER 70(J76)
-25 FACE TYPE 4 5H-150(110.2) 70 mm / 30 mm LAND CRUISER 70(J76) for Rear
  • WORK prints its own caveat over that column: (※すべてが参考車両への推奨サイズではありません。) — not every vehicle and size pairing listed is a recommended size for that vehicle. Please check your car with us before ordering.
  • Some rows are marked (Tuner size). That is WORK's own wording, reproduced here as printed — ask us and we will check with WORK what it means for your car before you order.
  • Rim depth is the figure WORK prints in round brackets and centre depth the figure in square brackets, both in mm, measured on this model.

Optional and replacement items

WORK's own optional extras and replacement parts for this model, bought separately. WORK makes no centre cap for the bolt patterns on this page — its SUV cap is P.C.D. 6H-139.7 only — so none is listed here.

Item WORK part no. WORK list price Type
Air valve (black)V29K2 No.180085 ¥1,650 each Replacement
Stickerdisc sticker S, white (16 inch only) No.130095 ¥550 each Replacement
Stickerdisc sticker, white No.130009 ¥550 each Replacement
  • All yen figures are WORK's own tax-included Japanese list prices. Ask us and we will add the items you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V29K2) and one disc sticker. WORK makes no centre cap for the bolt patterns on this page — its SUV cap is P.C.D. 6H-139.7 only, and no inset at this diameter is 6H-139.7.
  • Load ratings, as WORK prints them for this size: 5H-139.7: JWL (VIA-P620KG); 5H-150 at 16 inch: JWL (VIA-P770KG) and JWL-T (VIA-T890KG).
  • Special P.C.D. is not offered on this model. WORK prints no 特殊P.C.D. row and no up-charge anywhere on the spread.
  • TPMS. WORK prints its TPMS badge on this model's masthead with no size exclusion, so TPMS is supported at this size. Ask us and we will confirm the sensor with WORK before building.
  • WORK notes that the disc sticker supplied at 16 inch is a different size from the one supplied at the other diameters of this model.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
