The WORK MEISTER L1 1PIECE SUV in 18 inch, built to order in Japan. A one-piece wheel from WORK's MEISTER SUV range, with fixed insets: choose the colour here. WORK builds one width and one inset only at this diameter, so both are fixed and the picker shows the colour alone. The table below gives every width and inset at this diameter with its bolt pattern, its WORK face type, WORK's rim and centre depths and the vehicles WORK itself lists against it.
New model. WORK prints the NEW badge on this model's masthead in the current catalogue.

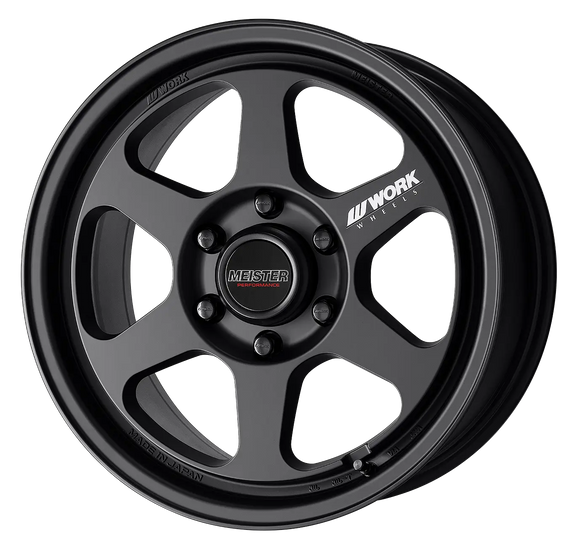

WORK photographs Ashed Titanium and Matte Black at this exact diameter and rim type. Every photograph on this page is WORK's own, of 18 inch NORMAL — none is borrowed from another size.
What this page covers
| Model |
WORK MEISTER L1 1PIECE SUV |
| Construction |
One-piece |
| Diameter |
18 inch |
| Rim type |
NORMAL
WORK prints this table's heading as 1PIECE/NORMAL.
|
| Disc colours |
Ashed Titanium (AHG), Matte Black (MBL) |
| Widths |
18×8.5J (1 width) |
| Insets |
1 fixed width-and-inset combination at this diameter, with its own bolt pattern and face type. See the table below. |
| H-P.C.D. |
6H-139.7
Each inset is drilled for one bolt pattern only; the pattern is part of the inset you pick.
|
| Special P.C.D. |
Not offered. WORK prints no 特殊P.C.D. row and no up-charge anywhere on this spread. |
| Face types |
FACE TYPE 1
WORK's own face-shape codes, taken from the specification table.
|
| Load rating |
6H-139.7: JWL (VIA-P800KG) and JWL-T (VIA-T955KG) |
| Air valve |
V29K2 |
| TPMS |
WORK prints its TPMS badge on this model's masthead with no size exclusion, so TPMS is supported at this size. Ask us and we will confirm the sensor with WORK before building. |
| Centre cap |
Optional item — not included, and WORK builds it for P.C.D. 6H-139.7 only (see below) |
| Supplied with each wheel |
one air valve (V29K2) and one disc sticker |
| Wheel weight, WORK's figure |
WORK prints no WEIGHT column on this spread, so this page quotes none. |
| WORK catalogue code |
MST-L1V |
What you choose on this page
-
Colour — the only choice in the picker above. WORK builds one width and one inset only at this diameter, so they are fixed and the picker does not offer them — the figure is in the table below.
-
Nothing to specify in the order notes. These are WORK's fixed insets; there is no inset-to-order range on a one-piece wheel, so an inset between two listed figures cannot be built.
-
Quantity — the price shown is for one wheel.
Widths, insets and WORK's vehicle list — 18 inch
The right-hand column is WORK's own 参考車両 application list, transcribed exactly as WORK prints it against each inset. Nothing has been added to it and nothing has been generalised: if a vehicle is not named here, WORK does not name it for this size.
- WORK prints its own caveat over that column: (※すべてが参考車両への推奨サイズではありません。) — not every vehicle and size pairing listed is a recommended size for that vehicle. Please check your car with us before ordering.
-
★ against LX700h — WORK prints: ★「LX700h(7人乗り)」「LX700h OVERTRAIL +(7人乗り)」の2グレードは対応不可となります. The two 7-seat grades, LX700h (7-seater) and LX700h OVERTRAIL+ (7-seater), are not compatible.
- WORK writes 除くナローボディー after LAND CRUISER 250 on one row — that means narrow-body versions excluded.
- Rim depth is the figure WORK prints in round brackets and centre depth the figure in square brackets, both in mm, measured on this model.
Optional and replacement items
The centre cap is an optional item on this model — it is not included, and is bought separately, one per wheel.
- All yen figures are WORK's own tax-included Japanese list prices. Ask us and we will add the items you want to the order.
- WORK notes that on some vehicles the centre cap cannot be fitted at all.
- WORK gives the cap's internal dimensions as 106 mm hub diameter and 53 mm hub height clearance.
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time.
- Each wheel comes with one air valve (V29K2) and one disc sticker. The centre cap is not included — it is an optional item, listed above.
- Load ratings, as WORK prints them for this size: 6H-139.7: JWL (VIA-P800KG) and JWL-T (VIA-T955KG).
-
Special P.C.D. is not offered on this model. WORK prints no 特殊P.C.D. row and no up-charge anywhere on the spread.
-
TPMS. WORK prints its TPMS badge on this model's masthead with no size exclusion, so TPMS is supported at this size. Ask us and we will confirm the sensor with WORK before building.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
- All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
