The WORK M.C.O RACING in 18 inch, built to order in Japan. A one-piece ten-spoke WORK wheel on a NORMAL rim. WORK names the process on its own page for this model — WFT (WORK FLOW FORMING TECHNOLOGY) — and that is all WORK publishes about it, so it is all we say about it. Every 18-inch specification line WORK prints is a “for Competition” line, sold outside WORK's warranty — this whole page is a competition wheel. The panel below says exactly what that means.
Competition use and WORK's warranty — read this first
WORK prints, on this model's specification spread: ※for Competitionは競技向けの為、保証対象外となります。 — in plain English, a specification line marked for Competition is for competition use and is outside WORK's warranty. It is the only warranty sentence WORK prints on this spread, and WORK applies it line by line, not size by size.
Every specification line WORK prints at 18 inch is marked for Competition. There is no 18-inch M.C.O RACING that sits inside WORK's warranty: both of the (width, inset) lines on this page — 18×8.0J at +35 and 18×8.5J at +38 — are competition-use wheels, sold outside WORK's warranty. If you want a road wheel with WORK's warranty behind it, this is not the page; ask us and we will point you at another WORK model.

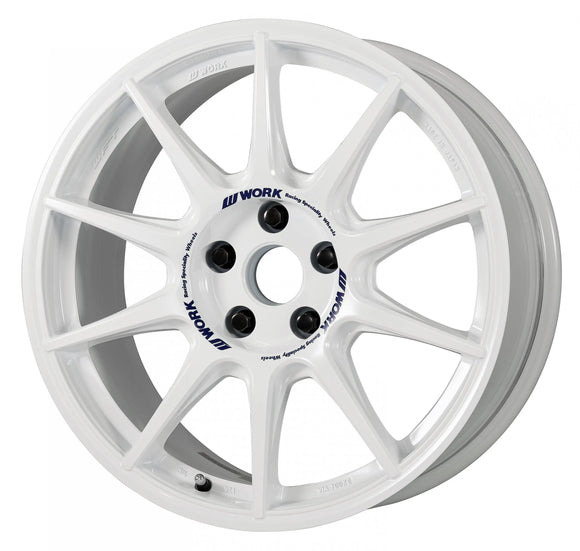

The photograph on this page is WORK's own, of the 18 inch M.C.O RACING in White (WHT) on a NORMAL rim — the exact size and the only finish this page sells. Nothing is borrowed from another size, and no slide in WORK's gallery for this model is marked (カスタム) / (Custom). One thing to flag, because it cuts the other way: WORK's English caption on this slide reads WHITE(WHT) ※18inch — without for Competition — while WORK's specification table marks both 18-inch lines for Competition. The specification table is what WORK builds to, so the table governs this page and the caption does not soften it. The alt text on this image asserts no warranty position. We are putting the caption conflict to WORK in writing along with the 15-inch question.
What this page covers
| Model |
WORK M.C.O RACING |
| Construction |
1-piece — WORK: WFT (WORK FLOW FORMING TECHNOLOGY)
|
| Diameter |
18 inch |
| Rim type |
NORMAL |
| Colour |
White (WHT) — the only finish WORK builds this model in, so there is nothing to choose |
| Widths and insets |
18×8.0J at +35, 18×8.5J at +382 specification lines — exactly the (size, inset) combinations WORK prints at this diameter, never a full grid.
|
| P.C.D. (centre bore) |
5H-114.3 (60)Per line, not per page — a P.C.D. column existing on WORK's table does not mean every line offers it. The table below binds each P.C.D. to the line WORK marks it on.
|
| Special P.C.D. |
Not offered at 18 inch. WORK marks the two special-P.C.D. columns on 15-inch lines only, and WORK's own specification panel says 15inchのみ特殊P.C.D.対応。 — special P.C.D. on 15 inch alone. Nothing on this page can be built to a P.C.D. other than the ones listed above. |
| WORK's published wheel weight |
18×8.0J: from 10.1 kg · 18×8.5J: from 9.6 kgWORK's own WEIGHT (Kg) column, printed with a 〜 meaning "from". This is the weight of the wheel itself, not the packed shipping weight this store charges on.
|
| Load rating |
WORK prints no JWL rating for this model. There is no JWL sentence anywhere on the spread, at any diameter, so we state none. |
| Air valve |
TR412C, one per wheel, included |
| Centre cap |
Not included, and not available. See below. |
| WORK catalogue code |
MCO-TA |
What you choose on this page
-
Width, then the bolt pattern — in the pickers above. Each width at this diameter has exactly one inset, so choosing the width fixes the inset; the Inset value names that inset with the P.C.D. and its centre bore, and the storefront leaves only the bolt patterns WORK actually builds that width in.
-
Colour — not a choice: White (WHT) is the only finish WORK builds. We are not asking you to pick it.
-
Quantity — the price shown is for one wheel.
What WORK prints at 18 inch — line by line
Each row below is one orderable specification — one width, one inset, one bolt pattern — and it is the row that carries the warranty position. The P.C.D.s are taken from the ● marks printed on that line and nowhere else: a column existing on WORK's table does not mean the line offers it.
ORDER INSET — a custom inset at no extra charge
WORK offers no ORDER INSET at 18 inch. On WORK's table the ORDER INSET cell is printed for the 15-inch and 17-inch sizes and is empty for both 18-inch sizes. There is no custom-inset range to order here: the inset you pick in the picker above is the inset WORK builds. We do not carry a range across from another diameter.
What comes with the wheel — and what does not
Included — WORK's own accessories line for this model reads ●付属品：エアバルブ/1個(TR412C)・ステッカー(15/17inchは2枚、18inchは3枚):
- One air valve, WORK part TR412C, per wheel. Note that this is a TR-series valve, not the V-series valve WORK supplies with its two-piece models.
-
3 stickers at 18 inch — WORK prints two for 15 and 17 inch and three for 18 inch.
Not included: there is no centre cap. WORK lists no centre cap in the accessories line for this model, and under our accessories rule an item WORK does not list is not included — we say so rather than leaving you to find out. Nor is one available to add: the 対応オプション row of WORK's own specification panel for this model reads 対応なし — no options at all. If a centre cap matters to you, ask us before ordering.
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
-
Competition use and warranty. WORK prints ※for Competitionは競技向けの為、保証対象外となります。 — a line marked for Competition is for competition use and is outside WORK's warranty. Every line on this page carries that label.
-
WORK's printed wheel weights do not rise with the width at this diameter — 18×8.0J is printed 10.1〜 and 18×8.5J is printed 9.6〜. That is WORK's own WEIGHT (Kg) column reproduced exactly as printed, not a transcription error on our side; the wider wheel is the lighter figure. We have not been given a reason for it and we will not invent one, so we are asking WORK to confirm both figures.
-
WORK publishes a wheel weight for this model — a WEIGHT (Kg) column, printed with a 〜 that means "from". It is the first WORK spread we sell that prints one, and the figures in the table above are WORK's. It is not the shipping weight: what this store charges shipping on is our packed weight, which includes the packaging.
-
Special P.C.D. is not offered at 18 inch. WORK marks it on 15-inch lines only, and WORK's specification panel says the same: 15inchのみ特殊P.C.D.対応。 Only the P.C.D.s in the table above can be built at this diameter.
-
WORK prints no JWL rating for this model, at any diameter. We state none. Ask us if you need a rating confirmed for registration.
-
TPMS — not compatible. WORK marks TPMS support on the models that have it, in the specification panel on its own product page. WORK does not mark this model, and its catalogue spread prints no TPMS panel, so we do not fit or process TPMS sensors for it. If you need a TPMS-compatible WORK wheel, ask us and we will point you at the models WORK does list.
- WORK's specification panel for this model lists 特殊P.C.D. as the only custom it supports — and its own 備考 narrows even that to 15 inch (15inchのみ特殊P.C.D.対応。) — with 対応オプション：対応なし, no options. There is no semi-order colour, no rim arrangement and no cap option for this model.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
