WORK LANVEC LS10 20 inch FULL REVERSE – GR Silver Cut Clear

SKU: WORK-LVLS10-2P-20-GRP-8.0-FR

WORK LANVEC LS10 20 Inch FULL REVERSE – All Colours and Widths

$637.00 $770.00 Save $133

Shipping calculated at checkout

Width: 20×8.0J
Colour: GR Silver Cut Clear (GRP)

The WORK LANVEC LS10 in 20 inch FULL REVERSE, built to order in Japan. A genuine two-piece WORK wheel: choose the width and disc colour here, then tell us the disk type and inset you want from WORK's table below, and WORK builds the wheel to that spec.

WORK photographs GR Silver Cut Clear, Glim Black at this exact size and rim type.

What this page covers

Model WORK LANVEC LS10
Construction 2-piece
Diameter 20 inch
Rim type FULL REVERSE

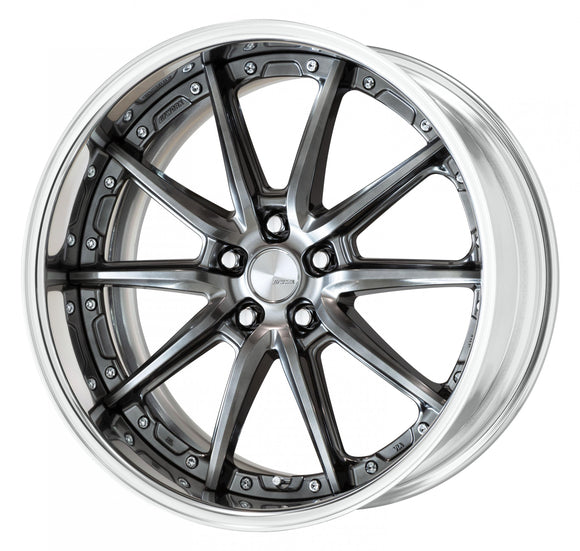

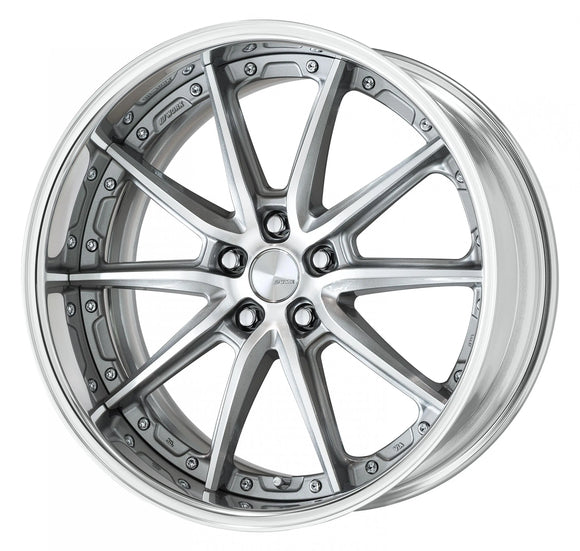

Disc colours GR Silver Cut Clear (GRP), Glim Black (GTK)
Widths 20×8.0J to 20×12.5J (10 widths)
Disk types A-Disk (STANDARD), O-Disk (DEEP RIM)
P.C.D. A-Disk: 5H-114.3(73.3), 5H-120(60)
O-Disk: 5H-114.3(73.3), 5H-120(60)
Special P.C.D. Not offered on this model
Hub height clearance A-Disk 50 mm, O-Disk 36 mm
Load rating JWL-P735KG
Air valve V24C or V39A
Rim finish Buff anodised (standard)
WORK catalogue code LST・HRH

What you choose on this page

  • Disc colour and width — in the variant picker above.
  • Disk type and inset — tell us in the order notes, using the table below. Pick either one of WORK's fixed standard insets or any inset inside the order range — the price is the same.
  • Quantity — the price shown is for one wheel.

Insets — 20 inch FULL REVERSE

Width A-Disk — STANDARD
hub height clearance 50 mm · 5H-114.3(73.3), 5H-120(60) 		O-Disk — DEEP RIM
hub height clearance 36 mm · 5H-114.3(73.3), 5H-120(60)
Standard inset
fixed, same price 		Order inset 1
valve V24C 		Order inset 2
valve V39A 		Standard inset
fixed, same price 		Order inset 1
valve V24C 		Order inset 2
valve V39A
20×8.0J +35rim depth 44 mm +36 to +18rim depth 43–61 mm +17 to -5rim depth 62–84 mm +45rim depth 48 mm / +35rim depth 58 mm +50 to +32rim depth 43–61 mm +31 to +9rim depth 62–84 mm
20×8.5J +43rim depth 43 mm / +35rim depth 51 mm +43 to +11rim depth 43–75 mm +10 to -12rim depth 76–98 mm +45rim depth 55 mm / +35rim depth 65 mm +57 to +25rim depth 43–75 mm +24 to +2rim depth 76–98 mm
20×9.0J +45rim depth 47 mm / +35rim depth 57 mm +49 to +5rim depth 43–87 mm +4 to -18rim depth 88–110 mm +45rim depth 61 mm / +35rim depth 71 mm +63 to +19rim depth 43–87 mm +18 to -4rim depth 88–110 mm
20×9.5J +45rim depth 53 mm / +35rim depth 63 mm +55 to -1rim depth 43–99 mm -2 to -24rim depth 100–122 mm +45rim depth 67 mm / +35rim depth 77 mm +69 to +13rim depth 43–99 mm +12 to -10rim depth 100–122 mm
20×10.0J +35rim depth 70 mm +62 to -8rim depth 43–113 mm -9 to -31rim depth 114–136 mm +35rim depth 84 mm +76 to +6rim depth 43–113 mm +5 to -17rim depth 114–136 mm
20×10.5J — +68 to -14rim depth 43–125 mm -15 to -37rim depth 126–148 mm — +82 to ±0rim depth 43–125 mm -1 to -23rim depth 126–148 mm
20×11.0J — +74 to -20rim depth 43–137 mm -21 to -43rim depth 138–160 mm — +85 to -6rim depth 46–137 mm -7 to -29rim depth 138–160 mm
20×11.5J — +81 to -27rim depth 43–151 mm -28 to -50rim depth 152–174 mm — +85 to -13rim depth 53–151 mm -14 to -36rim depth 152–174 mm
20×12.0J — +75 to -33rim depth 55–163 mm -34 to -56rim depth 164–186 mm — +85 to -19rim depth 59–163 mm -20 to -42rim depth 164–186 mm
20×12.5J — +68 to -39rim depth 68–175 mm -40 to -62rim depth 176–198 mm — +82 to -25rim depth 68–175 mm -26 to -48rim depth 176–198 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one centre cap and one air valve (V24C or V39A). オーダーインセット：1はV24C、オーダーインセット：2はV39Aとなります。
  • A buff-anodised rim is the standard finish.
  • WORK prints no disc-protrusion warning for this size and rim type.
  • Rated JWL-P735KG (Japanese passenger-car standard).
  • Please ask us about the nuts or bolts you intend to use.
  • TPMS processing is free of charge.
