WORK LANVEC LDZ 20 inch STEP RIM – Black

SKU: WORK-LVLDZ-2P-20-BLK-8.0-SR

WORK LANVEC LDZ 20 Inch STEP RIM – All Colours and Widths

$617.50 $746.43 Save $128.93

Shipping calculated at checkout

Width: 20×8.0J
Colour: Black (BLK)

The WORK LANVEC LDZ in 20 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width and disc colour here, then tell us the inset you want from WORK's table below, and WORK builds the wheel to that spec.

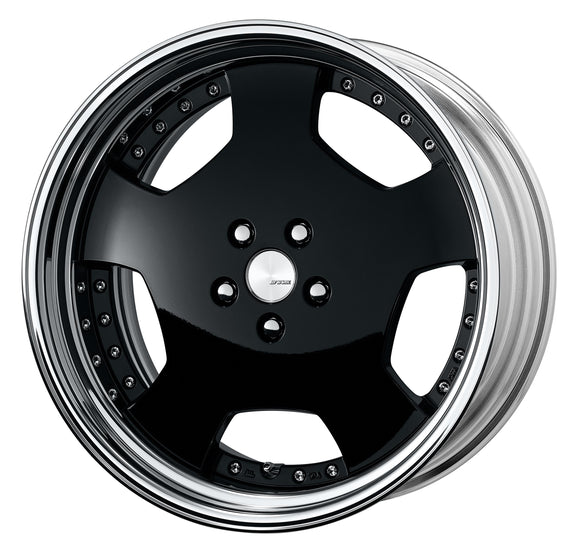

WORK photographs Black, Cut Clear at this exact size and rim type.

What this page covers

Model WORK LANVEC LDZ
Construction 2-piece
Diameter 20 inch
Rim type STEP RIM
Disc colours Black (BLK), Cut Clear (MSP)
Widths 20×8.0J to 20×12.5J (10 widths)
Disk types O-Disk (DEEP RIM)
P.C.D. O-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. Not offered on this model
Hub height clearance O-Disk 45 mm
Load rating JWL-P735KG
Air valve V24C
Rim finish Buff anodised (standard)
WORK catalogue code LDZ-SR・HRN

What you choose on this page

  • Disc colour and width — in the variant picker above.
  • Inset — tell us in the order notes, using the table below. Pick either one of WORK's fixed standard insets or any inset inside the order range — the price is the same.
  • Quantity — the price shown is for one wheel.

Insets — 20 inch STEP RIM

Width O-Disk — DEEP RIM
hub height clearance 45 mm · 5H-100(60), 5H-114.3(73.3)
Standard inset
fixed, same price 		Order inset
20×8.0J +45rim depth 49 mm / +35rim depth 59 mm +46 to +18rim depth 48–76 mm
20×8.5J +45rim depth 56 mm / +35rim depth 66 mm +53 to +11rim depth 48–90 mm
20×9.0J +45rim depth 62 mm / +35rim depth 72 mm +59 to +5rim depth 48–102 mm
20×9.5J +45rim depth 68 mm / +35rim depth 78 mm +65 to -1rim depth 48–114 mm
20×10.0J +35rim depth 85 mm +72 to -8rim depth 48–128 mm
20×10.5J — +78 to -14rim depth 48–140 mm
20×11.0J — +84 to -20rim depth 48–152 mm
20×11.5J — +85 to -27rim depth 54–166 mm
20×12.0J — +85 to -33rim depth 60–178 mm
20×12.5J — +85 to -39rim depth 66–190 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one centre cap and one air valve (V24C).
  • A buff-anodised rim is the standard finish.
  • Below 66 mm of rim depth the disc sits proud of the rim mating face — and WORK adds that there is no protrusion past the rim flange.
  • Rated JWL-P735KG (Japanese passenger-car standard).
  • Please ask us about the nuts or bolts you intend to use.
  • TPMS processing is free of charge.
