WORK EQUIP E05 20 Inch – Super Chrome Plated (SC)

SKU: WORK-E05-20-SC-20x7.5J-P40E-A-FR

WORK EQUIP E05 20 Inch – Super Chrome Plated (SC)

$1,337.14 $1,634.29 Save $297.15

Shipping calculated at checkout

Width: 20x7.5J
Offset | Rim Structure: +40 E | Standard | A-Disk

WORK EQUIP E05 20 Inch – Super Chrome Plated (SC)

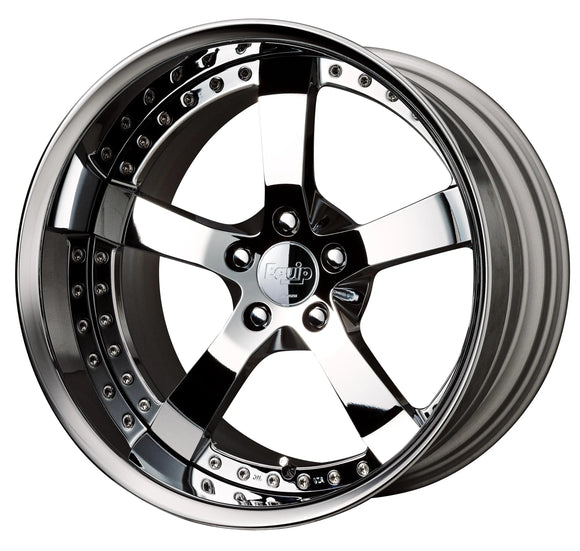

WORK EQUIP E05 is a premium forged 3-piece wheel from WORK Wheels, combining timeless 5-spoke styling with modern forging technology. Designed for luxury sedans, VIP builds, sports cars, and high-end custom vehicles, the EQUIP E05 delivers strong visual presence, deep rim styling, and extensive customization options.

This product page is for the 20-inch FULL REVERSE model in Super Chrome Plated (SC).

Each wheel is built to order in Japan. Please select your desired width, offset, rim structure, and PCD. Final fitment, brake clearance, wheel hardware, and manufacturing availability should be confirmed before production.

Important Lead Time Notice
WORK wheels are built to order. Production lead time is typically 3-8 months and may vary depending on model, size, color, specification, and factory workload.

Key Features

  • Authentic WORK Wheels product made in Japan
  • Forged 3-piece wheel construction
  • Classic EQUIP 5-spoke design
  • FULL REVERSE rim design
  • Super Chrome Plated (SC)
  • Standard, Deep Rim, and Big Caliper configurations
  • Deep rim options up to 195 mm depending on specification
  • TPMS compatible
  • Special PCD available with additional cost
  • Center cap and air valve included

Product Specifications

Brand WORK Wheels
Model EQUIP E05
Diameter 20 inch
Construction Forged 3-Piece
Rim Type FULL REVERSE
Color Super Chrome Plated (SC)
Manufacturing Made in Japan
Forging Method Forged
Included Items Center Cap and Air Valve (V36C)
Standard Rim Finish Buff Anodized Rim
TPMS Compatibility Compatible
JWL Standard JWL-P735KG passenger vehicle standard cleared
Deep Rim Availability Up to 195 mm depending on size and disk configuration

Available Widths

Available 20-inch widths include:

  • 20x7.5J
  • 20x8.0J
  • 20x8.5J
  • 20x9.0J
  • 20x9.5J
  • 20x10.0J
  • 20x10.5J
  • 20x11.0J
  • 20x11.5J
  • 20x12.0J
  • 20x12.5J
  • 20x13.0J
  • 20x13.5J
  • 20x14.0J
  • 20x14.5J
  • 20x15.0J

Offset / Rim Structure

The offset options shown in the variant selector are based on WORK’s published EQUIP E05 20-inch specifications. Each option includes offset, face type, rim structure, and disk type.

Example: +40 E | Standard A-Disk

This specification uses a +40 offset, E Face, Standard rim structure, and A-Disk configuration.

The available face types vary depending on wheel width, offset, and rim depth configuration. Please refer to the WORK specification chart or contact us if you need fitment assistance.

Rim Depth Notice
For 20-inch specifications, when the rim depth is 18 mm, the disk may protrude approximately 4 mm beyond the rim flange. Please confirm fitment carefully before ordering.


Standard PCD
The prices and specifications shown on this product page are based on the standard 5H-114.3 (73.3 mm hub bore) configuration.

If you require a different PCD, please refer to the Special PCD Information section below or contact Kurumaya Tokyo before placing your order.

Special PCD Information

Standard A-Disk 5H-108 to 5H-130
Deep Rim O-Disk 5H-108 to 5H-130
Big Caliper R-Disk 5H-108 to 5H-120.65
Special PCD Additional Cost +¥15,400 / Approx. +USD 110.00 per wheel
Wheel Hardware Notice
For special PCD specifications, please contact Kurumaya Tokyo regarding the correct lug nuts or wheel bolts required for installation.

Custom Order Information

WORK EQUIP E05 is a highly customizable forged wheel. Through WORK's Custom Order Plan, customers may request special specifications such as rim arrangement, semi-order color, special PCD, and other custom configurations.

Construction Forged 3-Piece
Available Sizes 19", 20", 22", 24"
Rim Type FULL REVERSE
Available Colors Silky Rich Silver (SRS), Black Almite (SKB), Super Chrome Plated (SC)
Custom Options Rim Arrangement, Semi Order Color, Special PCD, Rim Laser Tattoo Custom
Optional Features TPMS, Custom Finishes, Rim Arrangement Options
Included Items Center Cap and Air Valve
TPMS Compatibility Compatible
Custom Order Notice
If you would like to order a custom specification such as a special PCD, semi-order color, rim arrangement, TPMS setup, or other non-standard configuration, please contact Kurumaya Tokyo before placing your order.

Custom Order Notes

  • This is a made-to-order wheel.
  • Final fitment should be confirmed before production.
  • Brake clearance depends on disk type and vehicle brake setup.
  • Special PCD availability depends on disk configuration.
  • Special PCD requires an additional cost of ¥15,400 / approx. USD 110.00 per wheel.
  • Correct lug nuts or wheel bolts must be confirmed for special PCD specifications.
  • Manufacturing may not be possible depending on the requested specification.
  • Custom specifications may require additional lead time and additional cost.
  • Custom-order wheels cannot be canceled once production has started.
  • Buff anodized rim is standard.
  • TPMS processing is available.
  • Black Almite (SKB) may have color unevenness or individual color differences due to the manufacturing process. These variations are not covered by product warranty.

Recommended Order Information

To help confirm fitment, please provide your vehicle information after ordering or before purchase:

  • Vehicle make, model, and year
  • Front and rear desired wheel size
  • Desired offset
  • PCD
  • Hub bore information
  • Brake caliper information
  • Required lug nut or wheel bolt type, if known
  • Suspension and fender modification details, if applicable

Shipping

Kurumaya Tokyo ships authentic WORK Wheels directly from Japan. International shipping cost depends on destination, quantity, wheel size, and packaging dimensions.

Price is per wheel.
