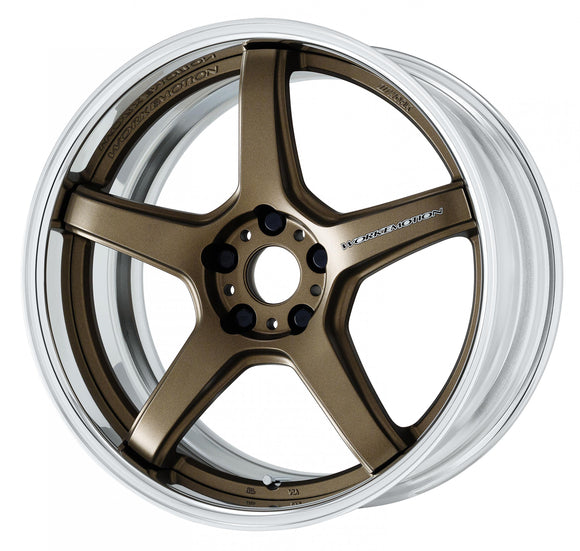

WORK EMOTION T5R 2P — Ashed Titanium (AHG), Middle Concave. WORK's 19 inch FULL REVERSE wheel, shown as a finish reference for 19 inch STEP RIM.

SKU: WORK-EMT5R-2P-19-AHG-8.0-SR-MC

WORK EMOTION T5R 2P 19 Inch STEP RIM – All Colours, Widths and Concaves

$562.25 $679.64 Save $117.39

Shipping calculated at checkout

Width: 19×8.0J
Colour: Ashed Titanium (AHG)
Concave: Middle Concave

The WORK EMOTION T5R 2P in 19 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width, the disc colour and the concave shape here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

Middle Concave and Deep Concave are the same wheel at the same price — WORK machines the disc to sit deeper or shallower in the rim, which changes the face shape and which insets can be built. Middle Concave: R-Disk (BIG CALIPER), L-Disk (BIG CALIPER) · Deep Concave: A-Disk (STANDARD).

Middle Concave inset ranges · Deep Concave inset ranges

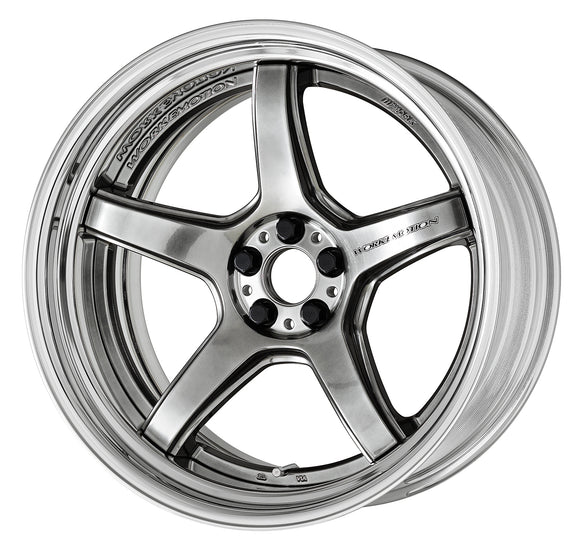

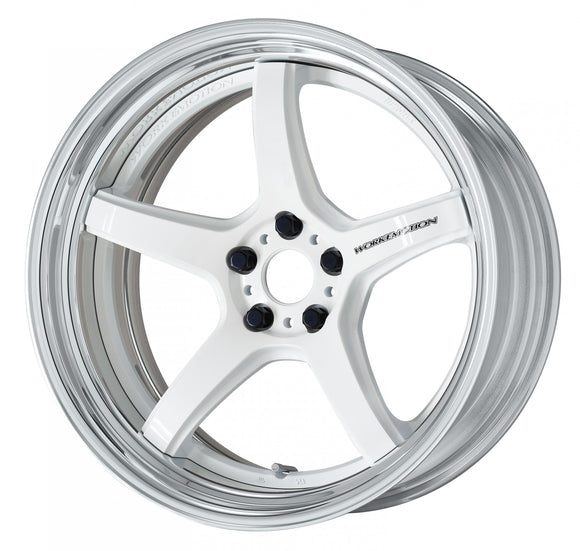

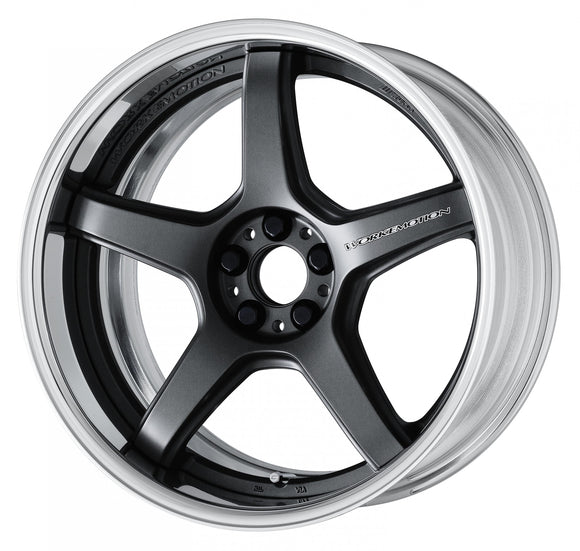

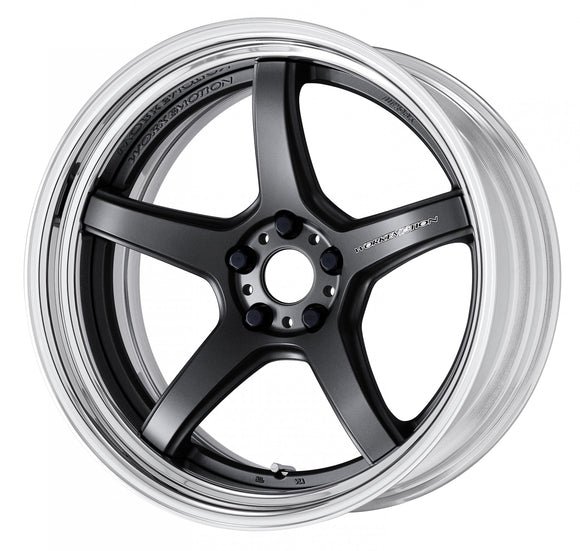

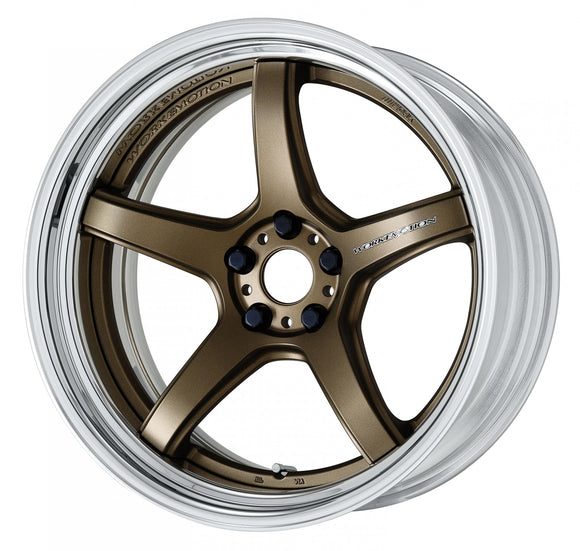

WORK photographs Deep Concave in Glimit Silver at this exact size and rim type. It publishes none of Middle Concave in Ashed Titanium and Mat Carbon and Deep Concave in Ashed Titanium, Mat Carbon and White at this size, so for those the page shows WORK's own photography of another size as a finish reference, labelled as such in each image: Middle Concave in Mat Carbon — from WORK's 18 inch FULL REVERSE wheel; Middle Concave in Ashed Titanium — from WORK's 19 inch FULL REVERSE wheel; Deep Concave in Ashed Titanium, Mat Carbon and White — from WORK's 20 inch STEP RIM wheel. The disc colour and the concave shape in every photo are the ones you are choosing here; only the diameter and rim type differ in the borrowed images. WORK publishes no photograph of Middle Concave in White and Glimit Silver anywhere on this model, at any size, so this page carries none for those combinations: the finish is the same across the concave shapes, but the face is not.

What this page covers

Model WORK EMOTION T5R 2P
Construction 2-piece
Diameter 19 inch
Rim type STEP RIM
Disc colours Ashed Titanium (AHG), Mat Carbon (MGM), White (WHT), Glimit Silver (GTS)
Concave shapes Middle Concave, Deep Concave
Widths 19×8.0J to 19×12.5J (10 widths)
Disk types R-Disk (BIG CALIPER, Middle Concave), L-Disk (BIG CALIPER, Middle Concave), A-Disk (STANDARD, Deep Concave)
P.C.D. R-Disk: 5H-100(60), 5H-114.3(73.3)
L-Disk: 5H-100(60), 5H-114.3(73.3)
A-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. 5H-98〜120.65 — WORK custom order, from ¥8,800 per wheel (about US$62.86)
Hub height clearance R-Disk: 43 mm with the FLAT TYPE cap, 51 mm with the HIGH TYPE cap
L-Disk: 30 mm with the FLAT TYPE cap, 38 mm with the HIGH TYPE cap
A-Disk: 26 mm with the FLAT TYPE cap, 34 mm with the HIGH TYPE cap
Load rating JWL-P720KG
Air valve V24C
Rim finish Buff anodised (standard)
Centre cap Optional item — not included (see below)
WORK catalogue code T5RSR・HRN

What you choose on this page

  • Width, disc colour and concave shape — in the variant picker above.
  • Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Middle Concave — order inset ranges, 19 inch STEP RIM

Width R-Disk — BIG CALIPER
hub height clearance F 43 mm / H 51 mm · 5H-100(60), 5H-114.3(73.3) 		L-Disk — BIG CALIPER
hub height clearance F 30 mm / H 38 mm · 5H-100(60), 5H-114.3(73.3)
Order inset Order inset
19×8.0J +26 to -1rim depth 47–74 mm +39 to +12rim depth 47–74 mm
19×8.5J +33 to -8rim depth 47–88 mm +46 to +5rim depth 47–88 mm
19×9.0J +39 to -14rim depth 47–100 mm +52 to -1rim depth 47–100 mm
19×9.5J +45 to -20rim depth 47–112 mm +58 to -7rim depth 47–112 mm
19×10.0J +52 to -27rim depth 47–126 mm +65 to -14rim depth 47–126 mm
19×10.5J +58 to -33rim depth 47–138 mm +71 to -20rim depth 47–138 mm
19×11.0J +64 to -39rim depth 47–150 mm +77 to -26rim depth 47–150 mm
19×11.5J +71 to -46rim depth 47–164 mm +84 to -33rim depth 47–164 mm
19×12.0J +75 to -52rim depth 49–176 mm +85 to -39rim depth 52–176 mm
19×12.5J +69 to -58rim depth 61–188 mm +82 to -45rim depth 61–188 mm

Deep Concave — order inset ranges, 19 inch STEP RIM

Width A-Disk — STANDARD
hub height clearance F 26 mm / H 34 mm · 5H-100(60), 5H-114.3(73.3)
Order inset
19×8.0J +25 to -2rim depth 48–75 mm
19×8.5J +32 to -9rim depth 48–89 mm
19×9.0J +38 to -15rim depth 48–101 mm
19×9.5J +44 to -21rim depth 48–113 mm
19×10.0J +51 to -28rim depth 48–127 mm
19×10.5J +57 to -34rim depth 48–139 mm
19×11.0J +63 to -40rim depth 48–151 mm
19×11.5J +70 to -47rim depth 48–165 mm
19×12.0J +74 to -53rim depth 50–177 mm
19×12.5J +68 to -59rim depth 62–189 mm

Centre caps — optional, not included

WORK supplies these wheels with one air valve and one WORK sticker per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

WORK part no. Centre cap WORK list price
No.120273 FLAT TYPE Black / Red ring ¥4,950 each
No.120179 FLAT TYPE Silver ¥3,850 each
No.120180 HIGH TYPE Silver ¥3,850 each
No.120186 FLAT TYPE Black ¥3,850 each
No.120187 HIGH TYPE Black ¥3,850 each
No.120219 FLAT TYPE Red ¥3,850 each
No.120220 HIGH TYPE Red ¥3,850 each
No.120250 FLAT TYPE Blue ¥3,850 each
No.120251 HIGH TYPE Blue ¥3,850 each
No.120235 FLAT TYPE W Black ¥3,850 each
No.120279 FLAT TYPE W Black / Navy ring ¥4,950 each
  • Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
  • The hub height clearance table above gives the F figure for the FLAT TYPE cap and the H figure for the HIGH TYPE cap. Those are reference values from the mounting face; on some hub shapes the cap can still touch even below the figure shown.
  • WORK notes that on some vehicles the centre cap cannot be fitted at all.
  • Ask us and we will add the caps you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V24C) and one WORK sticker. The centre cap is not included — it is an optional item, listed above.
  • A buff-anodised rim is the standard finish.
  • Middle Concave: below 77 mm of rim depth the disc sits proud of the rim mating face. WORK notes that there is no protrusion past the rim flange at any depth in this range.
  • Deep Concave: below 81 mm of rim depth the disc sits proud of the rim mating face. WORK notes that there is no protrusion past the rim flange at any depth in this range.
  • WORK notes that the two concave shapes can look slightly different in colour, because the face geometry differs.
  • Rated JWL-P720KG (Japanese passenger-car standard).
  • Special P.C.D. 5H-98〜120.65 is available as a WORK custom order, from ¥8,800 per wheel on top of the listed price. The yen figure is WORK's; we confirm the converted amount on quotation.
  • If you order a special P.C.D., please ask us about the nuts or bolts you intend to use.
  • TPMS is supported on this size. WORK does not offer it on 18×8.0J and narrower.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • Optional black air valve, ¥550 per wheel on top of the listed price.
