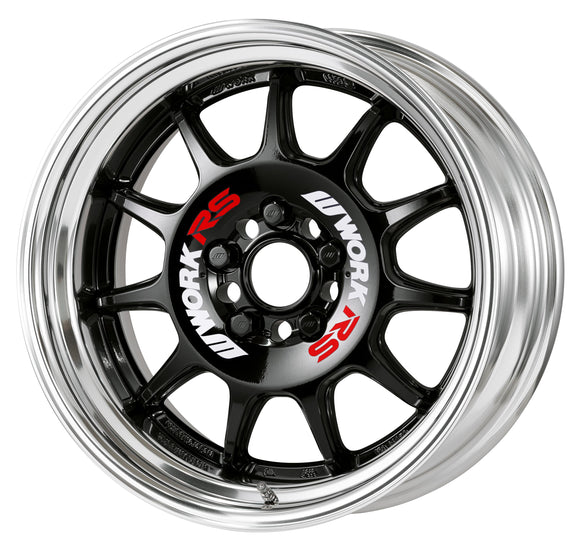

WORK EMOTION RS11 17 inch STEP RIM, Black (BLK) — WORK factory photo

SKU: WORK-EMRS11-2P-17-BLK-6.0-SR

WORK EMOTION RS11 17 Inch STEP RIM – All Colours and Widths

$399.75 $483.21 Save $83.46

Shipping calculated at checkout

Width: 17×6.0J
Colour: Black (BLK)

The WORK EMOTION RS11 in 17 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width and the disc colour here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

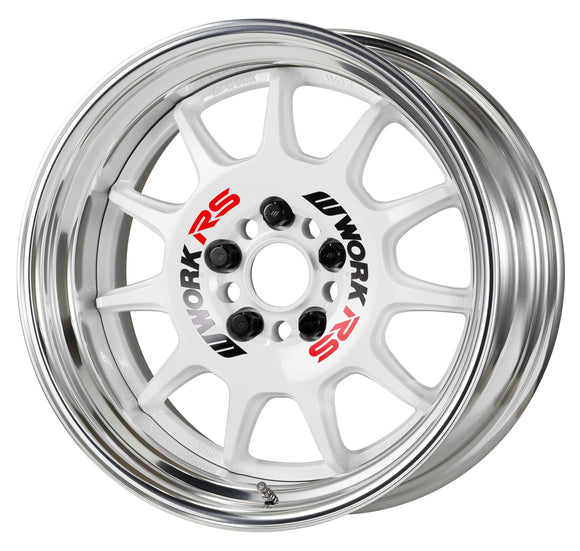

WORK photographs Black, White at this exact size and rim type. Every photo on this page is WORK's own, of this diameter and rim type — none is borrowed from another size.

What this page covers

Model WORK EMOTION RS11
Construction 2-piece
Diameter 17 inch
Rim type STEP RIM
Disc colours Black (BLK), White (WHT)
Widths 17×6.0J to 17×10.5J (10 widths)
Disk types A-Disk (STANDARD), O-Disk (DEEP RIM), R-Disk (BIG CALIPER)
P.C.D. A-Disk: 4H-100(60), 5H-114.3(73.3)
O-Disk: 4H-100(60), 5H-100(60), 5H-114.3(73.3)
R-Disk: 5H-114.3(73.3)
Special P.C.D. WORK prints no special P.C.D. option for this size and rim type
Hub height clearance A-Disk: 39 mm with the FLAT TYPE cap, 47 mm with the HIGH TYPE cap
O-Disk: 31 mm with the FLAT TYPE cap, 39 mm with the HIGH TYPE cap
R-Disk: 51 mm with the FLAT TYPE cap, 59 mm with the HIGH TYPE cap
Load rating WORK prints no JWL rating for this size and rim type
Air valve V41C
Rim finish Buff anodised (standard)
Centre cap Optional item — not included (see below)
WORK catalogue code RSE・HRN

What you choose on this page

  • Width and disc colour — in the variant picker above. WORK builds no concave variants of this model, so there is no concave choice to make.
  • Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Order inset ranges, 17 inch STEP RIM

Width A-Disk — STANDARD
hub height clearance F 39 mm / H 47 mm · 4H-100(60), 5H-114.3(73.3) 		O-Disk — DEEP RIM
hub height clearance F 31 mm / H 39 mm · 4H-100(60), 5H-100(60), 5H-114.3(73.3) 		R-Disk — BIG CALIPER
hub height clearance F 51 mm / H 59 mm · 5H-114.3(73.3)
Order inset Order inset Order inset
17×6.0J +32 to +27rim depth 43–48 mm +40 to +35rim depth 43–48 mm +20 to +15rim depth 43–48 mm
17×6.5J +38 to +21rim depth 43–60 mm +46 to +29rim depth 43–60 mm +26 to +9rim depth 43–60 mm
17×7.0J +45 to +14rim depth 43–74 mm +53 to +22rim depth 43–74 mm +33 to +2rim depth 43–74 mm
17×7.5J +51 to +8rim depth 43–86 mm +59 to +16rim depth 43–86 mm +39 to -4rim depth 43–86 mm
17×8.0J +57 to +2rim depth 43–98 mm +65 to +10rim depth 43–98 mm +45 to -10rim depth 43–98 mm
17×8.5J +64 to -5rim depth 43–112 mm +72 to +3rim depth 43–112 mm +52 to -17rim depth 43–112 mm
17×9.0J +70 to -11rim depth 43–124 mm +78 to -3rim depth 43–124 mm +58 to -23rim depth 43–124 mm
17×9.5J +76 to -17rim depth 43–136 mm +84 to -9rim depth 43–136 mm +64 to -29rim depth 43–136 mm
17×10.0J +83 to -24rim depth 43–150 mm +85 to -16rim depth 49–150 mm +71 to -36rim depth 43–150 mm
17×10.5J +85 to -30rim depth 47–162 mm +85 to -22rim depth 55–162 mm +77 to -42rim depth 43–162 mm

Centre caps — optional, not included

WORK supplies these wheels with one air valve and one disc sticker set per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

WORK part no. Centre cap WORK list price
No.120273 FLAT TYPE Black / Red ring ¥4,950 each
No.120179 FLAT TYPE Silver ¥3,850 each
No.120180 HIGH TYPE Silver ¥3,850 each
No.120186 FLAT TYPE Black ¥3,850 each
No.120187 HIGH TYPE Black ¥3,850 each
No.120219 FLAT TYPE Red ¥3,850 each
No.120220 HIGH TYPE Red ¥3,850 each
No.120250 FLAT TYPE Blue ¥3,850 each
No.120251 HIGH TYPE Blue ¥3,850 each
No.120235 FLAT TYPE W Black ¥3,850 each
No.120279 FLAT TYPE W Black / Navy ring ¥4,950 each
  • Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
  • The hub height clearance table above gives the F figure for the FLAT TYPE cap and the H figure for the HIGH TYPE cap. Those are reference values from the mounting face; on some hub shapes the cap can still touch even below the figure shown.
  • WORK notes that on some vehicles the centre cap cannot be fitted at all.
  • Ask us and we will add the caps you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V41C) and one disc sticker set. The centre cap is not included — it is an optional item, listed above.
  • A buff-anodised rim is the standard finish.
  • At 43 mm of rim depth the disc may protrude very slightly past the rim flange, within WORK's tolerance.
  • WORK prints no JWL load rating for this size and rim type, so we state none. Ask us if you need a rating confirmed for registration.
  • WORK prints no special P.C.D. option and no special P.C.D. charge for this size and rim type. Only the P.C.D.s listed above can be built. WORK's spread for this model carries no 特殊 P.C.D. badge at all.
  • WORK asks that you check the nuts or bolts you intend to use with us before ordering.
  • The standard 5H-114.3 P.C.D. takes M14 mounting bolts, with 60° taper seats.
  • Four-bolt fitment is only partly available on this size: WORK builds A-Disk and O-Disk in 4H-100(60), while R-Disk is five-bolt only. Check the P.C.D. table above before choosing a disk type.
  • TPMS is supported on this size. WORK does not offer it on 16 and 15 inch.
  • The disc sticker set supplied depends on the disc colour WORK builds: a black disc comes with the White · Red / Gunmetal set, a white disc with the Black · Red / Gunmetal set.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • Optional black air valve, ¥550 per wheel on top of the listed price.
