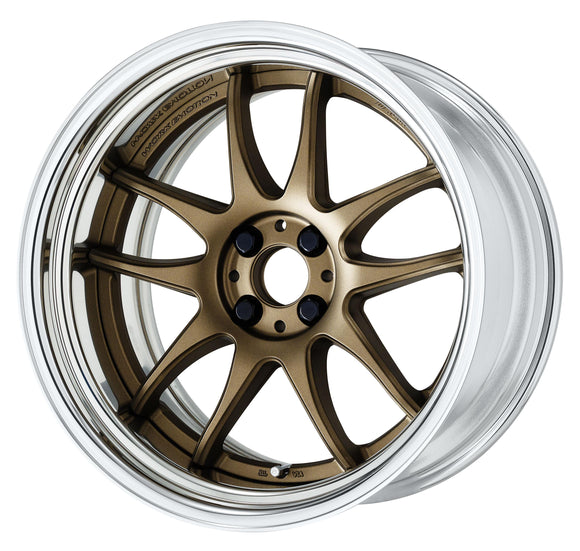

WORK EMOTION CR 2P 18 inch STEP RIM, Ashed Titanium (AHG), Semi Concave — WORK factory photo

SKU: WORK-EMCR-2P-18-AHG-7.5-SR-SC

WORK EMOTION CR 2P 18 Inch STEP RIM – All Colours, Widths and Concaves

$494.00 $597.14 Save $103.14

Shipping calculated at checkout

Width: 18×7.5J
Colour: Ashed Titanium (AHG)
Concave: Semi Concave

The WORK EMOTION CR 2P in 18 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width, the disc colour and the concave shape here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

Semi Concave and Deep Concave are the same wheel at the same price — WORK machines the disc to sit deeper or shallower in the rim, which changes the face shape and which insets can be built. Semi Concave: R-Disk (BIG CALIPER), L-Disk (BIG CALIPER) · Deep Concave: A-Disk (STANDARD).

Semi Concave inset ranges · Deep Concave inset ranges

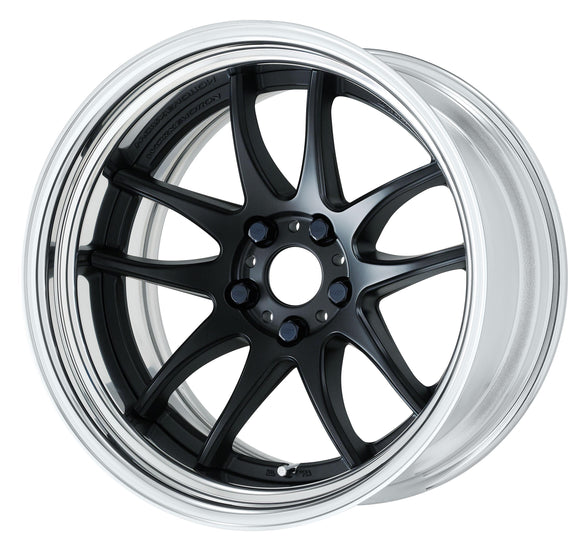

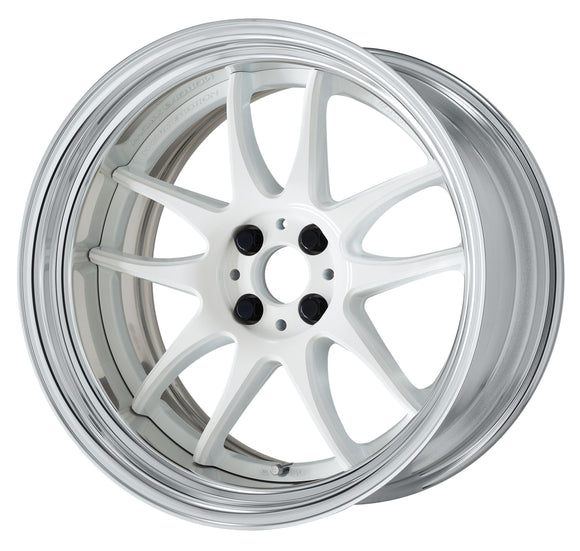

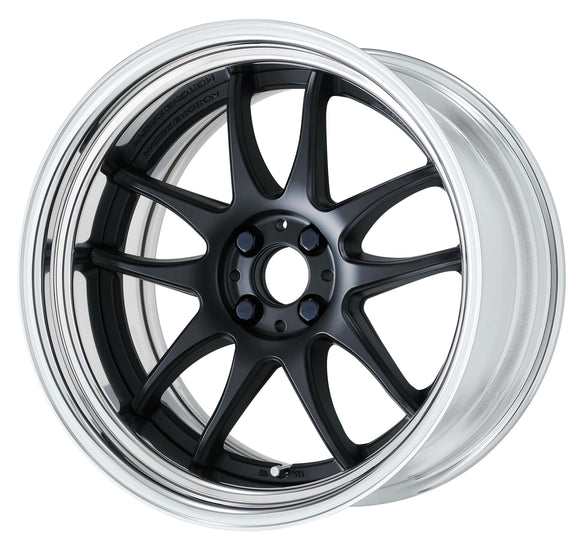

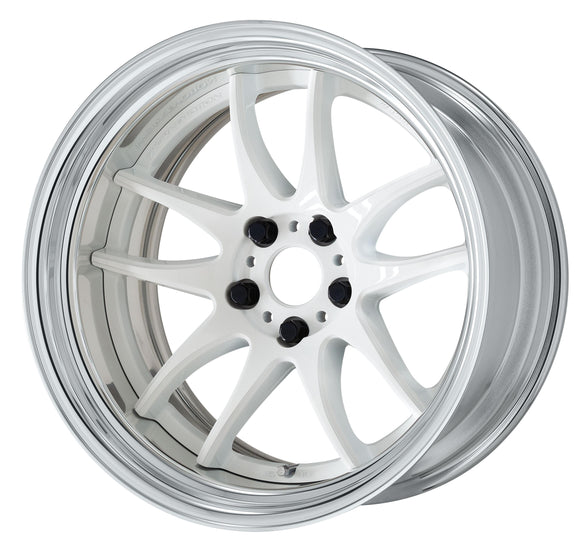

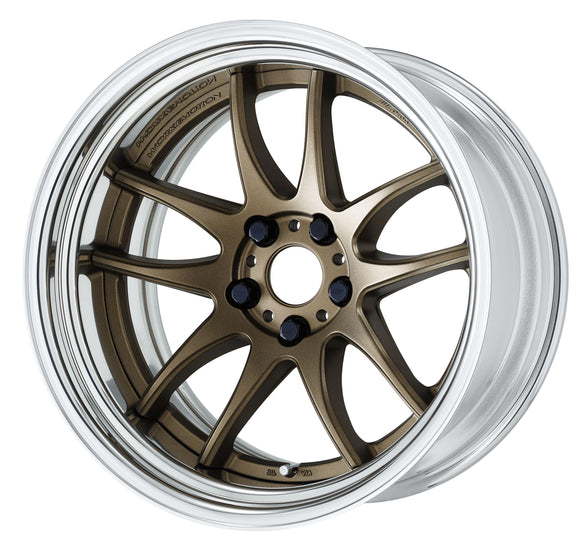

WORK photographs Ashed Titanium, Glimit Silver, Matte Black, White at this exact size and rim type, in Deep Concave and Semi Concave. Every photo on this page is WORK's own, of this diameter and rim type — none is borrowed from another size.

What this page covers

Model WORK EMOTION CR 2P
Construction 2-piece
Diameter 18 inch
Rim type STEP RIM
Disc colours Ashed Titanium (AHG), Matte Black (MBL), White (WHT), Glimit Silver (GTS)
Concave shapes Semi Concave, Deep Concave
Widths 18×7.5J to 18×11.5J (9 widths)
Disk types R-Disk (BIG CALIPER, Semi Concave), L-Disk (BIG CALIPER, Semi Concave), A-Disk (STANDARD, Deep Concave)
P.C.D. R-Disk: 5H-100(60), 5H-114.3(73.3)
L-Disk: 4H-100(60), 5H-100(60), 5H-114.3(73.3)
A-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. 4H-98〜100 and 5H-98〜115 — WORK custom order, from ¥8,800 per wheel (about US$62.86)
Hub height clearance R-Disk: 46 mm with the FLAT TYPE cap, 54 mm with the HIGH TYPE cap
L-Disk: 33 mm with the FLAT TYPE cap, 41 mm with the HIGH TYPE cap
A-Disk: 26 mm with the FLAT TYPE cap, 34 mm with the HIGH TYPE cap
Load rating WORK prints no JWL rating for this size and rim type
Air valve V27C
Rim finish Buff anodised (standard)
Centre cap Optional item — not included (see below)
WORK catalogue code ECRSR・HRN

What you choose on this page

  • Width, disc colour and concave shape — in the variant picker above.
  • Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Semi Concave — order inset ranges, 18 inch STEP RIM

Width R-Disk — BIG CALIPER
hub height clearance F 46 mm / H 54 mm · 5H-100(60), 5H-114.3(73.3) 		L-Disk — BIG CALIPER
hub height clearance F 33 mm / H 41 mm · 4H-100(60), 5H-100(60), 5H-114.3(73.3)
Order inset Order inset
18×7.5J +20 to +5rim depth 47–62 mm +33 to +18rim depth 47–62 mm
18×8.0J +26 to -1rim depth 47–74 mm +39 to +12rim depth 47–74 mm
18×8.5J +33 to -8rim depth 47–88 mm +46 to +5rim depth 47–88 mm
18×9.0J +39 to -14rim depth 47–100 mm +52 to -1rim depth 47–100 mm
18×9.5J +45 to -20rim depth 47–112 mm +58 to -7rim depth 47–112 mm
18×10.0J +52 to -27rim depth 47–126 mm +65 to -14rim depth 47–126 mm
18×10.5J +58 to -33rim depth 47–138 mm +71 to -20rim depth 47–138 mm
18×11.0J +64 to -39rim depth 47–150 mm +77 to -26rim depth 47–150 mm
18×11.5J +71 to -46rim depth 47–164 mm +84 to -33rim depth 47–164 mm

Deep Concave — order inset ranges, 18 inch STEP RIM

Width A-Disk — STANDARD
hub height clearance F 26 mm / H 34 mm · 5H-100(60), 5H-114.3(73.3)
Order inset
18×7.5J +17 to +2rim depth 47–62 mm
18×8.0J +23 to -4rim depth 47–74 mm
18×8.5J +30 to -11rim depth 47–88 mm
18×9.0J +36 to -17rim depth 47–100 mm
18×9.5J +42 to -23rim depth 47–112 mm
18×10.0J +49 to -30rim depth 47–126 mm
18×10.5J +55 to -36rim depth 47–138 mm
18×11.0J +61 to -42rim depth 47–150 mm
18×11.5J +68 to -49rim depth 47–164 mm

Centre caps — optional, not included

WORK supplies these wheels with one air valve per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

WORK part no. Centre cap WORK list price
No.120273 FLAT TYPE Black / Red ring ¥4,950 each
No.120179 FLAT TYPE Silver ¥3,850 each
No.120180 HIGH TYPE Silver ¥3,850 each
No.120186 FLAT TYPE Black ¥3,850 each
No.120187 HIGH TYPE Black ¥3,850 each
No.120219 FLAT TYPE Red ¥3,850 each
No.120220 HIGH TYPE Red ¥3,850 each
No.120250 FLAT TYPE Blue ¥3,850 each
No.120251 HIGH TYPE Blue ¥3,850 each
No.120235 FLAT TYPE W Black ¥3,850 each
No.120279 FLAT TYPE W Black / Navy ring ¥4,950 each
  • Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
  • The hub height clearance table above gives the F figure for the FLAT TYPE cap and the H figure for the HIGH TYPE cap. Those are reference values from the mounting face; on some hub shapes the cap can still touch even below the figure shown.
  • WORK notes that on some vehicles the centre cap cannot be fitted at all.
  • Ask us and we will add the caps you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V27C). The centre cap is not included — it is an optional item, listed above.
  • A buff-anodised rim is the standard finish.
  • Semi Concave: below 66 mm of rim depth the disc sits proud of the rim mating face. WORK notes that there is no protrusion past the rim flange at any depth in this range.
  • Deep Concave: below 73 mm of rim depth the disc sits proud of the rim mating face. WORK notes that there is no protrusion past the rim flange at any depth in this range.
  • WORK notes that the two concave shapes can look slightly different in colour, because the face geometry differs.
  • WORK prints no JWL load rating for this size and rim type, so we state none. Ask us if you need a rating confirmed for registration.
  • Special P.C.D. 4H-98〜100 and 5H-98〜115 is available as a WORK custom order, from ¥8,800 per wheel on top of the listed price. The yen figure is WORK's; we confirm the converted amount on quotation.
  • If you order a special P.C.D., please ask us about the nuts or bolts you intend to use.
  • Four-bolt fitment is only partly available on this size: WORK builds L-Disk in 4H-100(60), while R-Disk and A-Disk are five-bolt only. Check the P.C.D. table above before choosing a disk type.
  • TPMS is available on this page from 18×8.5J upwards. WORK does not offer it on 18×8.0J and narrower, so it cannot be fitted to 18×7.5J and 18×8.0J. It is not offered on 17 and 16 inch FULL REVERSE either.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • Optional black air valve, ¥550 per wheel on top of the listed price.
