WORK EMOTION CR 2P — Ashed Titanium (AHG), Semi Concave. WORK's 17 inch FULL REVERSE wheel, shown as a finish reference for 18 inch FULL REVERSE.

SKU: WORK-EMCR-2P-18-AHG-7.0-FR-RDISK

WORK EMOTION CR 2P 18 Inch FULL REVERSE

$487.50 $589.29 Save $101.79

Shipping calculated at checkout

Width: 18×7.0J
Colour: Ashed Titanium (AHG)
Disk: R-Disk · Semi Concave · Big Caliper

The WORK EMOTION CR 2P in 18 inch FULL REVERSE, built to order in Japan. A genuine two-piece WORK wheel: choose the width, the disc colour and the disk here, then tell us the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

Semi Concave and Deep Concave are the same wheel at the same price — WORK machines the disc to sit deeper or shallower in the rim, which changes the face shape and which insets can be built. Semi Concave: R-Disk (BIG CALIPER), L-Disk (BIG CALIPER) · Deep Concave: A-Disk (STANDARD).

Semi Concave inset ranges · Deep Concave inset ranges

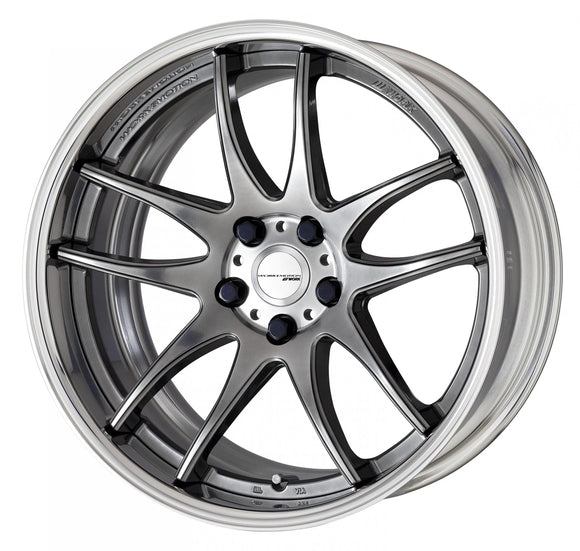

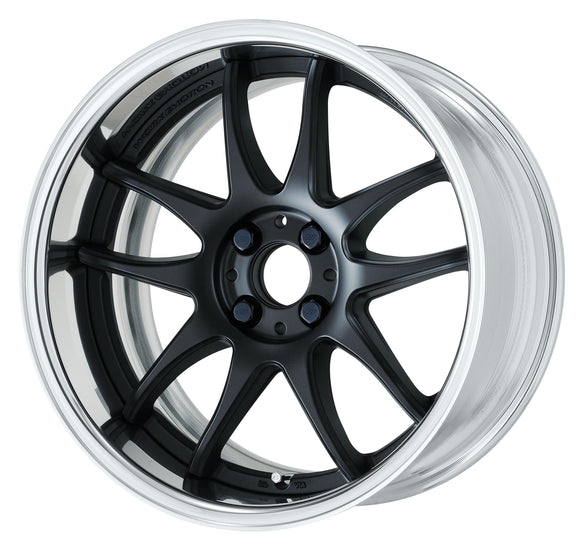

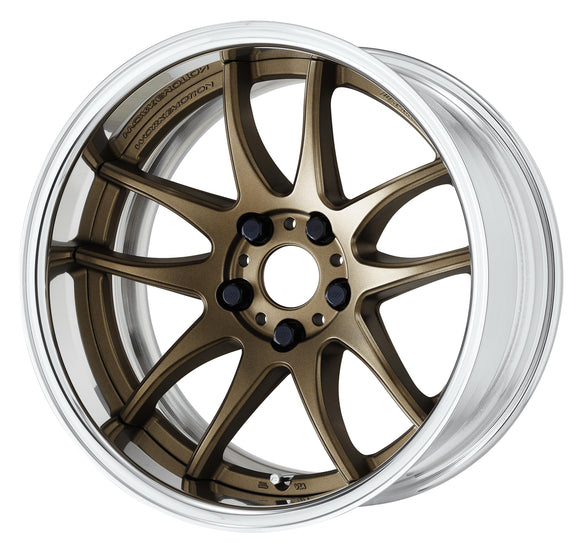

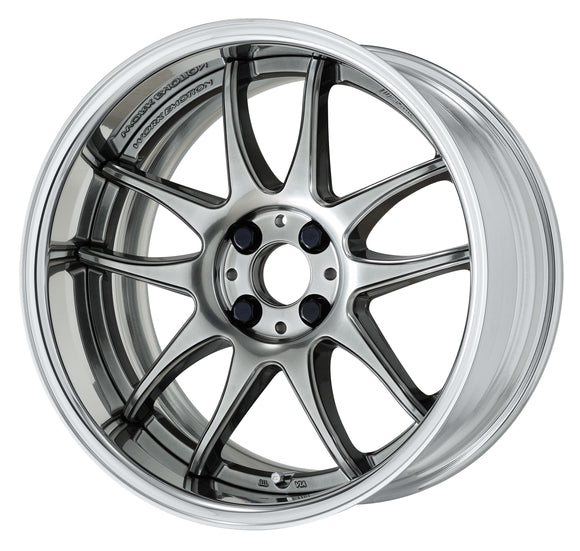

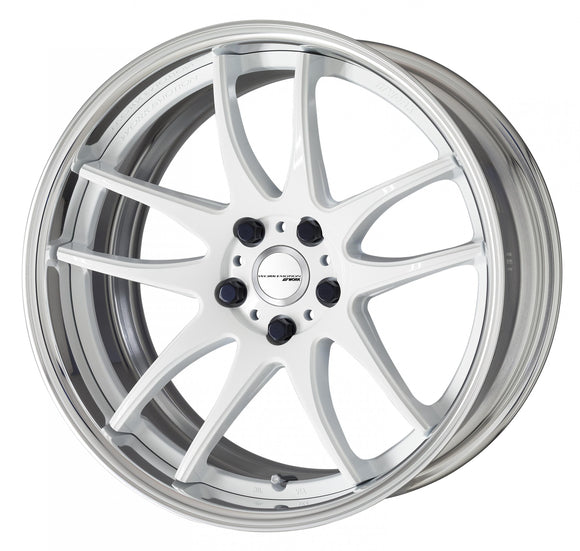

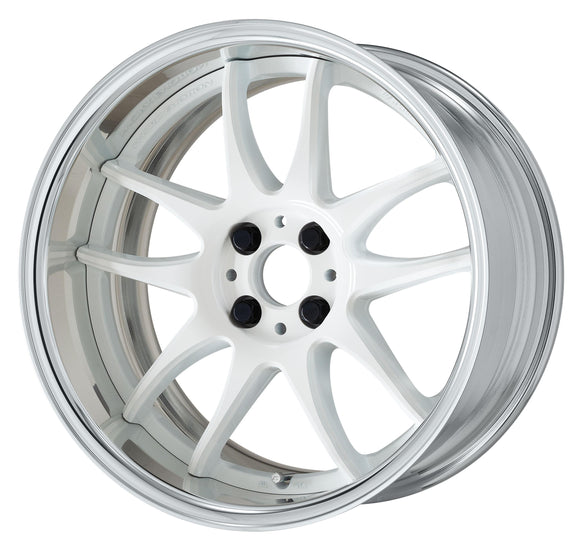

WORK publishes no photograph of this wheel in 18 inch FULL REVERSE, so every photo on this page is WORK's own photography of another size, shown as a finish reference and labelled as such in each image: Semi Concave in Ashed Titanium, Matte Black, White and Glimit Silver and Deep Concave in Ashed Titanium and Matte Black — from WORK's 17 inch FULL REVERSE wheel; Deep Concave in White and Glimit Silver — from WORK's 19 inch FULL REVERSE wheel. The disc colour and the concave shape in every photo are the ones you are choosing here; only the diameter and rim type differ in the borrowed images.

What this page covers

Model WORK EMOTION CR 2P
Construction 2-piece
Diameter 18 inch
Rim type FULL REVERSE
Disc colours Ashed Titanium (AHG), Matte Black (MBL), White (WHT), Glimit Silver (GTS)
Concave shapes Semi Concave, Deep Concave
Widths 18×7.0J to 18×12.5J (12 widths)Deep Concave is not built at 18×7.0J
Disk types R-Disk (BIG CALIPER, Semi Concave), L-Disk (BIG CALIPER, Semi Concave), A-Disk (STANDARD, Deep Concave)
P.C.D. R-Disk: 5H-100(60), 5H-114.3(73.3)
L-Disk: 5H-100(60), 5H-114.3(73.3)
A-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. 5H-98〜115 — WORK custom order, from ¥8,800 per wheel (about US$52.00)
Hub height clearance R-Disk: 43 mm with the FLAT TYPE cap, 51 mm with the HIGH TYPE cap
L-Disk: 30 mm with the FLAT TYPE cap, 38 mm with the HIGH TYPE cap
A-Disk: 26 mm with the FLAT TYPE cap, 34 mm with the HIGH TYPE cap
Load rating WORK prints no JWL rating for this size and rim type
Air valve V27C
Rim finish Buff anodised (standard)
Centre cap Optional item — not included (see below)
WORK catalogue code ECR2P・HRH

What you choose on this page

  • Width, disc colour and disk — in the variant picker above. The disk sets the concave shape: R-Disk and L-Disk are Semi Concave, A-Disk is Deep Concave.
  • WORK does not build the A-Disk (Deep Concave) at 18×7.0J, so that width is offered on the R-Disk and L-Disk only.
  • Inset — enter it in the inquiry form below, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Semi Concave — order inset ranges, 18 inch FULL REVERSE

Width R-Disk — BIG CALIPER
hub height clearance F 43 mm / H 51 mm · 5H-100(60), 5H-114.3(73.3) 		L-Disk — BIG CALIPER
hub height clearance F 30 mm / H 38 mm · 5H-100(60), 5H-114.3(73.3)
Order inset Order inset
18×7.0J +22 to +17rim depth 35–40 mm +35 to +30rim depth 35–40 mm
18×7.5J +28 to +16rim depth 35–47 mm +41 to +29rim depth 35–47 mm
18×8.0J +34 to +10rim depth 35–59 mm +47 to +23rim depth 35–59 mm
18×8.5J +41 to +9rim depth 35–67 mm +54 to +22rim depth 35–67 mm
18×9.0J +47 to +3rim depth 35–79 mm +60 to +16rim depth 35–79 mm
18×9.5J +53 to -3rim depth 35–91 mm +66 to +10rim depth 35–91 mm
18×10.0J +60 to -10rim depth 35–105 mm +73 to +3rim depth 35–105 mm
18×10.5J +66 to -16rim depth 35–117 mm +79 to -3rim depth 35–117 mm
18×11.0J +72 to -22rim depth 35–129 mm +85 to -9rim depth 35–129 mm
18×11.5J +78 to -29rim depth 36–143 mm +85 to -16rim depth 42–143 mm
18×12.0J +72 to -35rim depth 48–155 mm +85 to -22rim depth 48–155 mm
18×12.5J +66 to -41rim depth 60–167 mm +79 to -28rim depth 60–167 mm

Deep Concave — order inset ranges, 18 inch FULL REVERSE

Width A-Disk — STANDARD
hub height clearance F 26 mm / H 34 mm · 5H-100(60), 5H-114.3(73.3)
Order inset
18×7.5J +23 to +19rim depth 43–47 mm
18×8.0J +29 to +13rim depth 43–59 mm
18×8.5J +36 to +12rim depth 43–67 mm
18×9.0J +42 to +6rim depth 43–79 mm
18×9.5J +48 to ±0rim depth 43–91 mm
18×10.0J +55 to -7rim depth 43–105 mm
18×10.5J +61 to -13rim depth 43–117 mm
18×11.0J +67 to -19rim depth 43–129 mm
18×11.5J +74 to -26rim depth 43–143 mm
18×12.0J +75 to -32rim depth 48–155 mm
18×12.5J +69 to -38rim depth 60–167 mm

Centre caps — optional, not included

WORK supplies these wheels with one air valve per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

WORK part no. Centre cap WORK list price
No.120273 FLAT TYPE Black / Red ring ¥4,950 each
No.120179 FLAT TYPE Silver ¥3,850 each
No.120180 HIGH TYPE Silver ¥3,850 each
No.120186 FLAT TYPE Black ¥3,850 each
No.120187 HIGH TYPE Black ¥3,850 each
No.120219 FLAT TYPE Red ¥3,850 each
No.120220 HIGH TYPE Red ¥3,850 each
No.120250 FLAT TYPE Blue ¥3,850 each
No.120251 HIGH TYPE Blue ¥3,850 each
No.120235 FLAT TYPE W Black ¥3,850 each
No.120279 FLAT TYPE W Black / Navy ring ¥4,950 each
  • Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
  • The hub height clearance table above gives the F figure for the FLAT TYPE cap and the H figure for the HIGH TYPE cap. Those are reference values from the mounting face; on some hub shapes the cap can still touch even below the figure shown.
  • WORK notes that on some vehicles the centre cap cannot be fitted at all.
  • Ask us and we will add the caps you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V27C). The centre cap is not included — it is an optional item, listed above.
  • A buff-anodised rim is the standard finish.
  • Semi Concave: below 40 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • Deep Concave: below 47 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • WORK notes that the two concave shapes can look slightly different in colour, because the face geometry differs.
  • WORK prints no JWL load rating for this size and rim type, so we state none. Ask us if you need a rating confirmed for registration.
  • Special P.C.D. 5H-98〜115 is available as a WORK custom order, from ¥8,800 per wheel on top of the listed price. The yen figure is WORK's; we confirm the converted amount on quotation.
  • If you order a special P.C.D., please ask us about the nuts or bolts you intend to use.
  • TPMS is available on this page from 18×8.5J upwards, and WORK's processing for it is free. WORK does not offer it on 18×8.0J and narrower, so it cannot be fitted to 18×7.0J, 18×7.5J and 18×8.0J. It is not offered on 17 and 16 inch FULL REVERSE either.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • Optional black air valve, ¥550 per wheel on top of the listed price.
Fitment. Please choose your size and offset at your own discretion. Wheel regulations differ by country, and how far a wheel sits outside the fender depends on ride height and personal preference. We are glad to advise — ask us before you order — but the final choice of size and offset rests with the customer. Any vehicle examples shown are reference sizes only.
