The WORK EMOTION CR 2P in 16 inch FULL REVERSE, built to order in Japan. A genuine two-piece WORK wheel: choose the width, the disc colour and the concave shape here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.
Four-bolt fitment only — WORK builds every disk on this size and rim type in 4H-100(60) and nothing else. These wheels fit 4×100 hubs. They cannot be built for a five-bolt fitment — there is no 5H-100 or 5H-114.3 disc for this diameter and rim type. WORK prints no special P.C.D. option for this size either, so a five-bolt disc cannot be ordered as a custom P.C.D. If your car is five-bolt, please ask us about another size in this model.
Semi Concave and Deep Concave are the same wheel at the same price — WORK machines the disc to sit deeper or shallower in the rim, which changes the face shape and which insets can be built. Semi Concave: R-Disk (BIG CALIPER), L-Disk (BIG CALIPER) · Deep Concave: A-Disk (STANDARD).
Semi Concave inset ranges · Deep Concave inset ranges

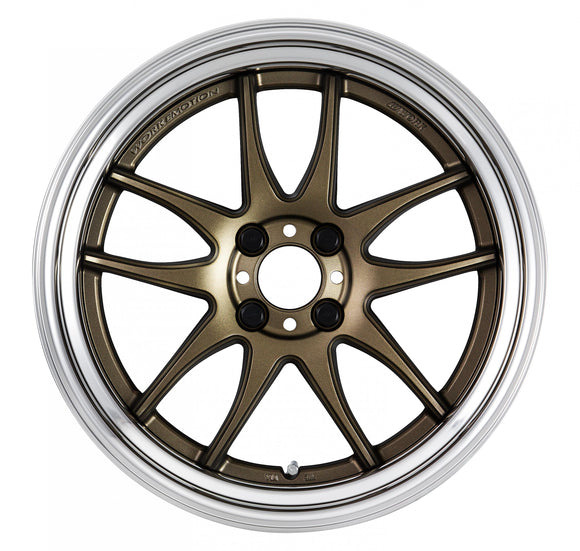

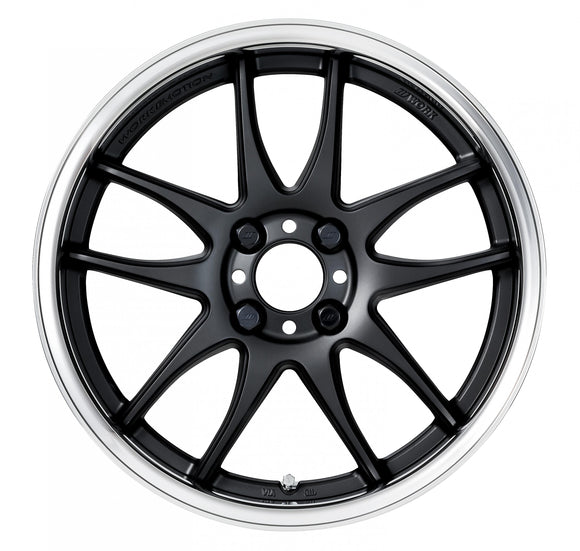

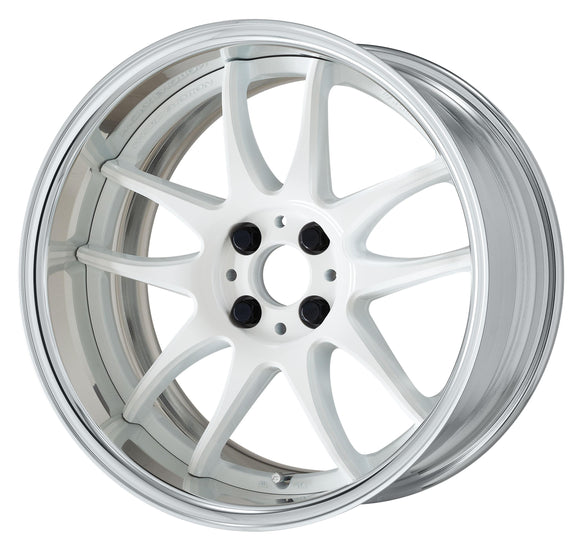

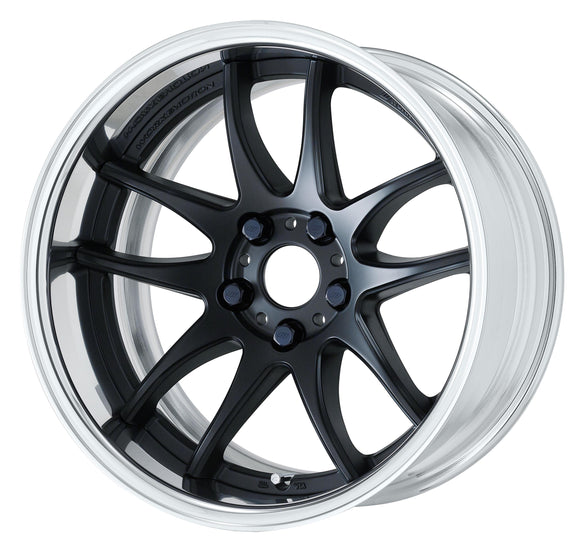

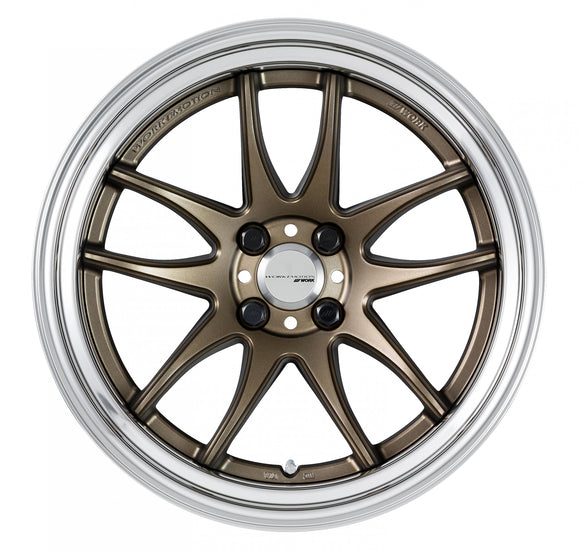

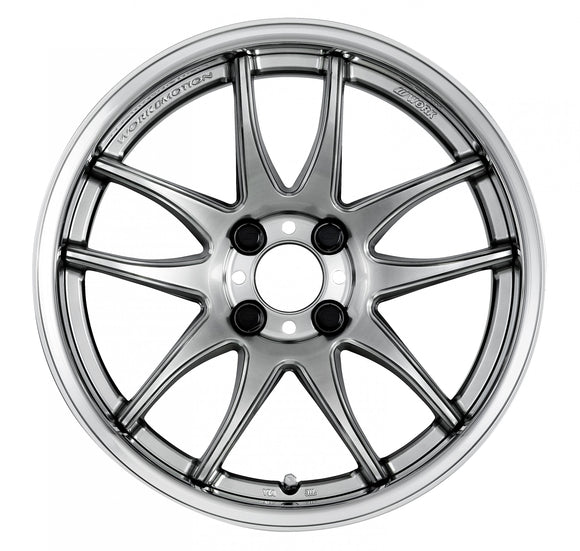

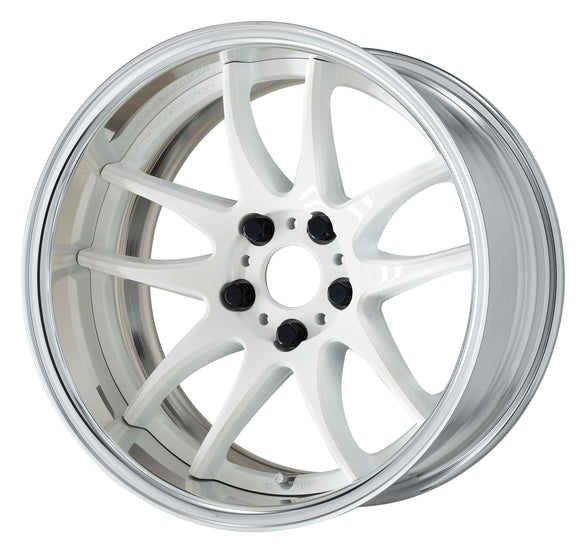

WORK photographs Semi Concave in Matte Black and Deep Concave in Crystal Silver at this exact size and rim type. It publishes none of Semi Concave in Ashed Titanium and White and Deep Concave in Ashed Titanium, Matte Black and White at this size, so for those the page shows WORK's own photography of another size as a finish reference, labelled as such in each image: Semi Concave in White and Deep Concave in Matte Black and White — from WORK's 17 inch FULL REVERSE wheel; Semi Concave in Ashed Titanium and Deep Concave in Ashed Titanium — from WORK's 17 inch STEP RIM wheel. The disc colour and the concave shape in every photo are the ones you are choosing here; only the diameter and rim type differ in the borrowed images. WORK publishes no photograph of Semi Concave in Crystal Silver anywhere on this model, at any size, so this page carries none for that combination: the finish is the same across the concave shapes, but the face is not.
What this page covers
| Model |
WORK EMOTION CR 2P |
| Construction |
2-piece |
| Diameter |
16 inch |
| Rim type |
FULL REVERSE |
| Disc colours |
Ashed Titanium (AHG2), Matte Black (MBL), White (WHT), Crystal Silver (CS) |
| Concave shapes |
Semi Concave, Deep Concave |
| Widths |
16×5.5J to 16×9.0J (7 widths)Deep Concave is not built at 16×5.5J
|
| Disk types |
R-Disk (BIG CALIPER, Semi Concave), L-Disk (BIG CALIPER, Semi Concave), A-Disk (STANDARD, Deep Concave) |
| P.C.D. |
R-Disk: 4H-100(60)
L-Disk: 4H-100(60)
A-Disk: 4H-100(60) |
| Special P.C.D. |
WORK prints no special P.C.D. option for this size and rim type |
| Hub height clearance |
R-Disk: 34 mm with the FLAT TYPE cap, 42 mm with the HIGH TYPE cap
L-Disk: 24 mm with the FLAT TYPE cap, 32 mm with the HIGH TYPE cap
A-Disk: 25 mm with the FLAT TYPE cap, 33 mm with the HIGH TYPE cap |
| Load rating |
WORK prints no JWL rating for this size and rim type |
| Air valve |
V16C |
| Rim finish |
Buff anodised (standard) |
| Centre cap |
Optional item — not included (see below) |
| WORK catalogue code |
ECR2P・HRH |
What you choose on this page
-
Width, disc colour and concave shape — in the variant picker above.
- WORK does not build Deep Concave at 16×5.5J, so that width is offered in Semi Concave only.
-
Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
-
Quantity — the price shown is for one wheel.
Semi Concave — order inset ranges, 16 inch FULL REVERSE
Deep Concave — order inset ranges, 16 inch FULL REVERSE
Centre caps — optional, not included
WORK supplies these wheels with one air valve per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:
- Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
- The hub height clearance table above gives the F figure for the FLAT TYPE cap and the H figure for the HIGH TYPE cap. Those are reference values from the mounting face; on some hub shapes the cap can still touch even below the figure shown.
- WORK notes that on some vehicles the centre cap cannot be fitted at all.
- Ask us and we will add the caps you want to the order.
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time.
- Each wheel comes with one air valve (V16C). The centre cap is not included — it is an optional item, listed above.
- A buff-anodised rim is the standard finish.
- Semi Concave: below 31 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
- Deep Concave: below 40 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
- WORK notes that the two concave shapes can look slightly different in colour, because the face geometry differs.
- WORK prints no JWL load rating for this size and rim type, so we state none. Ask us if you need a rating confirmed for registration.
- WORK prints no special P.C.D. option and no special P.C.D. charge for this size and rim type. Only the P.C.D.s listed above can be built. WORK's 特殊 P.C.D. badge on this spread is marked ※17inch STEP RIM/16inch除く — 17 inch STEP RIM and 16 inch are excluded from it.
-
TPMS is not offered on this size. WORK's TPMS badge on this spread reads 18×8.0J以下, 17/16inch FULL REVERSE 除く, which rules out 16 inch FULL REVERSE entirely.
- WORK prints that Crystal Silver (CS) is exclusive to 17 inch STEP RIM and 16 inch in this model. It is not offered on the other sizes of the CR 2P spread.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
- Optional black air valve, ¥550 per wheel on top of the listed price.
