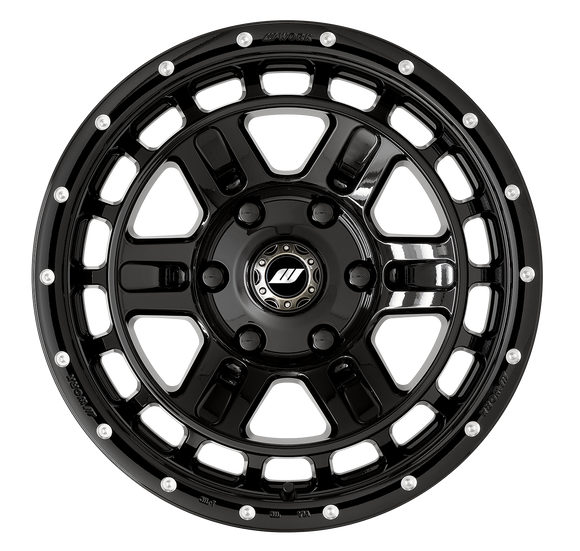

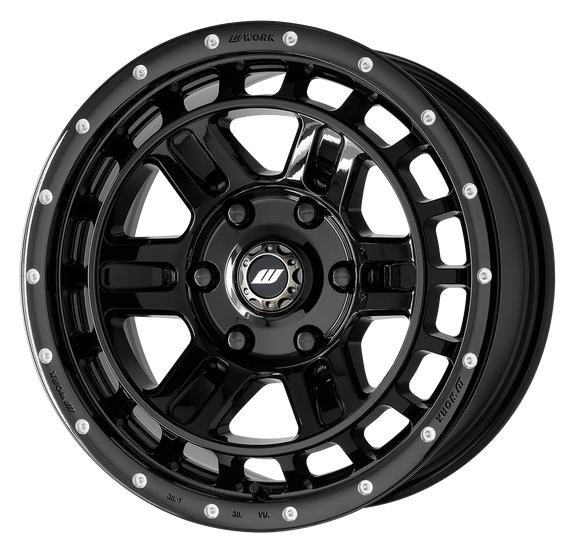

WORK CRAG T-GRABIC2 MC+ — Black Pierce Machining (BLKPM), 17 inch 8.0J +20

SKU: WORK-CRTG2-1P-17-BLKPM-7.0-32-5H1143

WORK CRAG T-GRABIC2 MC+ 17 Inch – All Widths and Configurations

$347.75 $420.36 Save $72.61

Shipping calculated at checkout

Size: 17×7.0J
Configuration: 5H-114.3 · +32

The WORK CRAG T-GRABIC2 MC+ in 17 inch, built to order in Japan. A genuine one-piece WORK wheel — cast as a single unit, disc and rim together — on a NORMAL rim. WORK fixes the inset for each specification on a one-piece wheel: there is no rim depth to choose and no order-inset range, so what you pick here is the complete wheel.

Before you order

  • This page carries more than one bolt pattern — 5H-114.3, 6H-139.7. The Configuration selector names the bolt pattern for the specification you are buying. Check it against your car before you order; a P.C.D. on its own does not confirm fitment.
  • Wheel nuts are not part of the wheel price. See the accessories section below for exactly what WORK does and does not supply.

What this page covers

Model WORK CRAG T-GRABIC2 MC+
WORK model name CRAG T-GRABIC2 MC+The name exactly as WORK prints it. We prefix the manufacturer.
Construction 1-piece
Diameter 17 inch
Rim type NORMAL
Colour Black Pierce Machining (BLKPM)WORK offers this model in one finish only.
Sizes 17×7.0J, 17×8.0J (2 widths)
P.C.D. 5H-114.3(73.3) — at 17×7.0J, inset +32
6H-139.7(106) — at 17×8.0J, inset +20
Centre bore 73.3 mm — 5H-114.3
106 mm — 6H-139.7
Inset Fixed by WORK per specification — +20, +32. There is no order-inset range on this model.
Hub height clearance 50 mm — at 17×7.0J, 5H-114.3 · +32
43 mm — at 17×8.0J, 6H-139.7 · +20WORK prints this in brackets beside the inset. It is the clearance behind the centre cap, not a fitment figure.
Special P.C.D. Not offered. WORK prints no special P.C.D. column and no up-charge on this model, so only the bolt patterns above can be built.
Load rating WORK states that CRAG T-GRABIC2 MC+ in 6H-139.7 clears JWL (VIA-P800KG) and JWL-T (VIA-T955KG).WORK prints that line for 6H-139.7 only, and 6H-139.7 is on this page — it does not extend to the other bolt patterns.
TPMS Not compatible. WORK marks TPMS support on the models that have it, on its own specification panel. WORK does not mark this model, so we do not fit or process TPMS sensors for it.
WORK catalogue code CGTG2K

What you choose on this page

  • Size — the diameter and rim width.
  • Colour is fixed at Black Pierce Machining (BLKPM) — WORK offers no other finish on this model.
  • Configuration — the bolt pattern and the inset. On a one-piece wheel WORK fixes these together, so this is one choice, not two.
  • Quantity — the price shown is for one wheel.

WORK's specification table — 17 inch

This is WORK's own table for this diameter, reproduced as printed. Every row on it is a selectable item above.

Size H-P.C.D. (centre bore) mm Inset [ Hub height clearance ] mm

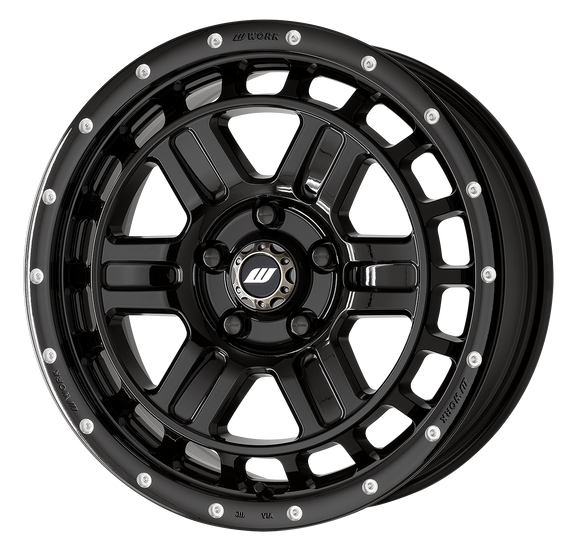

17×7.0J 5H-114.3(73.3) +32 [50]
17×8.0J 6H-139.7(106) +20 [43]

The price for each of these is the one shown in the picker above, per wheel, in USD.

What comes with the wheel

Included — WORK's own included-items line, as printed:

  • Centre cap — one per wheel, except in 5H-139.7, which WORK supplies with no centre cap.
  • Air valve — one per wheel, WORK part V35K2.

Wheel nuts — we confirm before quoting. WORK's two sources disagree on this model: the catalogue's included-items line lists the centre cap and the air valve only, and refers you to the nut section of the catalogue separately, while the parts panel on WORK's own product page marks the WORK LOCK NUT SET as standard. We will not tell you nuts are included on the strength of a source that contradicts the price list. Ask us and we will put it to WORK and confirm in writing before you order.

Repair parts — WORK supplies these separately, by part number. Ask us and we will quote them with the wheels:

  • №120242 — Centre cap (cannot be fitted to 5H-139.7).
  • №180104 — Black air valve (V35K2).

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
  • WORK lists no custom-order plans and no options for this model — its own specification panel records none for either. What is on this page is what WORK builds.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • Photographs are WORK's own. Screen colour is not a colour match — ask us if the exact finish matters.
