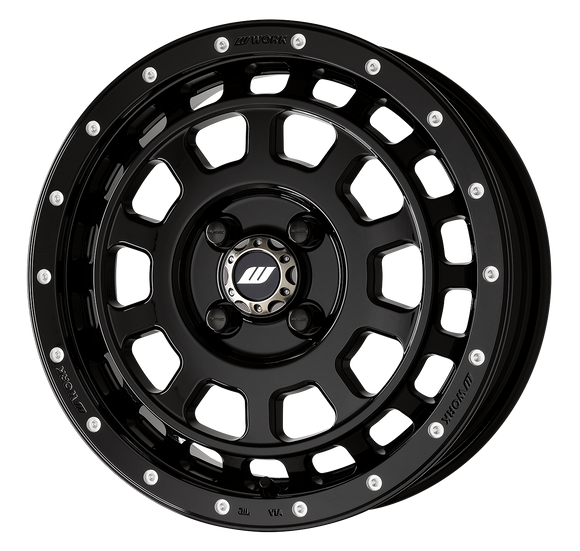

The WORK CRAG T-GRABIC MC+ in 15 inch, built to order in Japan. A genuine one-piece WORK wheel — cast as a single unit, disc and rim together — on a NORMAL rim. WORK fixes the inset for each specification on a one-piece wheel: there is no rim depth to choose and no order-inset range, so what you pick here is the complete wheel.
Before you order
-
Bolt pattern: 4H-100. Check it against your car before you order — a P.C.D. on its own does not confirm fitment. Send us your vehicle and year and we will check it with you.
-
The disc stands 2 mm proud of the rim flange at 15×5.0J. WORK prints this warning itself and it is a consequence of the disc design. Allow for it when you check clearance.
-
Wheel nuts are not part of the wheel price. See the accessories section below for exactly what WORK does and does not supply.
What this page covers
| Model |
WORK CRAG T-GRABIC MC+ |
| WORK model name |
CRAG T-GRABIC MC+The name exactly as WORK prints it. We prefix the manufacturer.
|
| Construction |
1-piece |
| Diameter |
15 inch |
| Rim type |
NORMAL |
| Colour |
Black Pierce Machining (BLKPM)WORK offers this model in one finish only.
|
| Sizes |
15×5.0JWORK builds this model in one size at this diameter.
|
| P.C.D. |
4H-100(60) — at 15×5.0J, inset +45 |
| Centre bore |
60 mm — 4H-100 |
| Inset |
Fixed by WORK per specification — +45. There is no order-inset range on this model.
|
| Hub height clearance |
36 mm — at 15×5.0J, 4H-100 · +45WORK prints this in brackets beside the inset. It is the clearance behind the centre cap, not a fitment figure.
|
| Special P.C.D. |
Not offered. WORK prints no special P.C.D. column and no up-charge on this model, so only the bolt patterns above can be built. |
| Load rating |
WORK prints no JWL rating for this model. There is no JWL line on the spread, so we state none. Ask us if you need a rating confirmed for registration. |
| TPMS |
Not compatible. WORK marks TPMS support on the models that have it, on its own specification panel. WORK does not mark this model, so we do not fit or process TPMS sensors for it. |
| WORK catalogue code |
CGTGK |
What you choose on this page
-
Size is fixed at 15×5.0J — WORK builds no other width at this diameter.
-
Colour is fixed at Black Pierce Machining (BLKPM) — WORK offers no other finish on this model.
-
Configuration is fixed at 4H-100 · +45 — the bolt pattern and the inset, which WORK fixes together on a one-piece wheel.
-
Quantity — the price shown is for one wheel.
WORK's specification table — 15 inch
This is WORK's own table for this diameter, reproduced as printed. Every row on it is a selectable item above.
The price for each of these is the one shown in the picker above, per wheel, in USD.
What comes with the wheel
Included — WORK's own included-items line, as printed:
- Centre cap — one per wheel.
- Air valve — one per wheel, WORK part V35K2.
Wheel nuts — we confirm before quoting. WORK's two sources disagree on this model: the catalogue's included-items line lists the centre cap and the air valve only, and refers you to the nut section of the catalogue separately, while the parts panel on WORK's own product page marks the WORK LOCK NUT SET as standard. We will not tell you nuts are included on the strength of a source that contradicts the price list. Ask us and we will put it to WORK and confirm in writing before you order.
Repair parts — WORK supplies these separately, by part number. Ask us and we will quote them with the wheels:
- №120242 — Centre cap.
- №180104 — Black air valve (V35K2).
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
- WORK lists no custom-order plans and no options for this model — its own specification panel records none for either. What is on this page is what WORK builds.
- WORK's own warning, repeated: at 15×5.0J the disc protrudes 2 mm beyond the rim flange, because of the disc design.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
- Photographs are WORK's own. Screen colour is not a colour match — ask us if the exact finish matters.
