ラディウム製 MPFST マルチポンプ コレクタータンク | MPFST Multi-Pump Fuel Surge Tank (Radium Engineering)

■ 製品概要｜Product Overview
Radium EngineeringのMPFST（Multi-Pump Fuel Surge Tank）は、2基または3基の燃料ポンプを搭載できるマルチポンプ対応の高性能コレクタータンク（サージタンク）です。高出力車やモータースポーツ車両における燃料供給の安定性を大幅に向上させ、燃料欠乏（フューエルサージ）を防ぎます。

■ 特長｜Features

• 最大3基のインターナル燃料ポンプ（Walbro F90000267 / F90000274 / F90000285など）に対応
• ブラシ付き・ブラシレスポンプに対応（構成により異なる）
• 高圧アルミニウムボディとブラックアノダイズ仕上げ
• ANフィッティング付きで、各種燃料ラインに対応
• 取り付けが容易なユニバーサルマウントデザイン
• ガソリン、E85、メタノール、ディーゼル等、全燃料タイプに対応

■ 同梱物｜Included Items

• MPFST本体
• トッププレートおよびハードウェア
• ANフィッティング類
• 内部配線・コネクタ類（構成により異なる）


■ 注意事項｜Notes

• 燃料ポンプ、フィルター、レギュレーターは別売りです
• 構成により使用可能なポンプやフィッティングが異なります

■ Product Overview
The MPFST (Multi-Pump Fuel Surge Tank) from Radium Engineering is a versatile surge tank that supports up to three internal fuel pumps. Designed for high-powered and motorsport vehicles, it ensures stable fuel delivery and eliminates fuel starvation during aggressive driving.

■ Features

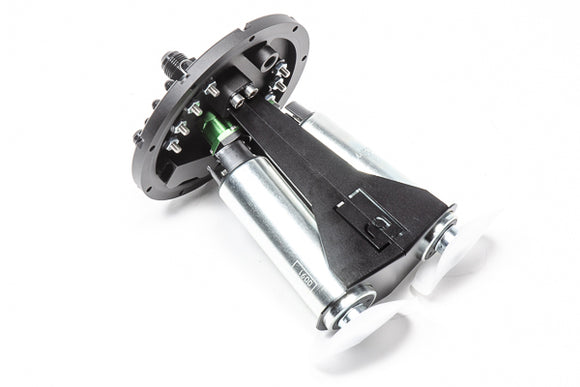

• Supports up to three internal fuel pumps (e.g., Walbro F90000267 / F90000274 / F90000285)
• Compatible with brushed and brushless pumps (depending on configuration)
• Constructed from high-strength aluminum with black anodized finish
• AN fittings included for versatile fuel line integration
• Universal mounting for easy installation
• Compatible with gasoline, E85, methanol, diesel, and more

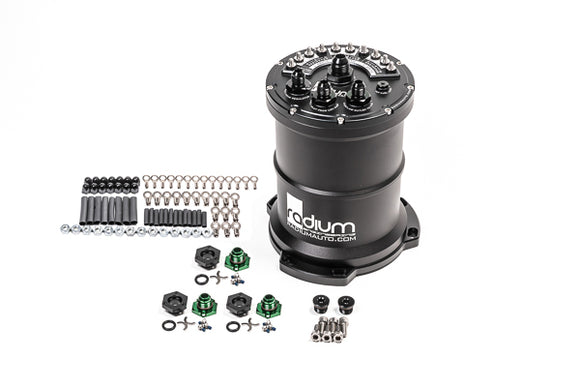

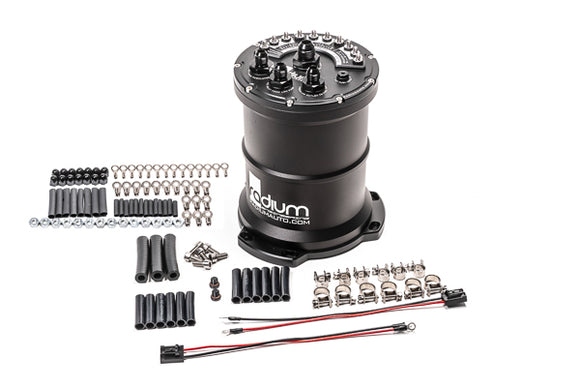

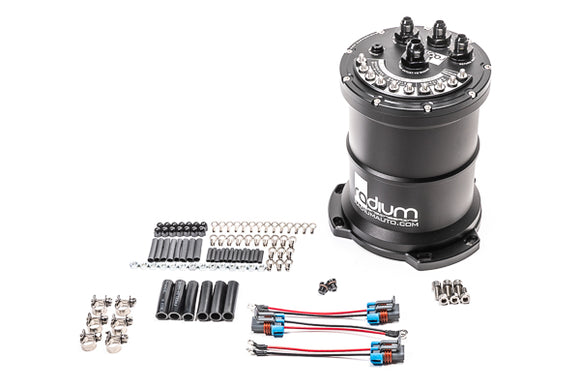

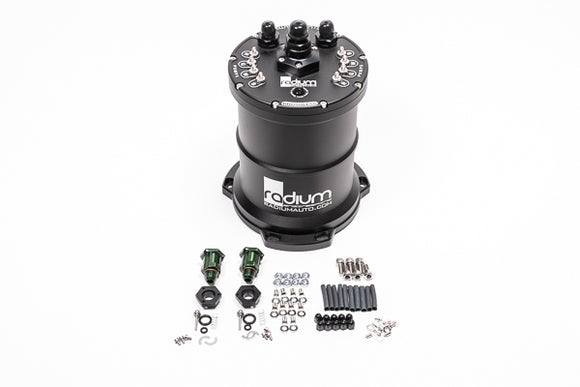

■ Included Items

• MPFST main unit
• Top plate and mounting hardware
• AN fittings
• Internal wiring and connectors (varies by model)
• Installation instructions

■ Notes

• Fuel pumps, filters, and regulators are sold separately
• Available configurations determine pump and fitting compatibility

特徴 / Features

• Fuel surge tank compatible with Ti Automotive E5LM brushless fuel pumps (BKS1000). Can hold one or two pumps. Fuel pumps sold separately and must be installed by the end user. Compatible with E85 and other fuels.
• Fuel surge tank compatible with popular 39mm diameter EFI fuel pumps with inline inlet/outlets. Can hold up to three pumps. Fuel pumps sold separately and must be installed by the end user. Approximately 2 liter fluid capacity. Adapter fittings included for 8AN outlet, 6AN return, 6AN connections to fuel tank. Other adapter fittings can be used for different hose sizes (sold separately). Compatible with E85 and other fuels.
• Fuel surge tank compatible with Bosch BR540 or DW400 pumps. Can hold up to three pumps. Fuel pumps sold separately and must be installed by the end user. Approximately 2 liter fluid capacity. Adapter fittings included for 8AN outlet, 6AN return, 6AN connections to fuel tank. Other adapter fittings can be used for different hose sizes (sold separately). Compatible with E85 and other fuels.
• Fuel surge tank compatible with Walbro F90000-series pumps (450, 525, etc). Can hold up to three pumps. Fuel pumps sold separately and must be installed by the end user. Approximately 2 liter fluid capacity. Adapter fittings included for 8AN outlet, 6AN return, 6AN connections to fuel tank. Other adapter fittings can be used for different hose sizes (sold separately). Compatible with E85 and other fuels.

品番一覧 / Part Numbers
