Brake Calipers, Rear for S-Chassis & 86/BRZ

High-Performance Rear Brake Caliper Set

Upgrade your braking system with this premium rear brake caliper set, engineered for Nissan S-Chassis and Toyota 86/GR86 & Subaru BRZ. Designed for drift and performance driving, this system delivers exceptional stopping power, precision control, and reliability in every corner.

Key Features

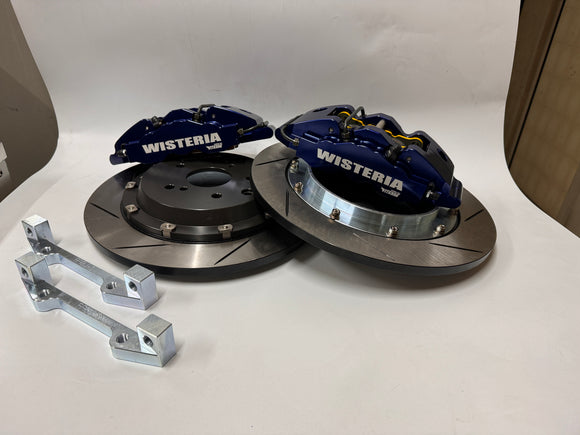

• Complete Kit Includes:

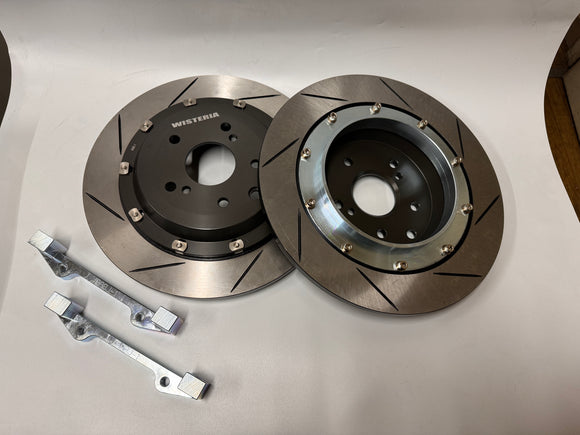

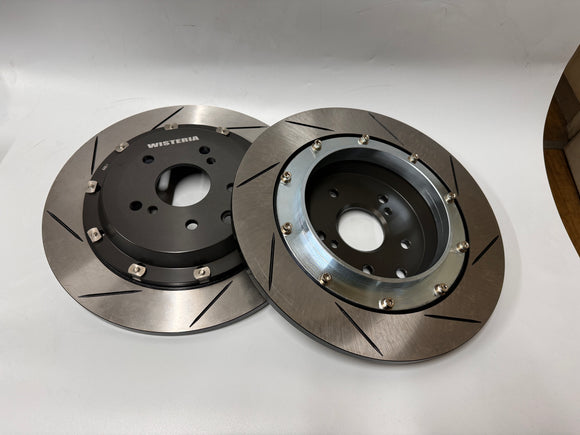

• 2 Rotors – 330mm outer diameter, 12mm thickness
• Six-Piston Calipers – 4 pistons for foot braking, 2 pistons for the hydraulic E-brake
• 2 Mounting Brackets
• Brake Pads – One set per side
• Wheel Fitment: Compatible with 17-inch or larger wheels.
• Precision Engineering: Built for high-stress driving conditions, ensuring long-lasting durability and consistent performance.

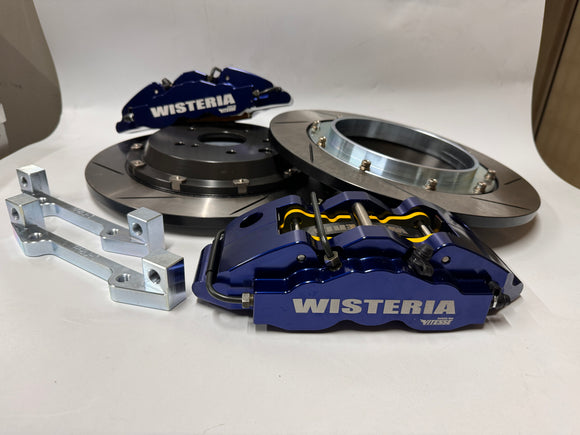

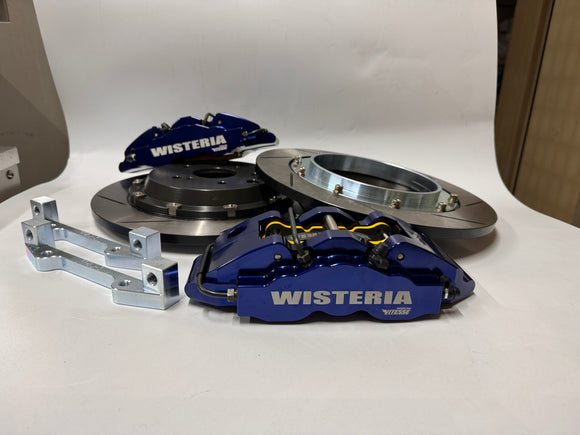

Six-Piston Caliper with Dual Functionality

This advanced caliper system combines a powerful foot brake with an independent hydraulic E-brake, offering unmatched performance and control:

• 4 Pistons for Foot Braking – Provides strong and consistent braking force, essential for high-speed driving and drifting.
• 2 Pistons for E-Brake – Operates separately for a secure hydraulic handbrake, ensuring superior hold during parking or aggressive maneuvers.

This dual-function design enhances braking efficiency while maintaining a compact, lightweight structure.

Handbrake System Differences

• Nissan S-Chassis (S13, S14, S15): Uses a separate drum-style handbrake mechanism, meaning it does not have an internal drum (inner shoe) in the rear brakes.
• Toyota 86/GR86 & Subaru BRZ (ZN6/ZC6/ZD8): Comes with a built-in internal drum handbrake (inner shoe) in the rear brakes, making it possible to retain the OEM-style parking brake.

🔹 Choose the right caliper option based on your vehicle and intended use!

Caliper Options

1️⃣ Caliper Without Inner Shoe

• ✔ Lightweight design for easier installation and reduced weight
• ✔ Ideal for performance-focused drivers using a hydraulic handbrake

2️⃣ Caliper With Inner Shoe

• ✔ Retains compatibility with factory-style handbrake systems (for 86/BRZ owners who want to keep their OEM-style parking brake)
• ✔ Suitable for street-driven cars that need a functional mechanical parking brake

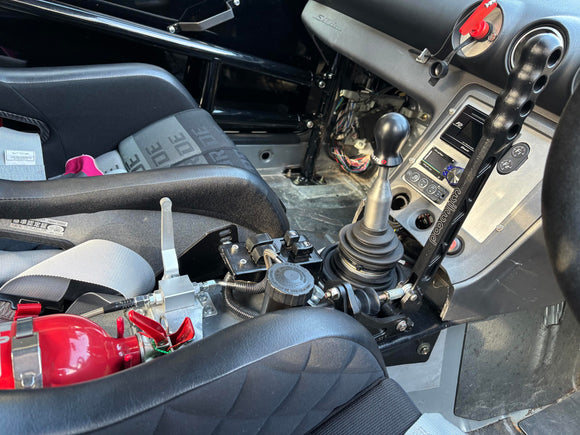

Hydraulic Handbrake Lock Lever – A True Alternative to a Parking Brake

For those using a hydraulic handbrake setup, we offer a lock lever that allows you to secure the hydraulic handbrake in place, functioning as a parking brake substitute. This provides a reliable way to hold your car in place without needing an inner shoe system.

🔹 Perfect for S-Chassis owners who do not have an OEM-style internal drum handbrake!

Upgrade Your Braking Performance Today!

Take your S-Chassis, 86, or BRZ to the next level with a precision-engineered brake system designed for performance, reliability, and maximum control.

🔥 Order now and experience the difference in every turn! 🔥
