SKU: 02310852520HM

GT90

$887.40 $1,154.06 Save $266.66

Shipping calculated at checkout

Size: 20x8.5J +25 (5x112.0)

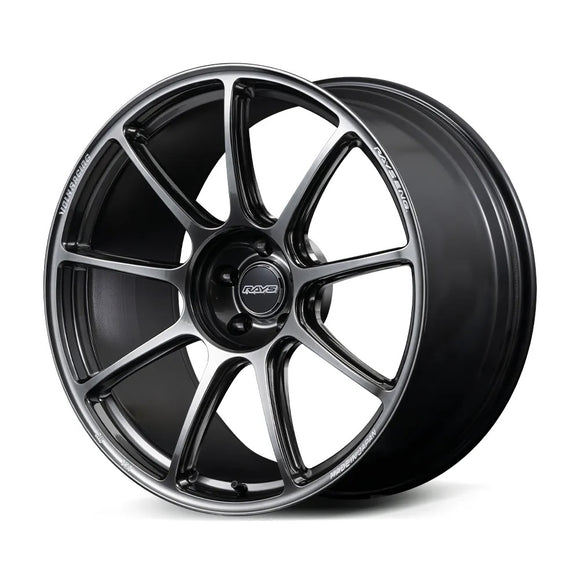

VOLK RACING GT090

20–21 inch — HM


Overview

The VOLK RACING GT090 is a forged performance wheel from RAYS designed for modern high-performance street and sport applications. This page combines all available sizes, PCDs, and specifications into one product page.

  • 1-piece forged construction (Made in Japan)
  • 9-spoke forged design
  • Available PCDs: 5×112 / 5×114.3 / 5×120
  • Color: HM

5×112 Sizes (HM)

Select your Size from the variant options above. The reference table below shows official RAYS specifications and codes.

Size Face Inset PCD Hub Bore Color RAYS Code
20×8.5J F2 +25 5×112 66.6 mm HM 02310852520HM
20×9J F2 +35 5×112 66.6 mm HM 02310903520HM
20×9.5J F2 +38 5×112 66.6 mm HM 02310953820HM
20×9.5J F3 +15 5×112 66.6 mm HM 02310951520HM
20×10J F2 +41 5×112 66.6 mm HM 02310104120HM
20×10.5J F4 +15 5×112 66.6 mm HM 02310051520HM
21×9J F2 +25 5×112 66.6 mm HM 02311902528HM
21×10J F2 +40 5×112 66.6 mm HM 02311104028HM
21×10.5J F3 +15 5×112 66.6 mm HM 02311051528HM

Back to top ↑


5×114.3 Sizes (HM)

Size Face Inset PCD Hub Bore Color RAYS Code
20×8.5J F1 +43 5×114.3 73.1 mm HM 02310854395HM
20×8.5J F1 +37 5×114.3 73.1 mm HM 02310853795HM
20×10J F3 +35 5×114.3 73.1 mm HM 02310103595HM
20×11J F4 +15 5×114.3 73.1 mm HM 02310111595HM
20×12J F4 +25 5×114.3 73.1 mm HM 02310122595HM
21×9J F1 +45 5×114.3 73.1 mm HM 02311904595HM
21×9J F1 +41 5×114.3 73.1 mm HM 02311904195HM
21×10J F3 +30 5×114.3 73.1 mm HM 02311103095HM
21×11J F3 +15 5×114.3 73.1 mm HM 02311111595HM

Back to top ↑


5×120 Sizes (HM)

Size Face Inset PCD Hub Bore Color RAYS Code
20×8.5J F1 +43 5×120 72.6 mm HM 02310854321HM
21×8.5J F1 +40 5×120 72.6 mm HM 02311854021HM

Back to top ↑

Important Notes

  • Availability must be confirmed before ordering. RAYS may stock some sizes, but many wheels are built-to-order.
  • Built-to-order: typical lead time is 2–5 months depending on production status and availability.
  • Valve stems and accessories: please confirm details before ordering if needed.
  • Size, inset, and vehicle fitment must be confirmed on the customer’s side. We can help review fitment, but final confirmation is the customer’s responsibility.
  • Shipping: international shipping available (ships from Japan).

Note: Price is for one wheel. For a full set, select quantity 4.

Need a different wheel or fitment? Contact us and we’ll help with a special order.
