WORK SCHWERT SG2 Black Cut Clear – 21 inch STEP RIM wheel shown, finish reference for 20 inch

商品番号: WORK-SWSG2-2P-20-BP-8.0-SR

WORK SCHWERT SG2 20 Inch STEP RIM – All Colours and Widths

$650.00 $785.71 保存 $135.71

配送料はチェックアウト時に計算されます

Width: 20×8.0J
Colour: Black Cut Clear (BP)

The WORK SCHWERT SG2 in 20 inch STEP RIM, built to order in Japan. This is a genuine two-piece WORK wheel: you choose the width and the disc colour here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

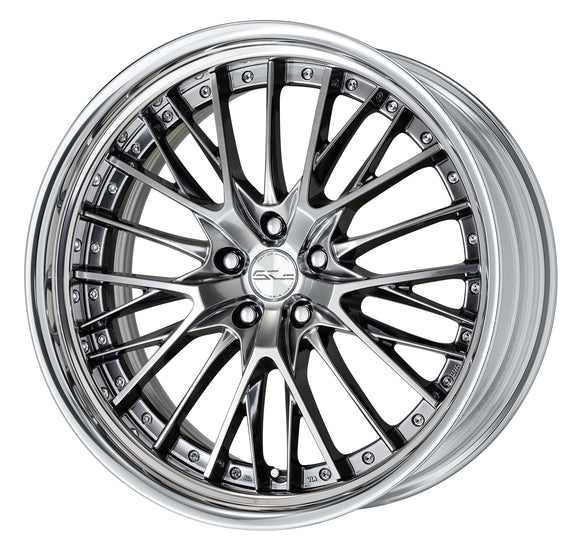

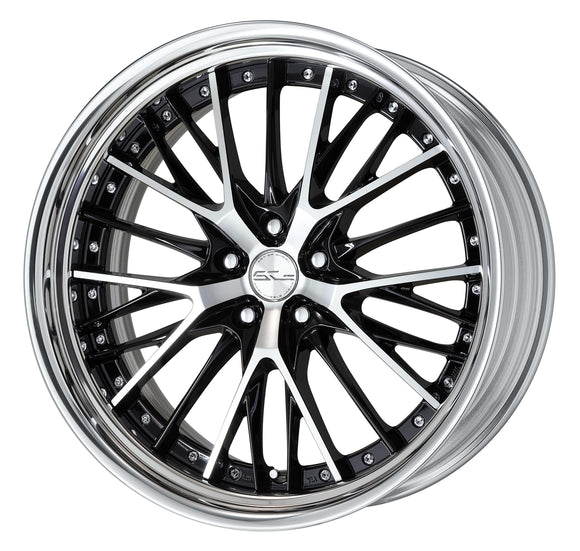

The Glimit Silver photo is WORK’s 21 inch wheel, shown here as a finish reference. The Black Cut Clear photo is WORK’s 21 inch wheel, shown here as a finish reference.

What this page covers

Model WORK SCHWERT SG2
Construction 2-piece
Diameter 20 inch
Rim type STEP RIM
Disc colours Glimit Silver (GTS), Black Cut Clear (BP)
Widths 20×8.0J to 20×12.5J (10 widths)
Disk types A-Disk (STANDARD), O-Disk (DEEP RIM)
P.C.D. A-Disk: 5H-114.3(73.3), 5H-120(60)
O-Disk: 5H-100(60), 5H-114.3(73.3), 5H-120(60)
Special P.C.D. 5H-100 to 5H-120.65 — WORK custom order, from ¥11,000 per wheel
Hub height clearance A-Disk 50 mm, O-Disk 35 mm
Load rating JWL-P720KG
Air valve V24C
Rim finish Buff anodised (standard)
WORK catalogue code SG2-SR・HNH

What you choose on this page

  • Disc colour and width — in the variant picker above.
  • Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Order inset ranges — 20 inch STEP RIM

WORK builds these wheels to your inset rather than to fixed steps. Pick a disk type, then any inset within that disk's range for your width. The rim depth beneath each range is what that inset produces.

Width A-Disk — STANDARD
hub height clearance 50 mm
5H-114.3(73.3), 5H-120(60) 		O-Disk — DEEP RIM
hub height clearance 35 mm
5H-100(60), 5H-114.3(73.3), 5H-120(60)
20×8.0J +36 to +8rim depth 49–77 mm +51 to +23rim depth 49–77 mm
20×8.5J +43 to +1rim depth 49–91 mm +58 to +16rim depth 49–91 mm
20×9.0J +49 to -5rim depth 49–103 mm +64 to +10rim depth 49–103 mm
20×9.5J +55 to -11rim depth 49–115 mm +70 to +4rim depth 49–115 mm
20×10.0J +62 to -18rim depth 49–129 mm +77 to -3rim depth 49–129 mm
20×10.5J +68 to -24rim depth 49–141 mm +83 to -9rim depth 49–141 mm
20×11.0J +74 to -30rim depth 49–153 mm +85 to -15rim depth 53–153 mm
20×11.5J +81 to -37rim depth 49–167 mm +85 to -22rim depth 60–167 mm
20×12.0J +84 to -43rim depth 52–179 mm +85 to -28rim depth 66–179 mm
20×12.5J +77 to -49rim depth 65–191 mm +85 to -34rim depth 72–191 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one centre cap and one air valve (V24C).
  • On some cars WORK’s standard centre cap cannot be fitted and the optional HIGH TYPE cap must be bought separately — it adds 10 mm of hub height clearance. Check the matching guide or ask us before ordering.
  • A buff-anodised rim is the standard finish.
  • Below 50 mm of rim depth the disc sits proud of the rim flange — though WORK notes that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • Below 69 mm of rim depth the disc sits proud of the rim mating face.
  • Rated JWL-P720KG (Japanese passenger-car standard).
  • Special P.C.D. 5H-100 to 5H-120.65 is available as a WORK custom order, from ¥11,000 per wheel (about US$65) on top of the listed price.
  • If you order a special P.C.D., please ask us about the nuts or bolts you intend to use.
  • WORK has ended production of the SCHWERT SG2. It is still built to order while WORK’s stock of components lasts — ask us to confirm availability before you order.
  • The standard 5H-114.3 P.C.D. takes M14 mounting bolts, with 60° taper seats.
  • TPMS processing is free of charge.
