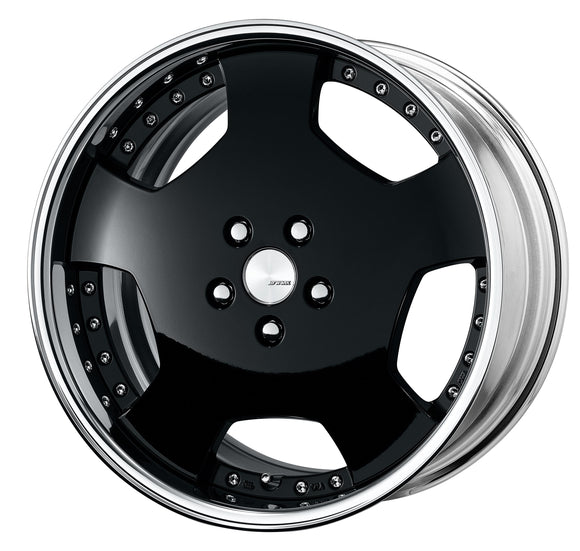

WORK LANVEC LDZ 19 inch FULL REVERSE – Black

商品番号: WORK-LVLDZ-2P-19-BLK-7.5-FR

WORK LANVEC LDZ 19 Inch FULL REVERSE – All Colours and Widths

$539.50 $652.14 保存 $112.64

配送料はチェックアウト時に計算されます

Width: 19×7.5J
Colour: Black (BLK)

The WORK LANVEC LDZ in 19 inch FULL REVERSE, built to order in Japan. A genuine two-piece WORK wheel: choose the width and disc colour here, then tell us the inset you want from WORK's table below, and WORK builds the wheel to that spec.

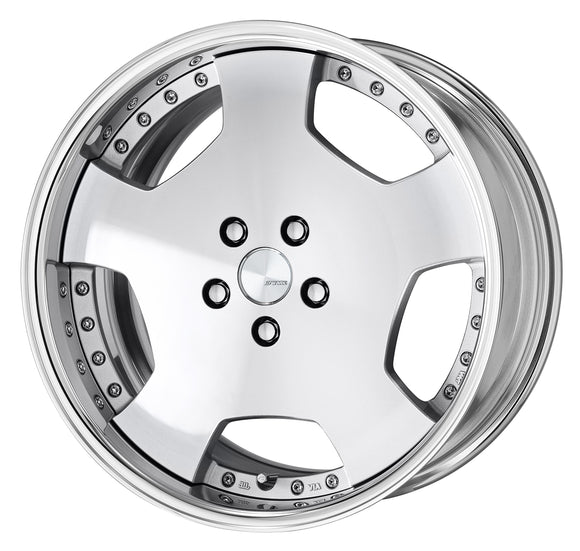

WORK photographs Black, Cut Clear at this exact size and rim type.

What this page covers

Model WORK LANVEC LDZ
Construction 2-piece
Diameter 19 inch
Rim type FULL REVERSE
Disc colours Black (BLK), Cut Clear (MSP)
Widths 19×7.5J to 19×12.5J (11 widths)
Disk types O-Disk (DEEP RIM)
P.C.D. O-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. Not offered on this model
Hub height clearance O-Disk 45 mm
Load rating JWL-P735KG
Air valve V24C or V39A
Rim finish Buff anodised (standard)
WORK catalogue code LDZ・HRH

What you choose on this page

  • Disc colour and width — in the variant picker above.
  • Inset — tell us in the order notes, using the table below. Pick either one of WORK's fixed standard insets or any inset inside the order range — the price is the same.
  • Quantity — the price shown is for one wheel.

Insets — 19 inch FULL REVERSE

Width O-Disk — DEEP RIM
hub height clearance 45 mm · 5H-100(60), 5H-114.3(73.3)
Standard inset
fixed, same price 		Order inset 1
valve V24C 		Order inset 2
valve V39A
19×7.5J +45rim depth 42 mm / +35rim depth 52 mm +53 to +34rim depth 34–53 mm +33 to +21rim depth 54–66 mm
19×8.0J +45rim depth 48 mm / +35rim depth 58 mm +59 to +28rim depth 34–65 mm +27 to +15rim depth 66–78 mm
19×8.5J +45rim depth 55 mm / +35rim depth 65 mm +66 to +21rim depth 34–79 mm +20 to +8rim depth 80–92 mm
19×9.0J +45rim depth 61 mm / +35rim depth 71 mm +72 to +15rim depth 34–91 mm +14 to +2rim depth 92–104 mm
19×9.5J +45rim depth 67 mm / +35rim depth 77 mm +78 to +9rim depth 34–103 mm +8 to -4rim depth 104–116 mm
19×10.0J +35rim depth 84 mm +85 to +2rim depth 34–117 mm +1 to -11rim depth 118–130 mm
19×10.5J — +85 to -4rim depth 40–129 mm -5 to -17rim depth 130–142 mm
19×11.0J — +85 to -10rim depth 46–141 mm -11 to -23rim depth 142–154 mm
19×11.5J — +85 to -17rim depth 53–155 mm -18 to -30rim depth 156–168 mm
19×12.0J — +85 to -23rim depth 59–167 mm -24 to -36rim depth 168–180 mm
19×12.5J — +85 to -29rim depth 65–179 mm -30 to -42rim depth 180–192 mm

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one centre cap and one air valve (V24C or V39A). オーダーインセット：1はV24C、オーダーインセット：2はV39Aとなります。
  • A buff-anodised rim is the standard finish.
  • WORK prints no disc-protrusion warning for this size and rim type.
  • Rated JWL-P735KG (Japanese passenger-car standard).
  • Please ask us about the nuts or bolts you intend to use.
  • TPMS processing is free of charge.
