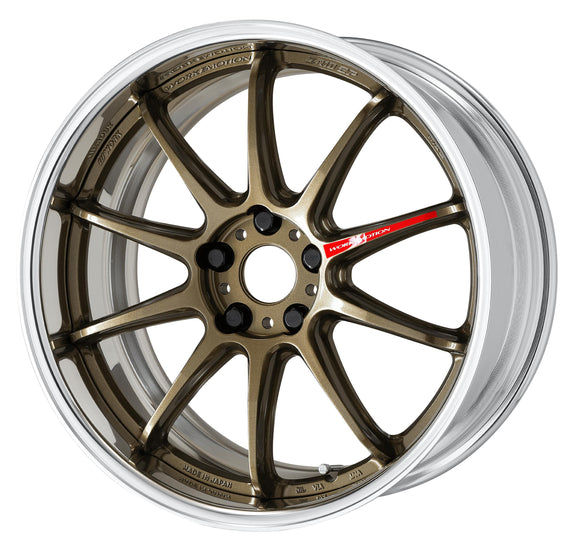

WORK EMOTION ZR10 2P 19 inch FULL REVERSE, Titanium Bronze (HG), Middle Concave — WORK factory photo

商品番号: WORK-EMZR10-2P-19-HG-7.5-FR-MC

WORK EMOTION ZR10 2P 19 Inch FULL REVERSE – All Colours, Widths and Concaves

$568.75 $687.50 保存 $118.75

配送料はチェックアウト時に計算されます

Width: 19×7.5J
Colour: Titanium Bronze (HG)
Concave: Middle Concave

The WORK EMOTION ZR10 2P in 19 inch FULL REVERSE, built to order in Japan. A genuine two-piece WORK wheel: choose the width, the disc colour and the concave shape here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

Middle Concave and Deep Concave are the same wheel at the same price — WORK machines the disc to sit deeper or shallower in the rim, which changes the face shape and which insets can be built. Middle Concave: R-Disk (BIG CALIPER), L-Disk (BIG CALIPER) · Deep Concave: A-Disk (STANDARD).

Middle Concave inset ranges · Deep Concave inset ranges

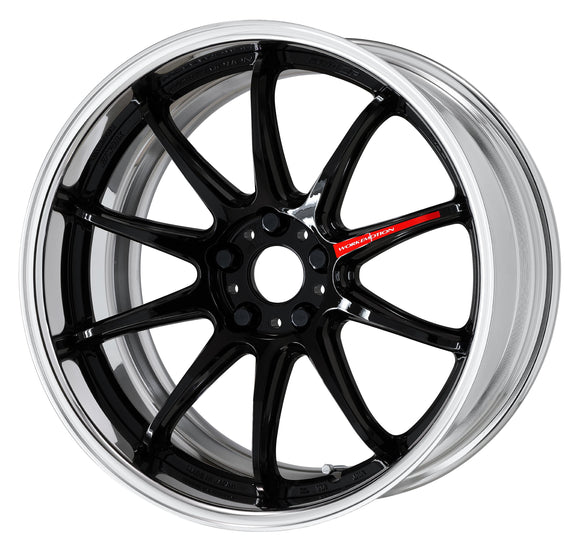

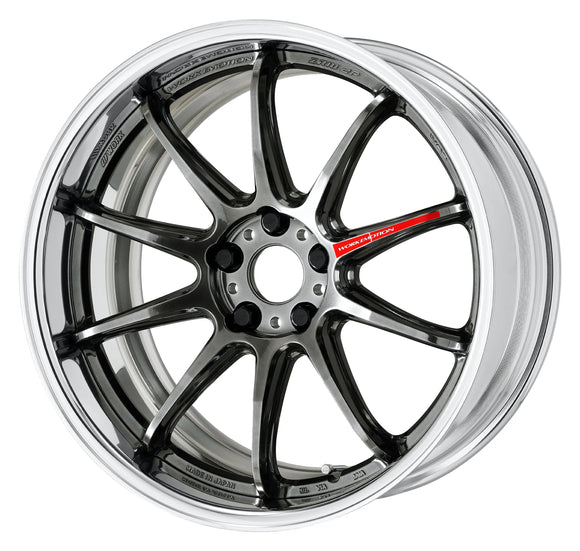

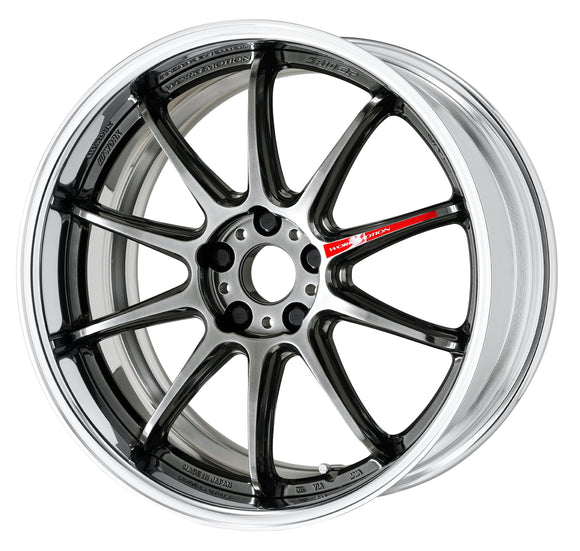

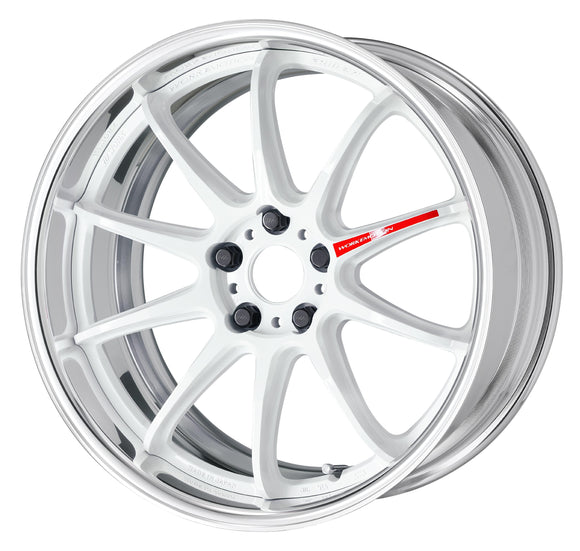

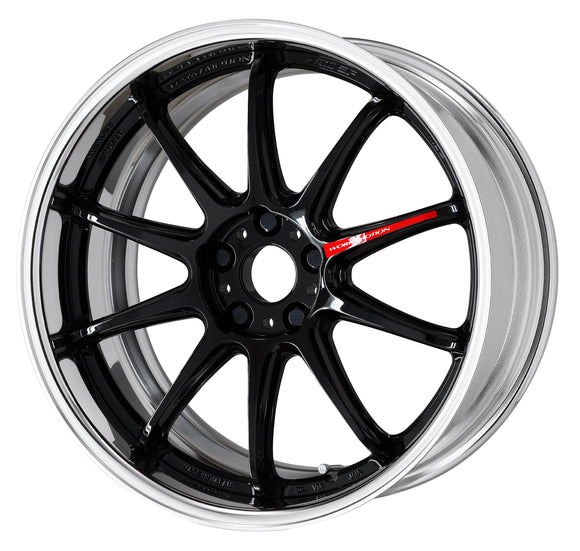

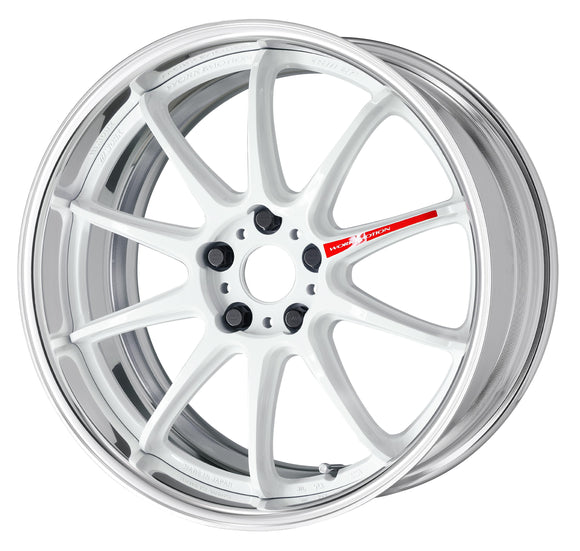

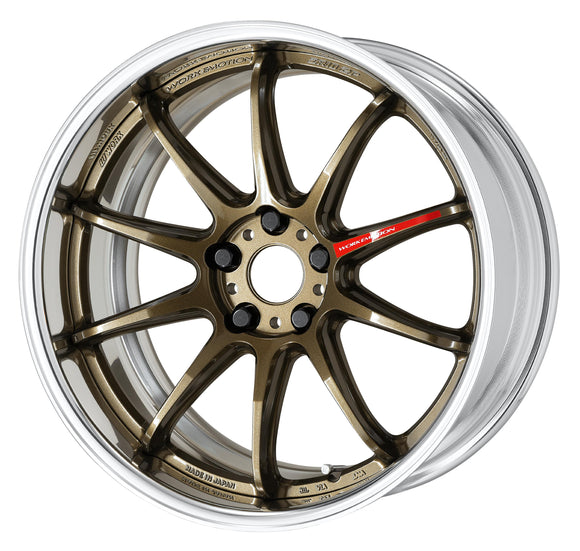

WORK photographs Azure White, Black, Glim Black, Titanium Bronze at this exact size and rim type, in Deep Concave and Middle Concave. Every photo on this page is WORK's own, of this diameter and rim type — none is borrowed from another size.

What this page covers

Model WORK EMOTION ZR10 2P
Construction 2-piece
Diameter 19 inch
Rim type FULL REVERSE
Disc colours Titanium Bronze (HG), Black (BLK), Azure White (AZW), Glim Black (GTK)
Concave shapes Middle Concave, Deep Concave
Widths 19×7.5J to 19×12.5J (11 widths)
Disk types R-Disk (BIG CALIPER, Middle Concave), L-Disk (BIG CALIPER, Middle Concave), A-Disk (STANDARD, Deep Concave)
P.C.D. R-Disk: 5H-100(60), 5H-114.3(73.3)
L-Disk: 5H-100(60), 5H-114.3(73.3)
A-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. 5H-98〜120.65 — WORK custom order, from ¥8,800 per wheel (about US$62.86)
Hub height clearance R-Disk: 42 mm with the FLAT TYPE cap, 50 mm with the HIGH TYPE cap
L-Disk: 29 mm with the FLAT TYPE cap, 37 mm with the HIGH TYPE cap
A-Disk: 26 mm with the FLAT TYPE cap, 34 mm with the HIGH TYPE cap
Load rating JWL-P720KG
Air valve V24C or V39A
Rim finish Buff anodised (standard)
Centre cap Optional item — not included (see below)
WORK catalogue code EZR2P・HRH

What you choose on this page

  • Width, disc colour and concave shape — in the variant picker above.
  • Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Middle Concave — order inset ranges, 19 inch FULL REVERSE

Width R-Disk — BIG CALIPER
hub height clearance F 42 mm / H 50 mm · 5H-100(60), 5H-114.3(73.3) 		L-Disk — BIG CALIPER
hub height clearance F 29 mm / H 37 mm · 5H-100(60), 5H-114.3(73.3)
Order inset 1
valve V24C 		Order inset 2
valve V39A 		Order inset 1
valve V24C 		Order inset 2
valve V39A
19×7.5J +26 to +13rim depth 43–56 mm +12 to ±0rim depth 57–69 mm +39 to +26rim depth 43–56 mm +25 to +13rim depth 57–69 mm
19×8.0J +32 to +7rim depth 43–68 mm +6 to -6rim depth 69–81 mm +45 to +20rim depth 43–68 mm +19 to +7rim depth 69–81 mm
19×8.5J +39 to ±0rim depth 43–82 mm -1 to -13rim depth 83–95 mm +52 to +13rim depth 43–82 mm +12 to ±0rim depth 83–95 mm
19×9.0J +45 to -6rim depth 43–94 mm -7 to -19rim depth 95–107 mm +58 to +7rim depth 43–94 mm +6 to -6rim depth 95–107 mm
19×9.5J +51 to -12rim depth 43–106 mm -13 to -25rim depth 107–119 mm +64 to +1rim depth 43–106 mm ±0 to -12rim depth 107–119 mm
19×10.0J +58 to -19rim depth 43–120 mm -20 to -32rim depth 121–133 mm +71 to -6rim depth 43–120 mm -7 to -19rim depth 121–133 mm
19×10.5J +64 to -25rim depth 43–132 mm -26 to -38rim depth 133–145 mm +77 to -12rim depth 43–132 mm -13 to -25rim depth 133–145 mm
19×11.0J +70 to -31rim depth 43–144 mm -32 to -44rim depth 145–157 mm +83 to -18rim depth 43–144 mm -19 to -31rim depth 145–157 mm
19×11.5J +77 to -38rim depth 43–158 mm -39 to -51rim depth 159–171 mm +85 to -25rim depth 48–158 mm -26 to -38rim depth 159–171 mm
19×12.0J +74 to -44rim depth 52–170 mm -45 to -57rim depth 171–183 mm +85 to -31rim depth 54–170 mm -32 to -44rim depth 171–183 mm
19×12.5J +67 to -50rim depth 65–182 mm -51 to -63rim depth 183–195 mm +80 to -37rim depth 65–182 mm -38 to -50rim depth 183–195 mm

Deep Concave — order inset ranges, 19 inch FULL REVERSE

Width A-Disk — STANDARD
hub height clearance F 26 mm / H 34 mm · 5H-100(60), 5H-114.3(73.3)
Order inset 1
valve V24C 		Order inset 2
valve V39A
19×7.5J +26 to +13rim depth 43–56 mm +12 to ±0rim depth 57–69 mm
19×8.0J +32 to +7rim depth 43–68 mm +6 to -6rim depth 69–81 mm
19×8.5J +39 to ±0rim depth 43–82 mm -1 to -13rim depth 83–95 mm
19×9.0J +45 to -6rim depth 43–94 mm -7 to -19rim depth 95–107 mm
19×9.5J +51 to -12rim depth 43–106 mm -13 to -25rim depth 107–119 mm
19×10.0J +58 to -19rim depth 43–120 mm -20 to -32rim depth 121–133 mm
19×10.5J +64 to -25rim depth 43–132 mm -26 to -38rim depth 133–145 mm
19×11.0J +70 to -31rim depth 43–144 mm -32 to -44rim depth 145–157 mm
19×11.5J +77 to -38rim depth 43–158 mm -39 to -51rim depth 159–171 mm
19×12.0J +74 to -44rim depth 52–170 mm -45 to -57rim depth 171–183 mm
19×12.5J +67 to -50rim depth 65–182 mm -51 to -63rim depth 183–195 mm

Centre caps — optional, not included

WORK supplies these wheels with one air valve and one red sport decal per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

WORK part no. Centre cap WORK list price
No.120273 FLAT TYPE Black / Red ring ¥4,950 each
No.120179 FLAT TYPE Silver ¥3,850 each
No.120180 HIGH TYPE Silver ¥3,850 each
No.120186 FLAT TYPE Black ¥3,850 each
No.120187 HIGH TYPE Black ¥3,850 each
No.120219 FLAT TYPE Red ¥3,850 each
No.120220 HIGH TYPE Red ¥3,850 each
No.120250 FLAT TYPE Blue ¥3,850 each
No.120251 HIGH TYPE Blue ¥3,850 each
No.120235 FLAT TYPE W Black ¥3,850 each
No.120279 FLAT TYPE W Black / Navy ring ¥4,950 each
  • Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
  • The hub height clearance table above gives the F figure for the FLAT TYPE cap and the H figure for the HIGH TYPE cap. Those are reference values from the mounting face; on some hub shapes the cap can still touch even below the figure shown.
  • WORK notes that on some vehicles the centre cap cannot be fitted at all.
  • Ask us and we will add the caps you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V24C or V39A) and one red WORK sport decal. The centre cap is not included — it is an optional item, listed above.
  • Order inset 1 takes the V24C valve; order inset 2 takes the V39A valve. The inset range table above shows which is which.
  • A buff-anodised rim is the standard finish.
  • Middle Concave: below 50 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • Deep Concave: below 49 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • WORK notes that the two concave shapes can look slightly different in colour, because the face geometry differs.
  • Rated JWL-P720KG (Japanese passenger-car standard).
  • Special P.C.D. 5H-98〜120.65 is available as a WORK custom order, from ¥8,800 per wheel on top of the listed price. The yen figure is WORK's; we confirm the converted amount on quotation.
  • If you order a special P.C.D., please ask us about the nuts or bolts you intend to use.
  • The standard 5H-114.3 P.C.D. takes M14 mounting bolts, with 60° taper seats.
  • TPMS is supported on this size. WORK does not offer it on 18×8.0J and narrower.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • Optional black air valve, ¥550 per wheel on top of the listed price.
