WORK EMOTION ZR10 19 Inch – All Colours, Widths and Insets

The WORK EMOTION ZR10 in 19 inch, built to order in Japan. A one-piece WORK wheel with fixed insets: choose the width, the colour and the inset here. On this model the inset you pick also settles the taper shape of the face, the P.C.D.s the wheel can be drilled for and the centre-cap clearance, so everything you need to check fitment is in the picker above and in the table below.

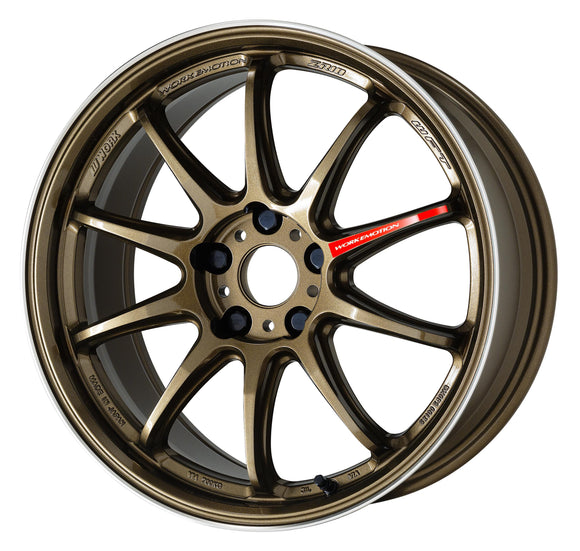

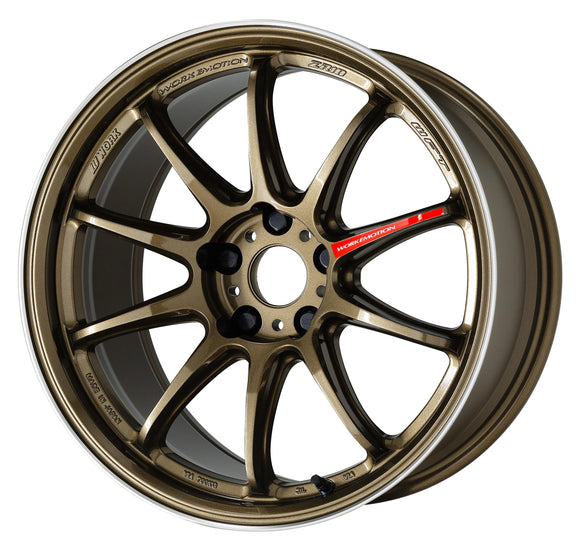

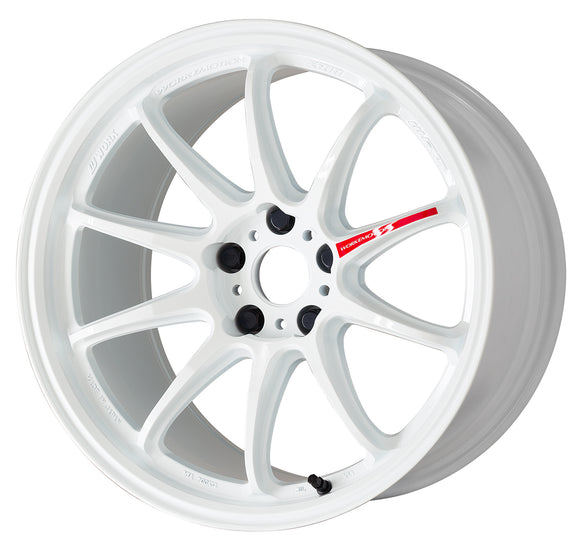

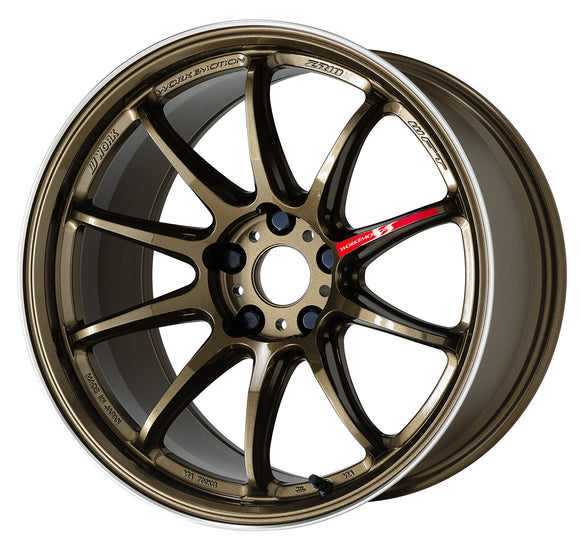

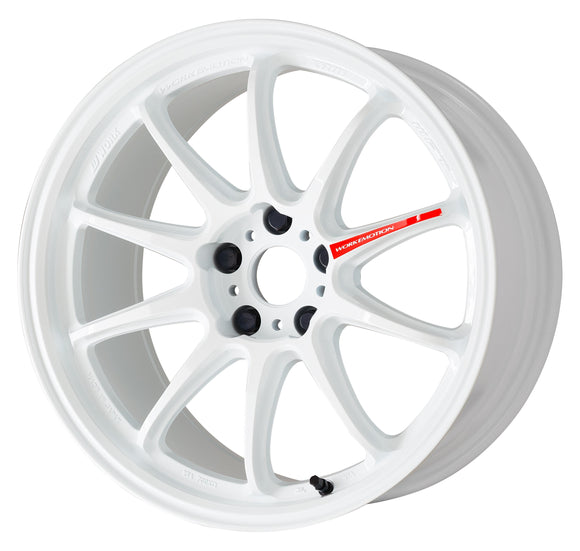

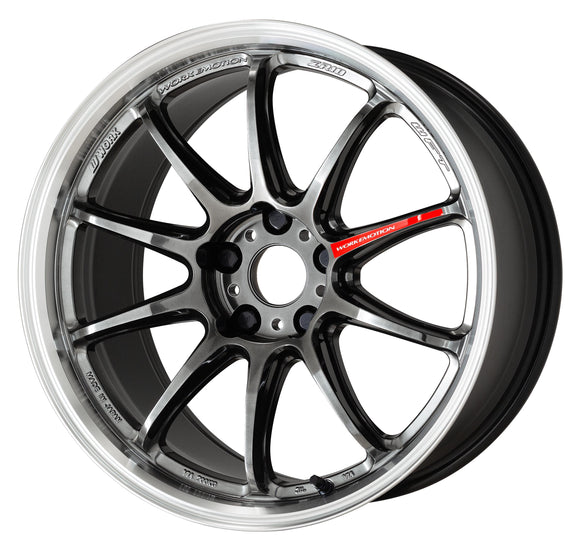

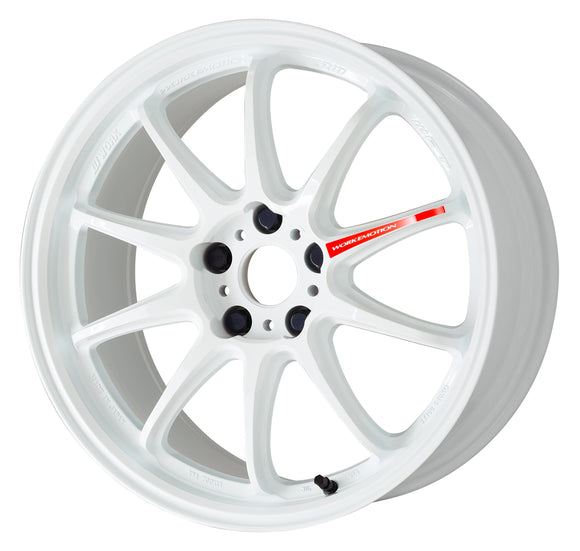

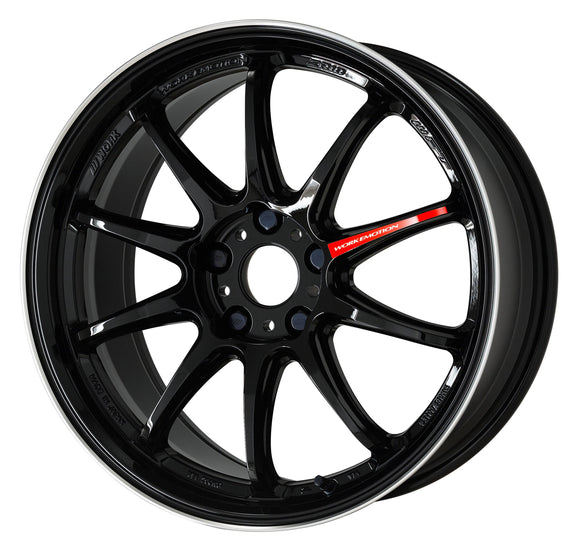

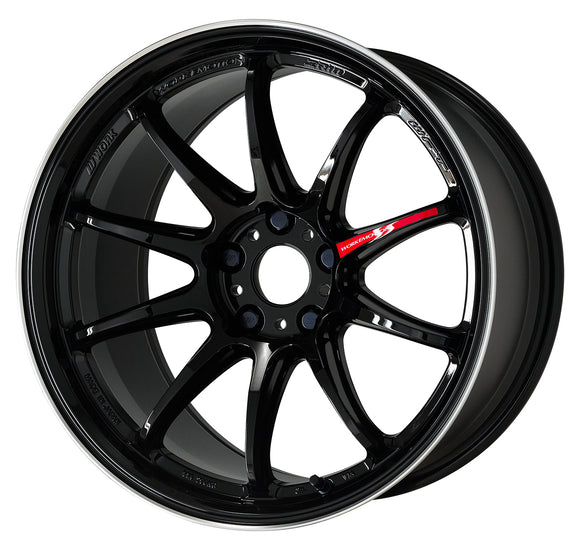

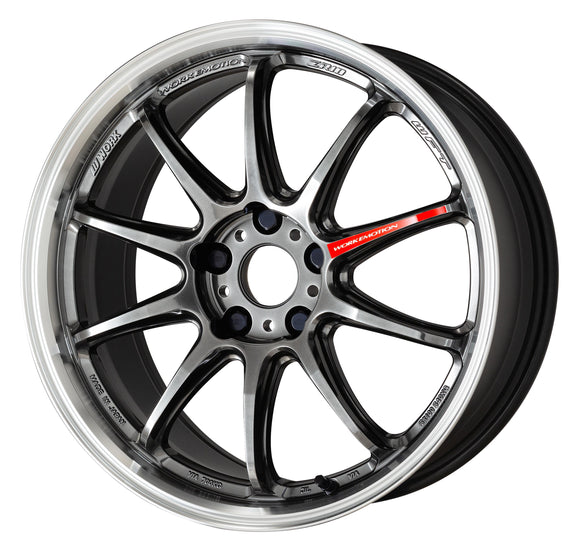

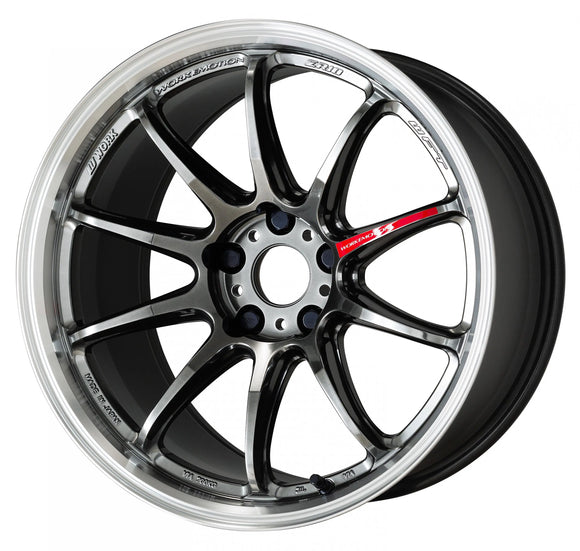

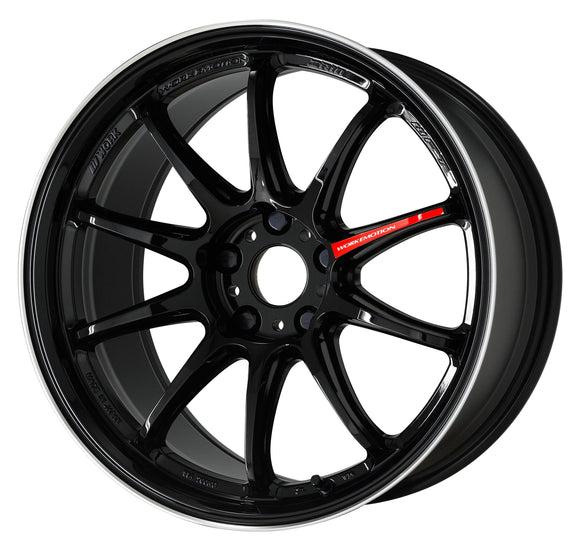

WORK publishes no photograph of this wheel in 19 inch NORMAL, so every photograph on this page is WORK's own photography of another size, shown as a finish reference and labelled as such in each image: Azure White, Titanium Diamond Lip Cut, Black Diamond Lip Cut and Glim Black Diamond Cut Rim (every finish on this page), in the Middle, Deep and Ultra Deep tapers — from WORK's 18 inch NORMAL wheel. The finish in every borrowed photograph is the one you are choosing here; what differs is the diameter.

What this page covers

What you choose on this page

• width, colour and inset — all three in the variant picker above. Each inset in the picker names its taper shape, the P.C.D.s it can be drilled for and its FLAT TYPE / HIGH TYPE centre-cap clearance.
• Nothing to specify in the order notes. These are WORK's fixed insets; there is no inset-to-order range on a one-piece wheel, so an inset between two listed figures cannot be built.
• Quantity — the price shown is for one wheel.

Widths, insets, tapers, clearances and P.C.D.s — 19 inch

WORK prints its 特殊P.C.D. columns on this table, but no 19-inch inset is marked in either of them, so the column below reads “—” all the way down: a special P.C.D. cannot be built at this diameter.

Centre caps — optional, not included

WORK supplies these wheels with one air valve (V29K2, black) and one sports decal (red, for 19/18/17 inch) per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

• Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
• The clearance figures in the table above are WORK's reference values from the mounting face: F to the FLAT TYPE cap, H to the HIGH TYPE cap. On some hub shapes the cap can still touch even below the figure shown.
• WORK notes that on some vehicles the centre cap cannot be fitted at all.
• WORK also lists select-option air valves in place of the black valve supplied: No.180082 Red: V29R2 at ¥550up each and No.180081 Blue: V29B2 at ¥550up each.
• WORK lists sports decals for this diameter: No.130082 Blue for 19/18/17 inch at ¥1,100 each, No.130083 Green for 19/18/17 inch at ¥1,100 each, No.130084 Orange for 19/18/17 inch at ¥1,100 each and No.130085 Purple for 19/18/17 inch at ¥1,100 each.
• Ask us and we will add the items you want to the order.

Notes

• Price is per wheel. Built to order by WORK in Japan; allow for production time.
• Each wheel comes with one air valve (V29K2, black) and one sports decal (red, for 19/18/17 inch). The centre cap is not included — it is an optional item, listed above.
• This is a one-piece wheel. The insets in the table are the fixed insets WORK builds; unlike WORK's two-piece models there is no inset-to-order range and no rim depth to choose — where WORK prints a rim depth it is fixed for that width.
• Special P.C.D. is printed on this table but not available at 19 inch. WORK prints the 特殊P.C.D. columns (5H-100〜115 and 4H-98〜108) at ¥8,800up, but no 19-inch inset carries a ● in either of them. Nothing on this page can be built to a special P.C.D. WORK prints its usual caution alongside these columns — enquire about the nuts and bolts you intend to use with a special P.C.D. — which applies on the diameters of this model that do offer one.
• WORK prints on this model's big-caliper fitment guide that 5H-112 is handled as a special P.C.D. It is not one of the standard P.C.D. columns on this table, and no 19-inch inset is marked for a special P.C.D., so 5H-112 cannot be built at this diameter. The Standard and Special P.C.D. columns of the table above are the per-inset answer for this diameter.
• 19×8.5J: because of the disc design the disc stands 6 mm proud of the rim flange.
• Hub height clearance. The F figure (FLAT TYPE cap) and the H figure (HIGH TYPE cap) are WORK's reference values from the mounting face. Even below the figure shown, some vehicle hub shapes can still touch the cap.
• WORK notes that the taper shapes can look slightly different in colour to one another, because the face geometry differs.
• TPMS. WORK prints no size exclusion for TPMS on this model's spread — it gives only its TPMS reference (TPMS対応の詳細▶P.185). Ask us and we will confirm the sensor for your exact size with WORK before you order.
• WORK prints no JWL load rating on this model's spread, so this page states none.
• WORK's printed WEIGHT (Kg) figures quoted above are the bare wheel, as a "from" figure. They are reference values, not the shipping weight of the packed wheel.
• WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
• All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
