The WORK EMOTION T5R in 19 inch, built to order in Japan. A one-piece WORK wheel with fixed insets: choose the colour and the inset here. This diameter is 19×8.5J only, so there is no width to choose. On this model the inset you pick also settles the taper shape of the face, the P.C.D.s the wheel can be drilled for and the centre-cap clearance, so everything you need to check fitment is in the picker above and in the table below.
Every inset at this diameter is WORK's MIDDLE taper face — it is the only taper shape WORK prints for 19 inch on this model, so there is nothing to choose between on that score. Pick the inset; the width is fixed.
Width, inset, taper, clearance and P.C.D. table

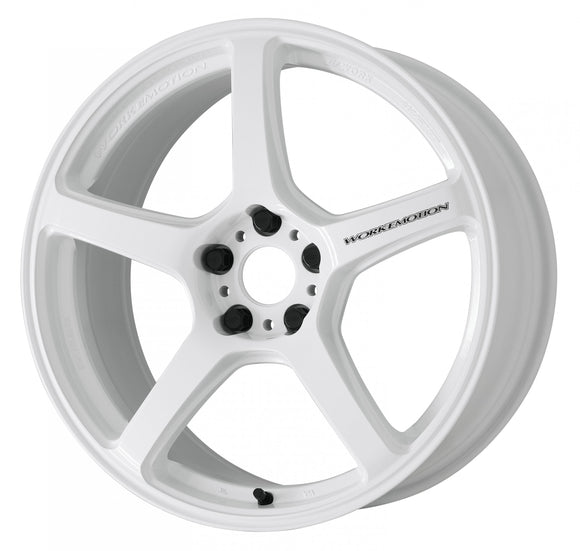

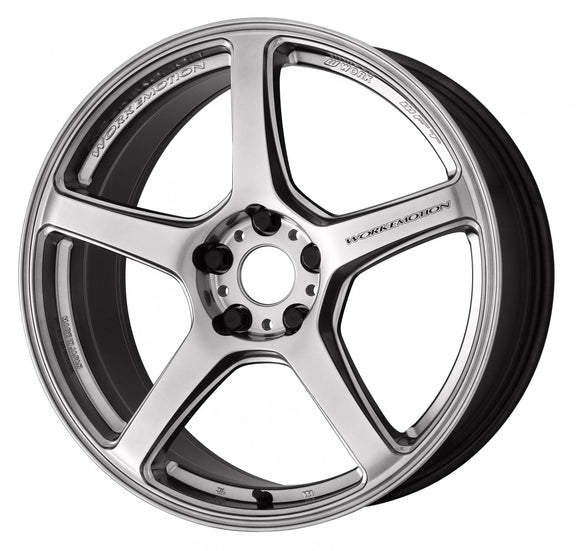

WORK photographs the Middle taper in Ice White and Glow Silver at this exact diameter and rim type. Every photograph on this page is WORK's own, of 19 inch NORMAL — none is borrowed from another diameter, another rim type or another model. WORK publishes no photograph of the Middle taper in Mat Graphite anywhere on this model, at any size, so this page carries none for it — the finish is sold, but WORK has never photographed it.
What this page covers
| Model |
WORK EMOTION T5R |
| Construction |
1-piece |
| Diameter |
19 inch |
| Rim type |
NORMAL
WORK prints this table's heading as 1PIECE/NORMAL.
|
| Colours |
Mat Graphite (MGK), Ice White (ICW), Glow Silver (GSL) |
| Taper shapes |
MIDDLE — the only taper WORK prints at this diameter |
| Widths |
19×8.5J only |
| Insets |
2 inset options on this one width, from +45 down to +35 — see the table below. |
| Standard P.C.D. |
5H-114.3(73.3)
Every inset on this page is 5H-114.3(73.3). These are included in the price shown.
|
| Special P.C.D. |
Not offered. WORK prints no 特殊P.C.D. column and no up-charge anywhere on this model's spread. |
| Hub height clearance |
F 28–38 mm with the FLAT TYPE cap, H 36–46 mm with the HIGH TYPE cap, depending on the inset — per-inset figures in the table below. |
| TPMS |
WORK prints no size exclusion for TPMS on this model's spread — it gives only its TPMS reference (TPMS対応の詳細▶P.185). Ask us and we will confirm the sensor for your exact size with WORK before you order. |
| Load rating |
WORK prints no JWL rating on this model's spread. |
| Air valve |
S27A2B (black) |
| Centre cap |
Optional item — not included (see below) |
| Supplied with each wheel |
One air valve (S27A2B, black) and one sticker.
WORK notes that the centre cap is an optional item, bought separately.
|
| Wheel weight, WORK's figure |
19×8.5J: from 10.0 kg
WORK's own bare wheel weight, printed as a "from" figure. Reference only — it is not the shipping weight.
|
| WORK catalogue code |
EMT-T5R |
What you choose on this page
-
colour and inset — both in the variant picker above. This page is a single width, 19×8.5J, so that one is not shown in the picker — it is fixed for every wheel on this page. Each inset in the picker names its taper shape, the P.C.D.s it can be drilled for and its FLAT TYPE / HIGH TYPE centre-cap clearance.
-
Nothing to specify in the order notes. These are WORK's fixed insets; there is no inset-to-order range on a one-piece wheel, so an inset between two listed figures cannot be built.
-
Quantity — the price shown is for one wheel.
Widths, insets, tapers, clearances and P.C.D.s — 19 inch
Centre caps — optional, not included
WORK supplies these wheels with one air valve (S27A2B, black) and one sticker per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:
- Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
- The clearance figures in the table above are WORK's reference values from the mounting face: F to the FLAT TYPE cap, H to the HIGH TYPE cap. On some hub shapes the cap can still touch even below the figure shown.
- WORK notes that on some vehicles the centre cap cannot be fitted at all.
- Ask us and we will add the items you want to the order.
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time.
- Each wheel comes with one air valve (S27A2B, black) and one sticker. The centre cap is not included — it is an optional item, listed above.
- This is a one-piece wheel. The insets in the table are the fixed insets WORK builds; unlike WORK's two-piece models there is no inset-to-order range and no rim depth to choose — where WORK prints a rim depth it is fixed for that width.
-
Special P.C.D. is not offered on this model. WORK prints no 特殊P.C.D. column and no up-charge anywhere on the spread.
-
19×8.5J: because of the disc design the disc stands 5 mm proud of the rim flange.
-
Hub height clearance. The F figure (FLAT TYPE cap) and the H figure (HIGH TYPE cap) are WORK's reference values from the mounting face. Even below the figure shown, some vehicle hub shapes can still touch the cap.
- WORK notes that the taper shapes can look slightly different in colour to one another, because the face geometry differs.
-
TPMS. WORK prints no size exclusion for TPMS on this model's spread — it gives only its TPMS reference (TPMS対応の詳細▶P.185). Ask us and we will confirm the sensor for your exact size with WORK before you order.
-
WORK prints no JWL load rating on this model's spread, so this page states none.
- WORK's printed WEIGHT (Kg) figures quoted above are the bare wheel, as a "from" figure. They are reference values, not the shipping weight of the packed wheel.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
- All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
