The WORK EMOTION CR Kiwami in 16 inch, built to order in Japan. A one-piece WORK wheel with fixed insets: choose the width, the colour and the inset here. On this model the inset you pick also settles the taper shape of the face, the P.C.D.s the wheel can be drilled for and the centre-cap clearance, so everything you need to check fitment is in the picker above and in the table below.
WORK EMOTION CR Kiwami — discontinued by WORK. Available while supplies last, on an asking basis. WORK has ended production of this model and now builds it only from the stock that remains, so not every width, colour or inset can be guaranteed. Please ask us before you order: we check your exact specification with WORK and confirm availability and lead time in writing first.
Every inset at this diameter is WORK's SEMI taper face — it is the only taper shape WORK prints for 16 inch on this model, so there is nothing to choose between on that score. Pick the width first, then the inset.
Width, inset, taper, clearance and P.C.D. table

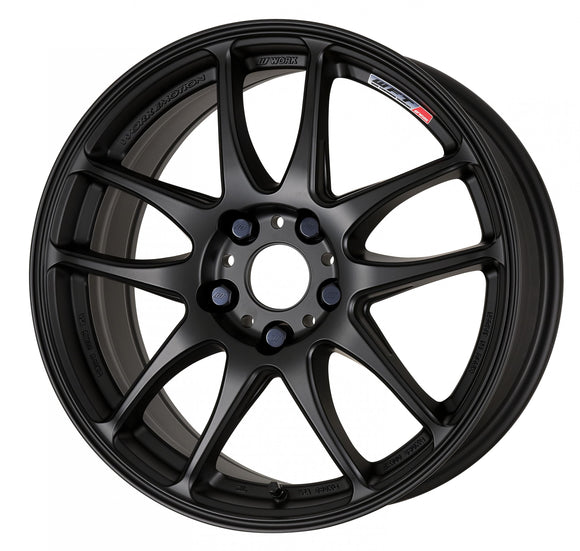

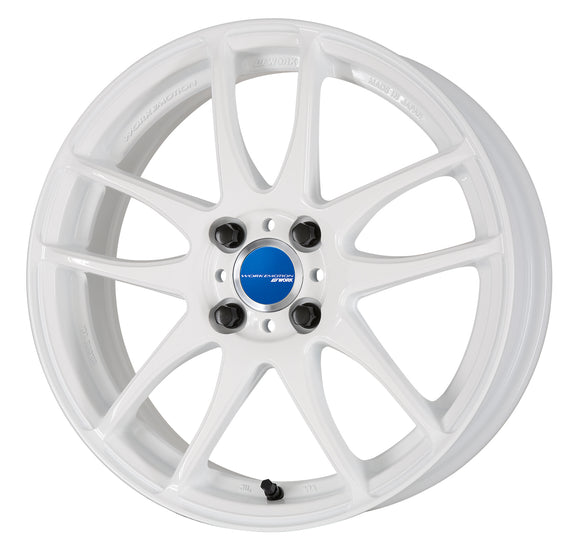

WORK photographs the Semi taper in White at this exact diameter and rim type. It publishes none of the Semi taper in Matte Black at this size, so for that one the page shows WORK's own photography of another size as a finish reference, labelled as such in each image: the Semi taper in Matte Black — from WORK's 18 inch NORMAL wheel. The finish in every borrowed photograph is the one you are choosing here; what differs is the diameter. WORK publishes no photograph of the Semi taper in Ashed Titanium and Glimit Silver anywhere on this model, at any size, so this page carries none for them — those finishes are sold, but WORK has never photographed them.
What this page covers
| Model |
WORK EMOTION CR Kiwami |
| Construction |
1-piece |
| Diameter |
16 inch |
| Rim type |
NORMAL
WORK prints this table's heading as 1PIECE/NORMAL.
|
| Colours |
Ashed Titanium (AHG), Matte Black (MBL), White (WHT), Glimit Silver (GTS) |
| Taper shapes |
SEMI — the only taper WORK prints at this diameter |
| Widths |
16×5.5J to 16×6.5J (2 widths) |
| Insets |
4 inset options across the 2 widths, from +52 down to +42. Each width offers its own — see the table below. |
| Standard P.C.D. |
4H-100(60)
Every inset on this page is 4H-100(60). These are included in the price shown.
|
| Special P.C.D. |
Not offered at this diameter. WORK prints no 特殊P.C.D. column and no up-charge on the table this 16-inch size belongs to. Other diameters of this model are printed on a different table and some of them do offer it — that does not carry over to this page. |
| Hub height clearance |
F 24–39 mm with the FLAT TYPE cap, H 32–47 mm with the HIGH TYPE cap, depending on the inset — per-inset figures in the table below. |
| TPMS |
Not available at 16 inch. WORK prints 16/15inch除く on this model — 16 inch and 15 inch are excluded. |
| Load rating |
WORK prints no JWL rating on this model's spread. |
| Air valve |
V29K2 (black) |
| Centre cap |
Optional item — not included (see below) |
| Supplied with each wheel |
One air valve (V29K2, black).
WORK notes that the centre cap is an optional item, bought separately.
|
| Wheel weight, WORK's figure |
16×5.5J: from 6.1 kg
16×6.5J: from 6.5 kg
WORK's own bare wheel weight, printed as a "from" figure. Reference only — it is not the shipping weight.
|
| WORK catalogue code |
EMT-KWM |
What you choose on this page
-
width, colour and inset — all three in the variant picker above. Each inset in the picker names its taper shape, the P.C.D.s it can be drilled for and its FLAT TYPE / HIGH TYPE centre-cap clearance.
-
Nothing to specify in the order notes. These are WORK's fixed insets; there is no inset-to-order range on a one-piece wheel, so an inset between two listed figures cannot be built.
-
Quantity — the price shown is for one wheel.
Widths, insets, tapers, clearances and P.C.D.s — 16 inch
Centre caps — optional, not included
WORK supplies these wheels with one air valve (V29K2, black) per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:
- Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
- The clearance figures in the table above are WORK's reference values from the mounting face: F to the FLAT TYPE cap, H to the HIGH TYPE cap. On some hub shapes the cap can still touch even below the figure shown.
- WORK notes that on some vehicles the centre cap cannot be fitted at all.
- WORK also lists select-option air valves in place of the black valve supplied: No.180082 Red: V29R2 at ¥550up each and No.180081 Blue: V29B2 at ¥550up each.
- Ask us and we will add the items you want to the order.
Notes
- Price is per wheel. Built to order by WORK in Japan; allow for production time.
- Each wheel comes with one air valve (V29K2, black). The centre cap is not included — it is an optional item, listed above.
- This is a one-piece wheel. The insets in the table are the fixed insets WORK builds; unlike WORK's two-piece models there is no inset-to-order range and no rim depth to choose — where WORK prints a rim depth it is fixed for that width.
-
Special P.C.D. is not offered at this diameter. WORK prints no 特殊P.C.D. column and no up-charge on the table this size belongs to. It does print one on the table that carries this model's 18 inch and 17 inch sizes, but that is a different table and does not carry over here.
-
16 inch: because of the disc design the disc stands 3 mm proud of the rim flange.
-
Hub height clearance. The F figure (FLAT TYPE cap) and the H figure (HIGH TYPE cap) are WORK's reference values from the mounting face. Even below the figure shown, some vehicle hub shapes can still touch the cap.
- WORK notes that the taper shapes can look slightly different in colour to one another, because the face geometry differs.
-
TPMS. Not available at 16 inch. WORK prints 16/15inch除く on this model — 16 inch and 15 inch are excluded.
-
WORK prints no JWL load rating on this model's spread, so this page states none.
- WORK's printed WEIGHT (Kg) figures quoted above are the bare wheel, as a "from" figure. They are reference values, not the shipping weight of the packed wheel.
- WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
- All yen figures quoted on this page are WORK's own tax-included Japanese list prices.
