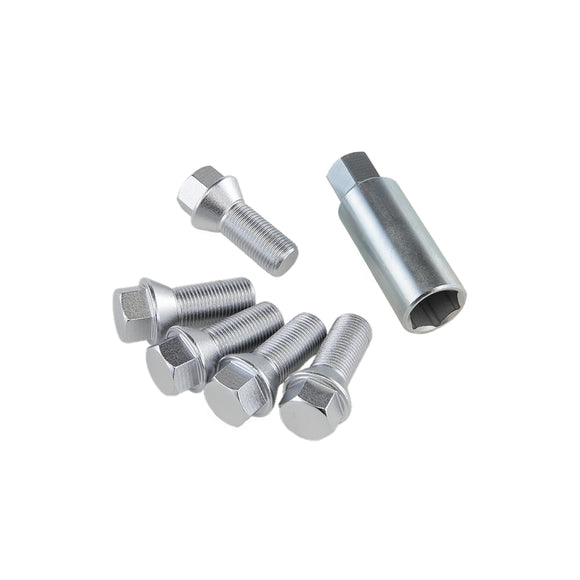

RAYS bolt and adapter sets pair the correct 17HEX bolt with the long adapter for a named vehicle application, so a RAYS wheel bolts to an imported car without swapping to generic hardware. Choose the set number that matches your car and the finish you want.
| CODE |
NO. |
PARTS |
SAMPLE FITMENT |
| 61010000001BK/CP |
No.1 |
17HEX Bolt (Cut L26 M12x1.5), Long Adapter (L70 17/17) |
BMW 3er (E46/E92), M3 (E46/E92) |
| 61010000002BK/CP |
No.2 |
17HEX Bolt (Cut L26 M12x1.5), Long Adapter (L70 17/17) |
BMW MINI R Series (2002-06/2007) |
| 61010000003BK/CP |
No.3 |
17HEX Bolt (L25 M12x1.25), Long Adapter (L70 17/17) |
ABARTH 595, FIAT 500 |
| 61010000004BK/CP |
No.4 |
17HEX Bolt (Cut L26 M14x1.5), Long Adapter (L70 17/17) |
AUDI A3(8V), A4(8K), A5(8T), A6(4G), A7(F2), S3(8V), S4(8E), S5(5), S6(4G, RS3(8V),RS4(8W), RS5(5), R8(42, TT(8J), Q2(GA), Q3(8U), 5(8R).MERCEDES AMG A45(W176/W177), C43(W205), C63(W204), A-CLASS(W176/W177),C-CLASS(W205), E-CLASS(W212/W213), S-CLASS(W223), CLA-CLASS(C118), CLS-CLASS(C257), GLA-CLASS(X156), GLB-CLASS(X247), GLC-CLASS(X253).VW GOLF(5/6/7/8), PASSAT(B8), SCIROCCO(13C), SHARAN(7N), TIGUAN(5N).TOYOTA IS300h(AVE30), IS500(USE30), NX350h(AAZH25), RX450h+(AALH16),RX500h(TALH17), RZ450e(XEB15) |
| 61010000005BK/CP |
No.5 |
17HEX Bolt (Cut L28 M14x1.25), Long Adapter (L70 17/17) |
BMW 1er(F40), 2er Active tourer(F45), 3er(F30/G20), 5er(F10/G30), i8, M135i(F40), M2(F87), M3G80, M4(82/G82), X1(F48), X2(47), X3(G01), Z4(29)BMW MINI F Series |
| 61010000006BK/CP |
No.6 |
17HEX Bolt (Cut L28 M14x1.25), Long Adapter (L70 17/17) |
BMW MINI R Series06/2007-2015 |
| 61010000007BK/CP |
No.7 |
17HEX Bolt (Cut L30 M14x1.5), Long Adapter (L70 17/17) |
VOLVO V60(FB), S60(ZB), XC40(XB), XC60(UD) |
