WORK M.C.O RACING 15 inch, White (WHT), NORMAL rim — WORK factory photo

商品番号: WORK-MCO-1P-15-WHT-6.5-38-5H1143

WORK M.C.O RACING 15 Inch – All Widths and Insets

$295.75 $357.50 保存 $61.75

配送料はチェックアウト時に計算されます

Width: 15×6.5J
Inset: +38 · 5H-114.3 (67)

The WORK M.C.O RACING in 15 inch, built to order in Japan. A one-piece ten-spoke WORK wheel on a NORMAL rim. WORK names the process on its own page for this model — WFT (WORK FLOW FORMING TECHNOLOGY) — and that is all WORK publishes about it, so it is all we say about it.

Competition use and WORK's warranty — read this first

WORK prints, on this model's specification spread: ※for Competitionは競技向けの為、保証対象外となります。 — in plain English, a specification line marked for Competition is for competition use and is outside WORK's warranty. It is the only warranty sentence WORK prints on this spread, and WORK applies it line by line, not size by size.

Two of the four specification lines WORK prints on this page are unambiguously outside WORK's warranty, and two cannot be settled from WORK's own catalogue.

  • Outside WORK's warranty — WORK's label is unambiguous: 15×6.5J at +35 and 15×7.0J at +30. These are competition wheels and WORK does not warrant them.
  • Ambiguous — neither warranted nor unwarranted: 15×6.5J at +38 and 15×7.0J at +35. WORK prints the for Competition label inside a size cell that spans both of that size's inset lines, with no rule, tint or alignment binding it to one line rather than to the size as a whole, and WORK's own gallery captions call the 15-inch wheel for Competition without naming an inset. WORK's catalogue does not make clear whether the competition label covers these two lines. We do not present them as warranted and we do not present them as unwarranted: we confirm the warranty position with WORK in writing before the order, and we will tell you WORK's answer before anything is built or paid for. If you need the answer before you buy, ask us and we will get it first.

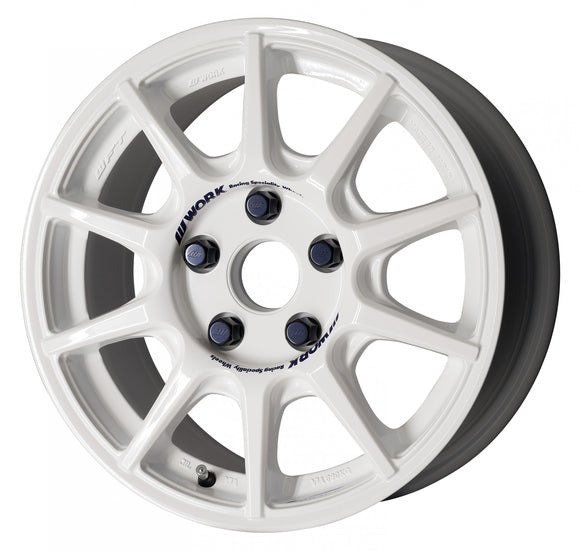

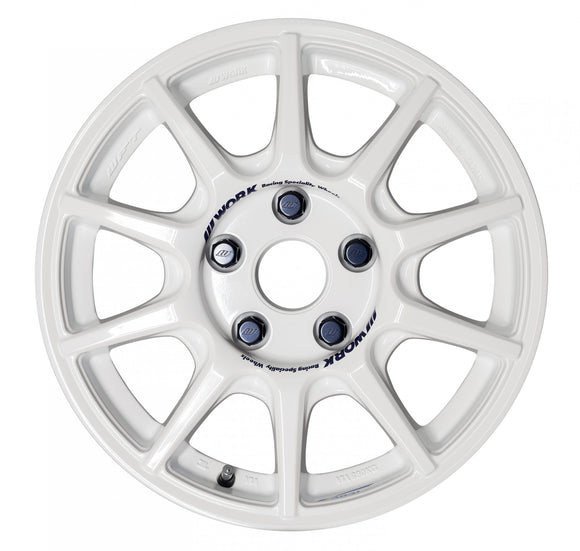

Both photographs on this page are WORK's own, of the 15 inch M.C.O RACING in White (WHT) on a NORMAL rim — the exact size and the only finish this page sells. Nothing is borrowed from another size, and no slide in WORK's gallery for this model is marked (カスタム) / (Custom). WORK's English caption on both of these slides reads WHITE(WHT) for Competition 15inch — it labels the photograph, not an inset line, and WORK's Japanese caption for the same two slides carries no competition wording at all. That caption is part of why the warranty position of two of the four 15-inch lines cannot be settled from WORK's catalogue, and it is not evidence either way about a particular inset. The alt text on these images asserts no warranty position; the table below is where each line's position is stated.

What this page covers

Model WORK M.C.O RACING
Construction 1-piece — WORK: WFT (WORK FLOW FORMING TECHNOLOGY)
Diameter 15 inch
Rim type NORMAL
Colour White (WHT) — the only finish WORK builds this model in, so there is nothing to choose
Widths and insets 15×6.5J at +38, 15×6.5J at +35, 15×7.0J at +35, 15×7.0J at +304 specification lines — exactly the (size, inset) combinations WORK prints at this diameter, never a full grid. They come to 6 orderable specifications, because a line WORK marks in more than one P.C.D. column is sold as one specification per bolt pattern.
P.C.D. (centre bore) 5H-114.3 (67), 4H-100 (60), 5H-100 (56)Per line, not per page — a P.C.D. column existing on WORK's table does not mean every line offers it. The table below binds each P.C.D. to the line WORK marks it on.
Special P.C.D. 4H-98–114.3 or 5H-98–114.3 — WORK prints 同価格: no extra charge. Marked on 15-inch lines only, and WORK's own specification panel agrees (15inchのみ特殊P.C.D.対応。). The table below shows which lines carry it.
WORK's published wheel weight 15×6.5J: from 7.6 kg · 15×7.0J: from 7.8 kgWORK's own WEIGHT (Kg) column, printed with a 〜 meaning "from". This is the weight of the wheel itself, not the packed shipping weight this store charges on.
Load rating WORK prints no JWL rating for this model. There is no JWL sentence anywhere on the spread, at any diameter, so we state none.
Air valve TR412C, one per wheel, included
Centre cap Not included, and not available. See below.
WORK catalogue code MCO-GV

What you choose on this page

  • Width, then inset and bolt pattern — in the pickers above. Pick the width first. Each Inset value names one inset with one P.C.D. and its centre bore, so a line WORK builds in two bolt patterns appears twice, once per pattern — pick the one your car has. The picker does not tell you the warranty position — it cannot, because the same inset and bolt pattern is a competition line at one width and not at another. Read your line off the table below, and the panel at the top of this page, before you order.
  • Colour — not a choice: White (WHT) is the only finish WORK builds. We are not asking you to pick it.
  • A custom inset (ORDER INSET) — not a picker. WORK offers one inside the printed range at no extra charge; tell us the figure in the order notes. See below.
  • Special P.C.D. — not a picker, and at no extra charge on the lines WORK marks. Tell us in the order notes. See the Notes.
  • Quantity — the price shown is for one wheel.

What WORK prints at 15 inch — line by line

Each row below is one orderable specification — one width, one inset, one bolt pattern — and it is the row that carries the warranty position. Where WORK marks a single printed line in two P.C.D. columns, that line appears here once per bolt pattern, which is how it is sold. The P.C.D.s are taken from the ● marks printed on that line and nowhere else: a column existing on WORK's table does not mean the line offers it.

Width Inset P.C.D. (centre bore)
included in the price shown 		Special P.C.D.
WORK prints 同価格 — no extra charge 		WORK's published wheel weight
not the shipping weight 		Competition label / warranty
15×6.5J +38 5H-114.3centre bore 67 mm 4H-98–114.3 or 5H-98–114.3no extra charge from 7.6 kgWORK prints 7.6〜 — the 〜 means "from" Ambiguous — we confirm in writing with WORK before the order. WORK's catalogue does not make clear whether the for Competition label covers this line. We do not present it as warranted and we do not present it as unwarranted.
15×6.5J +38 4H-100centre bore 60 mm 4H-98–114.3 or 5H-98–114.3no extra charge from 7.6 kgWORK prints 7.6〜 — the 〜 means "from" Ambiguous — we confirm in writing with WORK before the order. WORK's catalogue does not make clear whether the for Competition label covers this line. We do not present it as warranted and we do not present it as unwarranted.
15×6.5J +35 5H-100centre bore 56 mm 4H-98–114.3 or 5H-98–114.3no extra charge from 7.6 kgWORK prints 7.6〜 — the 〜 means "from" Outside WORK's warranty. WORK marks this line for Competition.
15×7.0J +35 5H-114.3centre bore 67 mm 5H-98–114.3no extra charge from 7.8 kgWORK prints 7.8〜 — the 〜 means "from" Ambiguous — we confirm in writing with WORK before the order. WORK's catalogue does not make clear whether the for Competition label covers this line. We do not present it as warranted and we do not present it as unwarranted.
15×7.0J +35 5H-100centre bore 56 mm 5H-98–114.3no extra charge from 7.8 kgWORK prints 7.8〜 — the 〜 means "from" Ambiguous — we confirm in writing with WORK before the order. WORK's catalogue does not make clear whether the for Competition label covers this line. We do not present it as warranted and we do not present it as unwarranted.
15×7.0J +30 5H-114.3centre bore 67 mm 5H-98–114.3no extra charge from 7.8 kgWORK prints 7.8〜 — the 〜 means "from" Outside WORK's warranty. WORK marks this line for Competition.

ORDER INSET — a custom inset at no extra charge

WORK heads this column ORDER INSET / PRICE and prints 同価格 under it — a custom inset inside the printed range costs nothing extra. It is printed per size, not per inset line: the cell spans every inset line of that size. This is not a picker — tell us the inset you want in the order notes and we place it with WORK.

15×6.5J +39 to +24 WORK prints this cell as 39 〜 24
15×7.0J +45 to +30 WORK prints this cell as 45 〜 30

What comes with the wheel — and what does not

Included — WORK's own accessories line for this model reads ●付属品：エアバルブ/1個(TR412C)・ステッカー(15/17inchは2枚、18inchは3枚):

  • One air valve, WORK part TR412C, per wheel. Note that this is a TR-series valve, not the V-series valve WORK supplies with its two-piece models.
  • 2 stickers at 15 inch — WORK prints two for 15 and 17 inch and three for 18 inch.

Not included: there is no centre cap. WORK lists no centre cap in the accessories line for this model, and under our accessories rule an item WORK does not list is not included — we say so rather than leaving you to find out. Nor is one available to add: the 対応オプション row of WORK's own specification panel for this model reads 対応なし — no options at all. If a centre cap matters to you, ask us before ordering.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time. WORK's own product page for this model carries no end-of-production notice, so it is in production.
  • Competition use and warranty. WORK prints ※for Competitionは競技向けの為、保証対象外となります。 — a line marked for Competition is for competition use and is outside WORK's warranty. Which lines on this page carry it, and which two WORK's catalogue leaves ambiguous, is set out in the table above and in the panel at the top of this page.
  • The two ambiguous lines are ambiguous in WORK's own catalogue, not in our reading of it. We will not guess in either direction: we put the question to WORK in writing and confirm the warranty position before the order is placed. Ask us and we will get the answer before you buy.
  • WORK publishes a wheel weight for this model — a WEIGHT (Kg) column, printed with a 〜 that means "from". It is the first WORK spread we sell that prints one, and the figures in the table above are WORK's. It is not the shipping weight: what this store charges shipping on is our packed weight, which includes the packaging.
  • Special P.C.D. is free at 15 inch. WORK prints 同価格 over the special-P.C.D. columns — no up-charge, unlike every two-piece WORK model we sell. It is offered on the lines the table above marks and on no others. WORK asks that you check the nuts and bolts you intend to use with a special P.C.D. before ordering (※特殊P.C.D.時、ご使用になるナット、ボルトに関してはお問合せください。) — tell us the car and we will put it to WORK with the order.
  • WORK prints no JWL rating for this model, at any diameter. We state none. Ask us if you need a rating confirmed for registration.
  • TPMS — not compatible. WORK marks TPMS support on the models that have it, in the specification panel on its own product page. WORK does not mark this model, and its catalogue spread prints no TPMS panel, so we do not fit or process TPMS sensors for it. If you need a TPMS-compatible WORK wheel, ask us and we will point you at the models WORK does list.
  • WORK's specification panel for this model lists 特殊P.C.D. as the only custom it supports — and its own 備考 narrows even that to 15 inch (15inchのみ特殊P.C.D.対応。) — with 対応オプション：対応なし, no options. There is no semi-order colour, no rim arrangement and no cap option for this model.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
