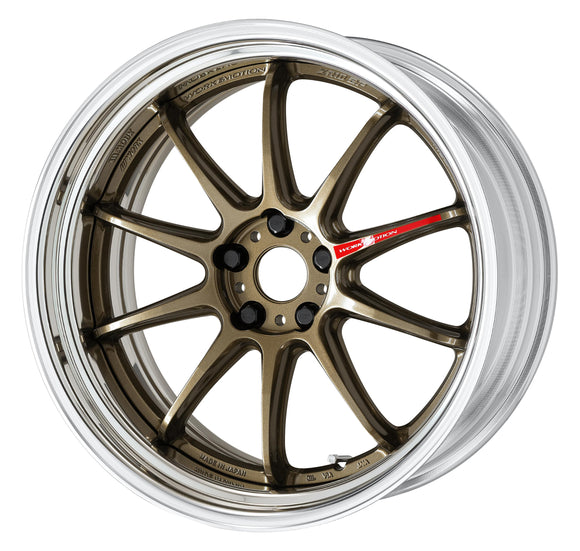

WORK EMOTION ZR10 2P 20 inch STEP RIM, Titanium Bronze (HG), Middle Concave — WORK factory photo

商品番号: WORK-EMZR10-2P-20-HG-8.0-SR-MC

WORK EMOTION ZR10 2P 20 Inch STEP RIM – All Colours, Widths and Concaves

$650.00 $785.71 保存 $135.71

配送料はチェックアウト時に計算されます

Width: 20×8.0J
Colour: Titanium Bronze (HG)
Concave: Middle Concave

The WORK EMOTION ZR10 2P in 20 inch STEP RIM, built to order in Japan. A genuine two-piece WORK wheel: choose the width, the disc colour and the concave shape here, then tell us the disk type and the exact inset you want from WORK's ranges below, and WORK machines the wheel to that spec.

Middle Concave and Deep Concave are the same wheel at the same price — WORK machines the disc to sit deeper or shallower in the rim, which changes the face shape and which insets can be built. Middle Concave: R-Disk (BIG CALIPER), L-Disk (BIG CALIPER) · Deep Concave: A-Disk (STANDARD).

Middle Concave inset ranges · Deep Concave inset ranges

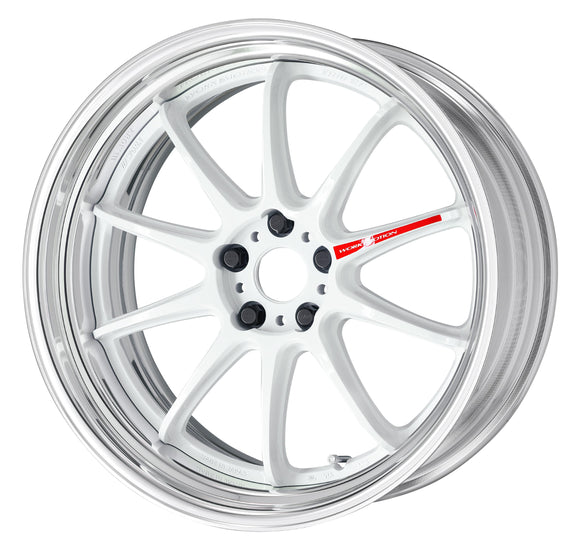

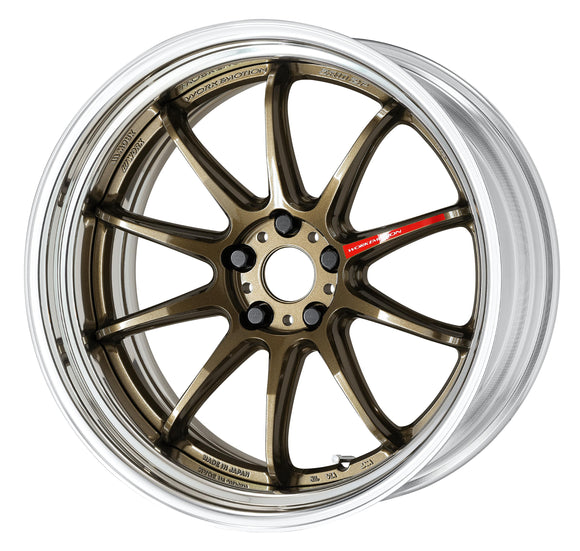

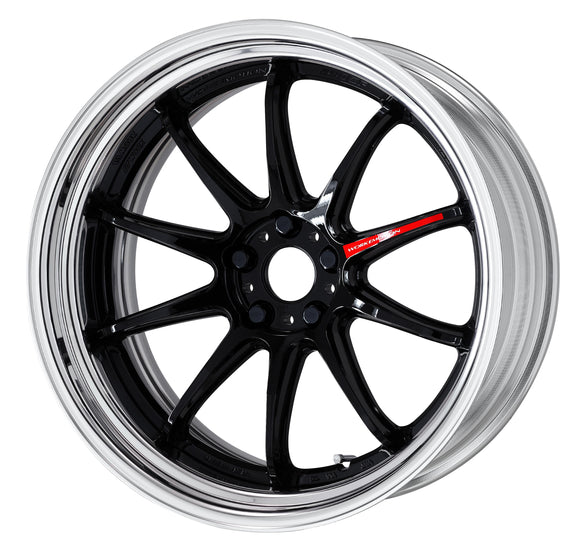

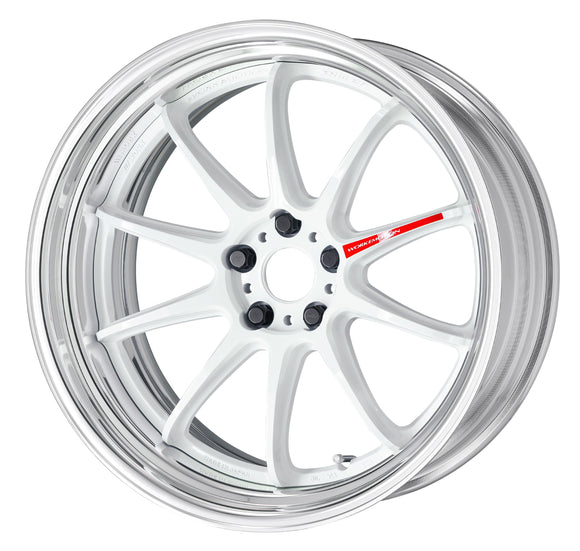

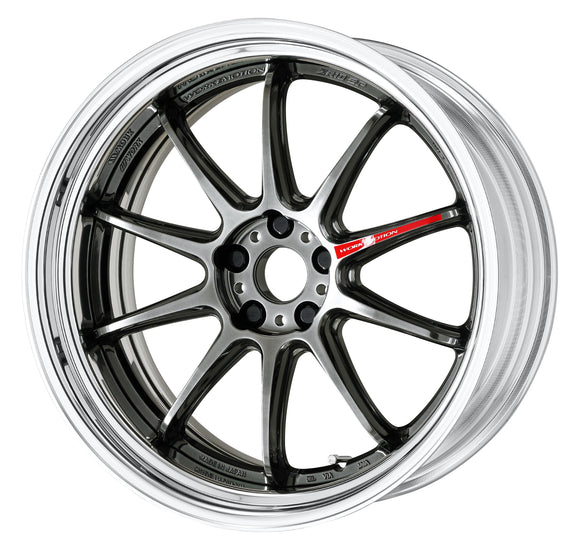

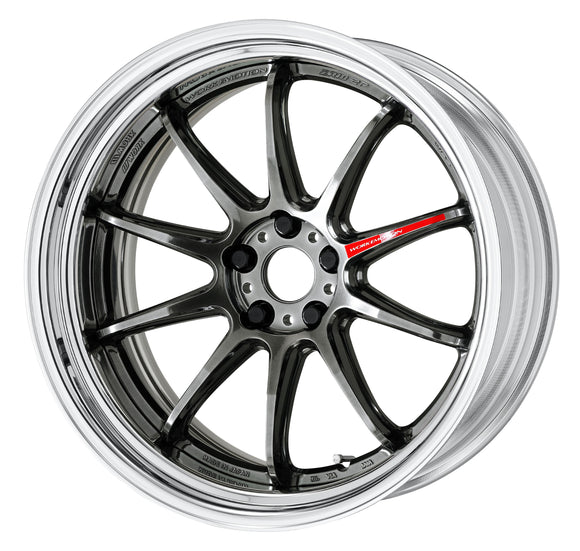

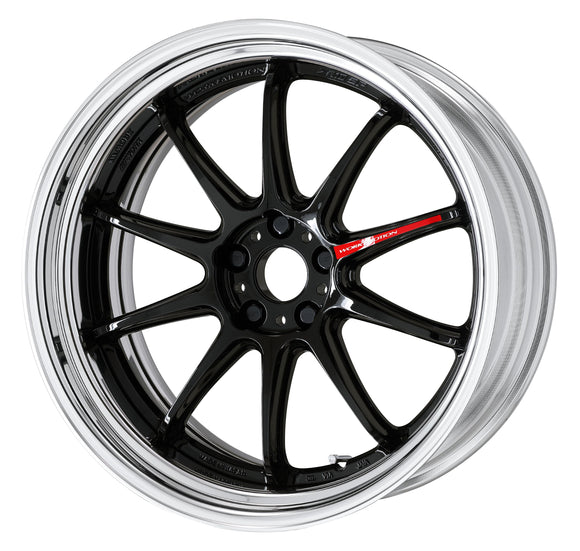

WORK photographs Azure White, Black, Glim Black, Titanium Bronze at this exact size and rim type, in Deep Concave and Middle Concave. Every photo on this page is WORK's own, of this diameter and rim type — none is borrowed from another size.

What this page covers

Model WORK EMOTION ZR10 2P
Construction 2-piece
Diameter 20 inch
Rim type STEP RIM
Disc colours Titanium Bronze (HG), Black (BLK), Azure White (AZW), Glim Black (GTK)
Concave shapes Middle Concave, Deep Concave
Widths 20×8.0J to 20×12.5J (10 widths)
Disk types R-Disk (BIG CALIPER, Middle Concave), L-Disk (BIG CALIPER, Middle Concave), A-Disk (STANDARD, Deep Concave)
P.C.D. R-Disk: 5H-100(60), 5H-114.3(73.3)
L-Disk: 5H-100(60), 5H-114.3(73.3)
A-Disk: 5H-100(60), 5H-114.3(73.3)
Special P.C.D. 5H-98〜120.65 — WORK custom order, from ¥8,800 per wheel (about US$62.86)
Hub height clearance R-Disk: 42 mm with the FLAT TYPE cap, 50 mm with the HIGH TYPE cap
L-Disk: 29 mm with the FLAT TYPE cap, 37 mm with the HIGH TYPE cap
A-Disk: 26 mm with the FLAT TYPE cap, 34 mm with the HIGH TYPE cap
Load rating JWL-P720KG
Air valve V24C
Rim finish Buff anodised (standard)
Centre cap Optional item — not included (see below)
WORK catalogue code EZRSR・HRN

What you choose on this page

  • Width, disc colour and concave shape — in the variant picker above.
  • Disk type and inset — tell us in the order notes, using the ranges below. Any inset inside a range can be built.
  • Quantity — the price shown is for one wheel.

Middle Concave — order inset ranges, 20 inch STEP RIM

Width R-Disk — BIG CALIPER
hub height clearance F 42 mm / H 50 mm · 5H-100(60), 5H-114.3(73.3) 		L-Disk — BIG CALIPER
hub height clearance F 29 mm / H 37 mm · 5H-100(60), 5H-114.3(73.3)
Order inset Order inset
20×8.0J +28 to -3rim depth 47–78 mm +41 to +10rim depth 47–78 mm
20×8.5J +35 to -10rim depth 47–92 mm +48 to +3rim depth 47–92 mm
20×9.0J +41 to -16rim depth 47–104 mm +54 to -3rim depth 47–104 mm
20×9.5J +47 to -22rim depth 47–116 mm +60 to -9rim depth 47–116 mm
20×10.0J +54 to -29rim depth 47–130 mm +67 to -16rim depth 47–130 mm
20×10.5J +60 to -35rim depth 47–142 mm +73 to -22rim depth 47–142 mm
20×11.0J +66 to -41rim depth 47–154 mm +79 to -28rim depth 47–154 mm
20×11.5J +73 to -48rim depth 47–168 mm +85 to -35rim depth 48–168 mm
20×12.0J +74 to -54rim depth 52–180 mm +85 to -41rim depth 54–180 mm
20×12.5J +67 to -60rim depth 65–192 mm +80 to -47rim depth 65–192 mm

Deep Concave — order inset ranges, 20 inch STEP RIM

Width A-Disk — STANDARD
hub height clearance F 26 mm / H 34 mm · 5H-100(60), 5H-114.3(73.3)
Order inset
20×8.0J +28 to -3rim depth 47–78 mm
20×8.5J +35 to -10rim depth 47–92 mm
20×9.0J +41 to -16rim depth 47–104 mm
20×9.5J +47 to -22rim depth 47–116 mm
20×10.0J +54 to -29rim depth 47–130 mm
20×10.5J +60 to -35rim depth 47–142 mm
20×11.0J +66 to -41rim depth 47–154 mm
20×11.5J +73 to -48rim depth 47–168 mm
20×12.0J +74 to -54rim depth 52–180 mm
20×12.5J +67 to -60rim depth 65–192 mm

Centre caps — optional, not included

WORK supplies these wheels with one air valve and one red sport decal per wheel. The centre cap is an optional item and is bought separately, one per wheel. WORK's own part numbers and list prices, tax included:

WORK part no. Centre cap WORK list price
No.120273 FLAT TYPE Black / Red ring ¥4,950 each
No.120179 FLAT TYPE Silver ¥3,850 each
No.120180 HIGH TYPE Silver ¥3,850 each
No.120186 FLAT TYPE Black ¥3,850 each
No.120187 HIGH TYPE Black ¥3,850 each
No.120219 FLAT TYPE Red ¥3,850 each
No.120220 HIGH TYPE Red ¥3,850 each
No.120250 FLAT TYPE Blue ¥3,850 each
No.120251 HIGH TYPE Blue ¥3,850 each
No.120235 FLAT TYPE W Black ¥3,850 each
No.120279 FLAT TYPE W Black / Navy ring ¥4,950 each
  • Black / Red ring, W Black and W Black / Navy ring are made in FLAT TYPE only.
  • The hub height clearance table above gives the F figure for the FLAT TYPE cap and the H figure for the HIGH TYPE cap. Those are reference values from the mounting face; on some hub shapes the cap can still touch even below the figure shown.
  • WORK notes that on some vehicles the centre cap cannot be fitted at all.
  • Ask us and we will add the caps you want to the order.

Notes

  • Price is per wheel. Built to order by WORK in Japan; allow for production time.
  • Each wheel comes with one air valve (V24C) and one red WORK sport decal. The centre cap is not included — it is an optional item, listed above.
  • A buff-anodised rim is the standard finish.
  • Middle Concave: below 50 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • Middle Concave: below 57 mm of rim depth the disc sits proud of the rim mating face.
  • Deep Concave: below 49 mm of rim depth the disc sits proud of the rim flange. WORK adds that even above that depth the disc may still protrude very slightly past the rim flange, within tolerance.
  • Deep Concave: below 57 mm of rim depth the disc sits proud of the rim mating face.
  • WORK notes that the two concave shapes can look slightly different in colour, because the face geometry differs.
  • Rated JWL-P720KG (Japanese passenger-car standard).
  • Special P.C.D. 5H-98〜120.65 is available as a WORK custom order, from ¥8,800 per wheel on top of the listed price. The yen figure is WORK's; we confirm the converted amount on quotation.
  • If you order a special P.C.D., please ask us about the nuts or bolts you intend to use.
  • The standard 5H-114.3 P.C.D. takes M14 mounting bolts, with 60° taper seats.
  • TPMS is supported on this size. WORK does not offer it on 18×8.0J and narrower.
  • WORK notes that some specifications take longer to produce, and that a build may not be possible under certain production conditions.
  • Optional black air valve, ¥550 per wheel on top of the listed price.
